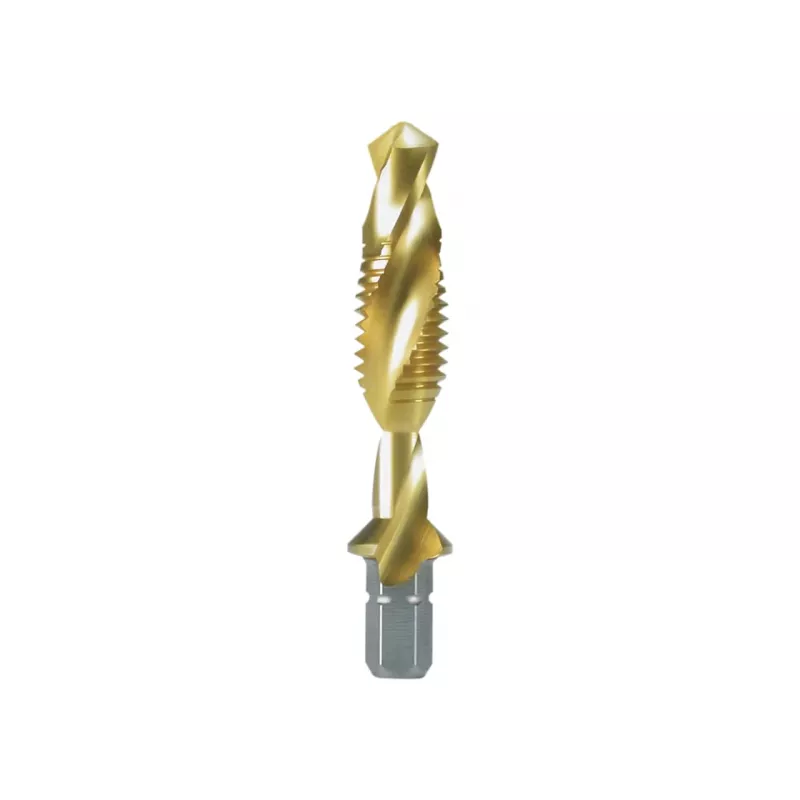

RUKO KGB-bit-HSS-TiN-60°-M10x1,50mm-S machinegetaptap

Machine tap with spiral point for through holes, featuring a titanium nitride coating for enhanced wear resistance and a metric ISO thread M10 with 1.50 mm pitch.

Advantages

Ground flutes and profile ensure precise thread cutting. TiN coating reduces friction and extends tool life. Reinforced shank provides stability during operation.

Suitable for

• Steels up to 800 N/mm²
• Stainless steels
• Cast iron
• Non-ferrous metals

Key specifications

• Thread size: M10
• Thread pitch: 1.50 mm
• Thread angle: 60°
• Material: High-speed steel (HSS-G)
• Coating: Titanium nitride (TiN)
• Standard: DIN 371
• Tolerance class: ISO 2 (6H)
• Shank diameter: 7.0 mm
• Square drive size: 5.5 mm
• Overall length: 100 mm
• Thread length: 20.0 mm
• Cutting direction: Right-hand
• Flute type: Spiral point
• Application: Through holes

Recommendations

Use with coolant for optimal performance and tool life.
