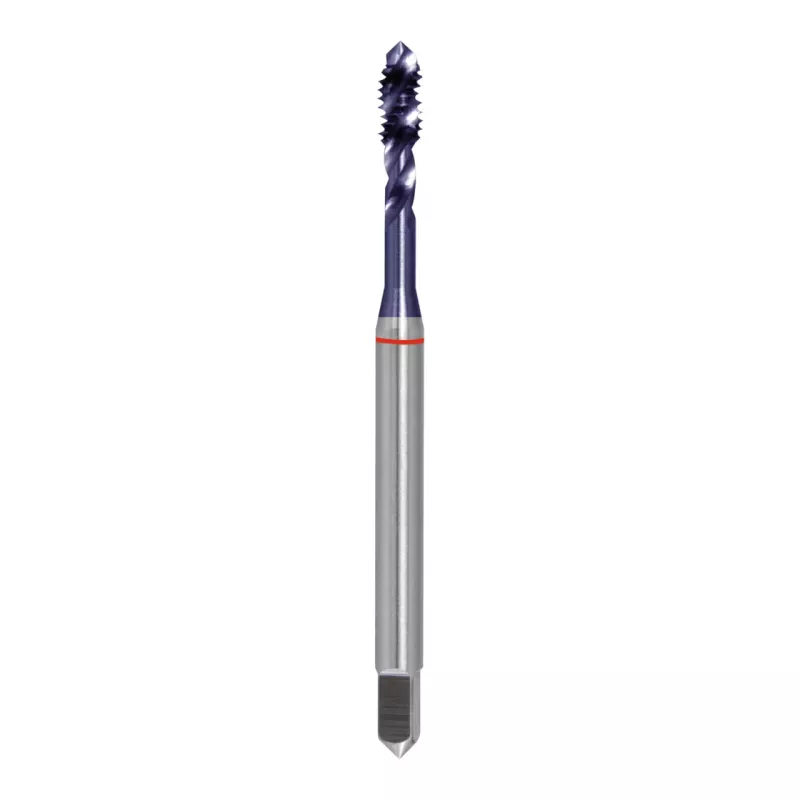

RUKO MGB-DIN371-HSS-TiAlN-60°-M8x1,25mm machinegetaptap

Cutting precise M8x1.25 metric threads in tough materials demands a tap that resists wear and maintains accuracy. The RUKO MGB-DIN371-HSS-TiAlN-60°-M8x1.25mm machine tap solves this with a cobalt-enriched high-speed steel body and a TiAlN coating that reduces friction and heat.

Who is it for

Machinists and metalworkers who need reliable thread production in steels up to 900 N/mm², whether for through holes or blind holes in production environments.

Main features

• DIN 371 standard for machine taps with reinforced shank
• HSS-E (cobalt alloyed) for high hardness and heat resistance
• TiAlN coating for extended tool life and dry machining capability
• Metric ISO coarse thread M8 x 1.25 mm, 60° thread angle
• Form C chamfer (2-3 threads) for general purpose threading
• Straight flutes with 3 flutes for efficient chip evacuation
• Ground thread for precise thread geometry and tolerance class ISO 2 (6H)

Specifications

• Product type: Machine tap
• Standard: DIN 371
• Material: HSS-E
• Coating: TiAlN
• Thread type: Metric ISO coarse
• Nominal diameter: M8
• Pitch: 1.25 mm
• Thread angle: 60°
• Tolerance class: ISO 2 (6H)
• Chamfer form: Form C (2-3 threads)
• Overall length: 90 mm
• Thread length: 22 mm
• Shank diameter: 8.0 mm
• Square drive: 6.2 mm
• Number of flutes: 3
• Flute type: Straight
• Recommended material hardness: up to 900 N/mm²
• Manufacturing process: Ground thread

Tips

Use appropriate cutting oil or coolant for best results. For blind holes, ensure sufficient chip clearance. Match the tap drill size to 6.8 mm for M8x1.25 threads.
