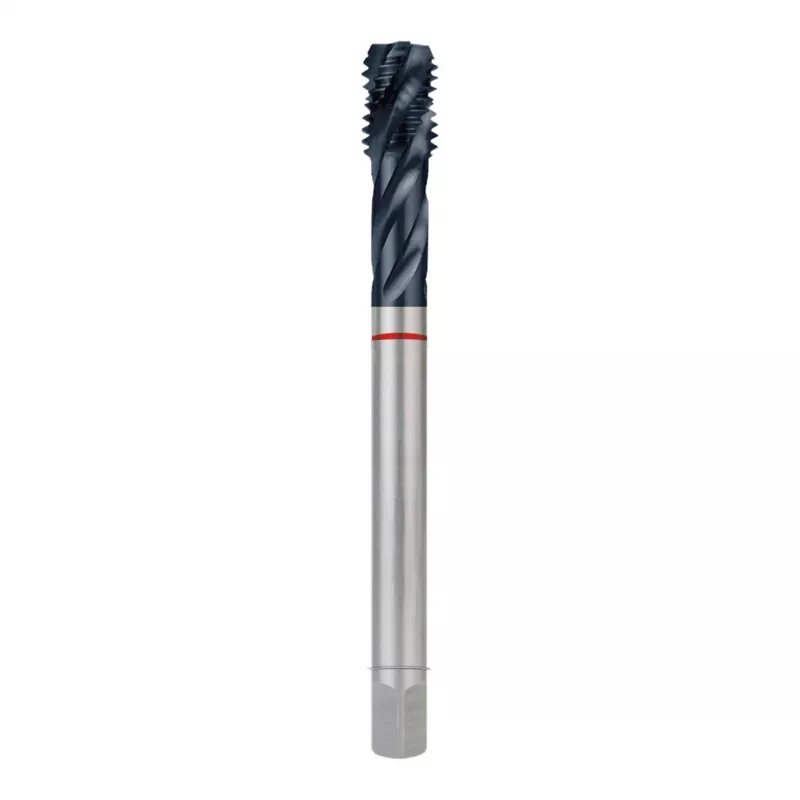

RUKO MGB-DIN376-HSSCo-TiAlN-60°-M-6x1,00 machinegetaptap

Machine tap for metric coarse threads, engineered for through-hole tapping in high-strength materials up to 1200 N/mm². The TiAlN coating reduces friction and heat, extending tool life in demanding production environments.

Advantages

HSS-Co base material with cobalt content provides high hot hardness and wear resistance. TiAlN coating offers excellent oxidation resistance and low friction, enabling higher cutting speeds and dry machining. Form C chamfer (2-3 threads) ensures reliable thread start and chip evacuation in through holes. Straight flutes with right-hand cutting direction suit conventional machine tapping.

Suitable for

• Steel
• Stainless steel
• Cast iron
• Non-ferrous metals

Key specifications

• Thread size: M6
• Thread pitch: 1.00 mm
• Standard: DIN 376
• Tolerance class: ISO 2 (6H)
• Chamfer form: Form C (2-3 threads)
• Cutting direction: Right-hand
• Flute type: Straight flute
• Total length: 66 mm
• Thread length: 19 mm
• Shank diameter: 6.0 mm
• Square drive: 4.9 mm
• Thread angle: 60°

Recommendations

Use with suitable cutting oil or emulsion for optimal results. Select appropriate cutting speed based on material group and machine capability.
