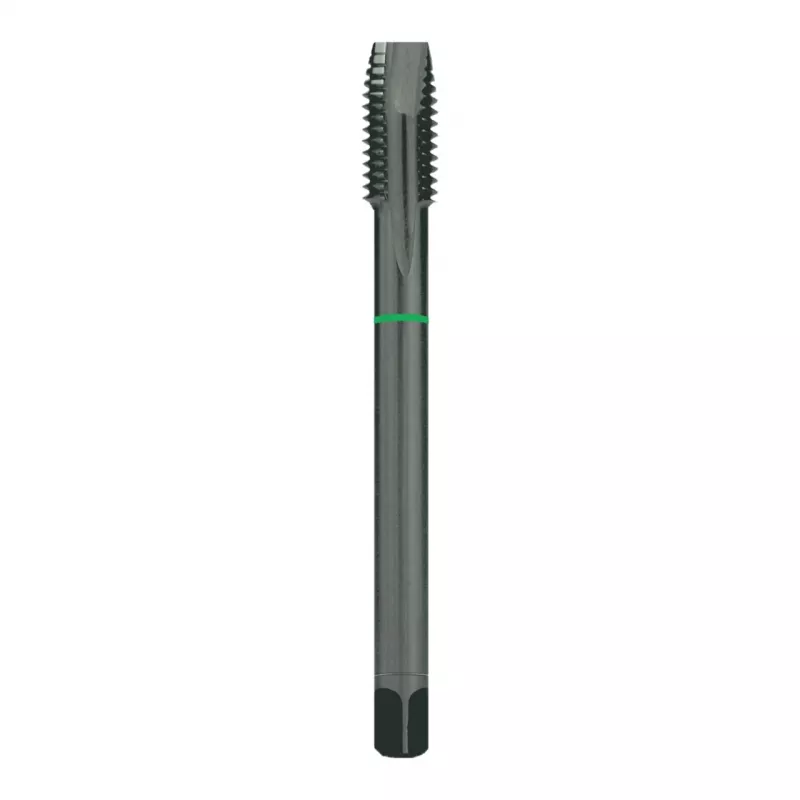

RUKO MGB-DIN376-HSSCo-vap.-M18x2,50mm machine-tap

Machine tap for metric coarse threads M18x2.50, manufactured from high-speed steel with cobalt (HSS-Co) and vapourised surface treatment. The reinforced shank and straight flutes ensure reliable chip evacuation in through and blind holes.

Advantages

Vapourised surface reduces friction and improves chip flow. HSS-Co provides high wear resistance and heat resistance for demanding materials. Tolerance class ISO 2 (6H) ensures precise thread dimensions.

Suitable for

• Steel
• Stainless steel
• Cast iron
• Non-ferrous metals

Key specifications

• Thread size: M18
• Pitch: 2.50 mm
• Standard: DIN 376
• Material: HSS-Co
• Surface treatment: Vapourised
• Total length: 110 mm
• Thread length: 35 mm
• Shank diameter: 14 mm
• Square drive size: 11 mm
• Number of flutes: 4
• Flute geometry: Straight
• Cutting direction: Right-hand
• Shank form: Reinforced

Recommendations

Use with suitable cutting fluid for optimal tool life. For blind holes, ensure sufficient chip space.
