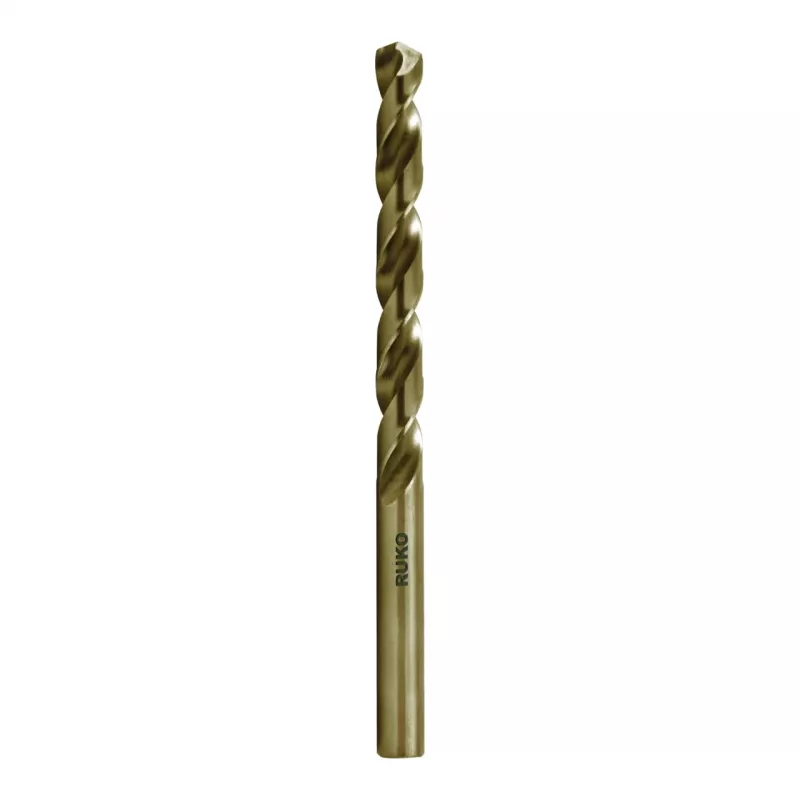

RUKO SPB-DIN338 10,0mm HSS-Co spiraalboor

Twist drill bit with 10.0 mm diameter, precision ground from solid HSS-Co (M35) for high heat resistance. Self-centering split point and Type N flute ensure accurate drilling in alloyed and unalloyed steel, stainless steel, cast iron, and non-ferrous metals.

Advantages

High cobalt content (5%) provides superior hardness and heat resistance. Split point geometry reduces walking and enables precise hole positioning. Bright/vapourised surface treatment improves chip evacuation and reduces friction.

Suitable for

• Alloyed and unalloyed steel
• Stainless steel
• Cast iron
• Non-ferrous metals

Key specifications

• Diameter: 10.0 mm
• Total length: 133 mm
• Working length: 87 mm
• Shank type: Cylindrical, 10.0 mm
• Point angle: 135°
• Point grind: Split point (cross-ground)
• Flute type: Type N (normal helix)
• Cutting direction: Right-hand
• Tolerance: h8
• Standard: DIN 338

Recommendations

Use with suitable cutting fluid for stainless steel and high-alloy steels. Ensure proper clamping and correct speed/feed for 10 mm diameter.
