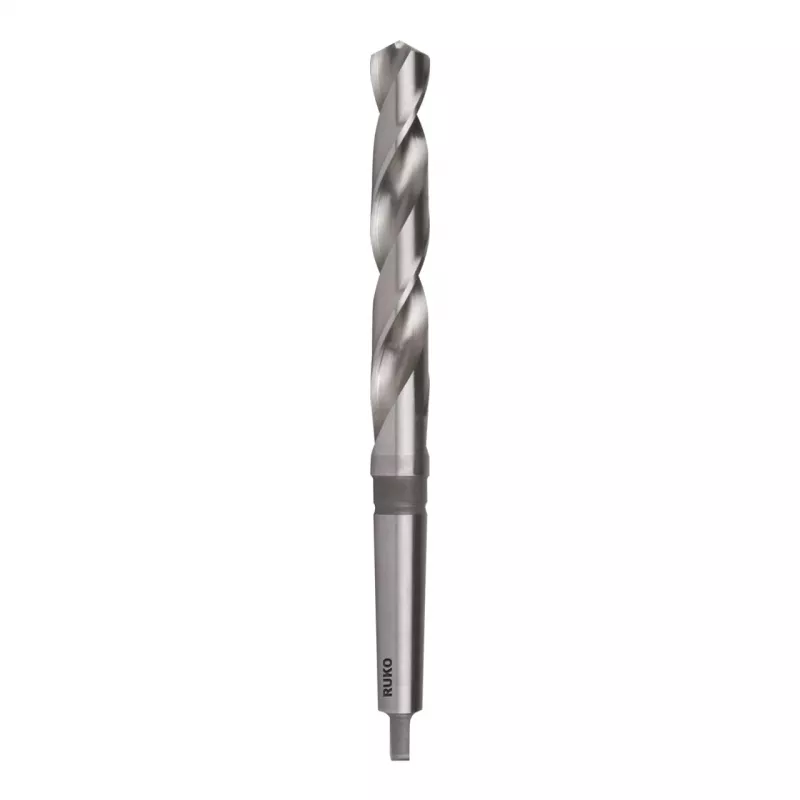

RUKO SPB-DIN345-HSSCo-Ø13,5mm spiraalboor met morseconusschacht

This RUKO twist drill bit stands out with its Morse taper shank and 5% cobalt high-speed steel construction, delivering high heat resistance and durability for demanding drilling in alloyed and unalloyed steel, cast iron, non-ferrous metals, plastics, and harder materials up to 1100 N/mm².

Highlights

• Diameter: 13.5 mm
• Morse taper shank size MT2 for secure tool holding
• Fully ground HSS-Co with 5% cobalt for high wear resistance
• Split point with 135° point angle for precise centering and reduced thrust
• Bright polished surface for chip evacuation and corrosion resistance
• Conforms to DIN 345 standard

In daily use

Engineered for industrial applications, this drill bit offers a right-hand cutting direction and a flute length of 110 mm, with an overall length of 205 mm. The h8 tolerance ensures consistent hole quality, and coolant is recommended for optimal performance and tool life.

Full specifications

• Drill bit type: Twist drill bit
• Standard: DIN 345
• Material: HSS-Co (5% cobalt)
• Diameter: 13.5 mm
• Overall length: 205 mm
• Flute length: 110 mm
• Point angle: 135°
• Point type: Split point
• Surface finish: Bright / polished
• Shank type: Morse taper shank (MT2)
• Cutting direction: Right-hand cut
• Manufacturing process: Fully ground
• Tolerance: h8
• Recommended material hardness: Up to 1100 N/mm²
• Coolant recommendation: Yes
• Packaging: Single drill bit

Final note

A reliable choice for professionals needing precision and longevity in tough materials.
