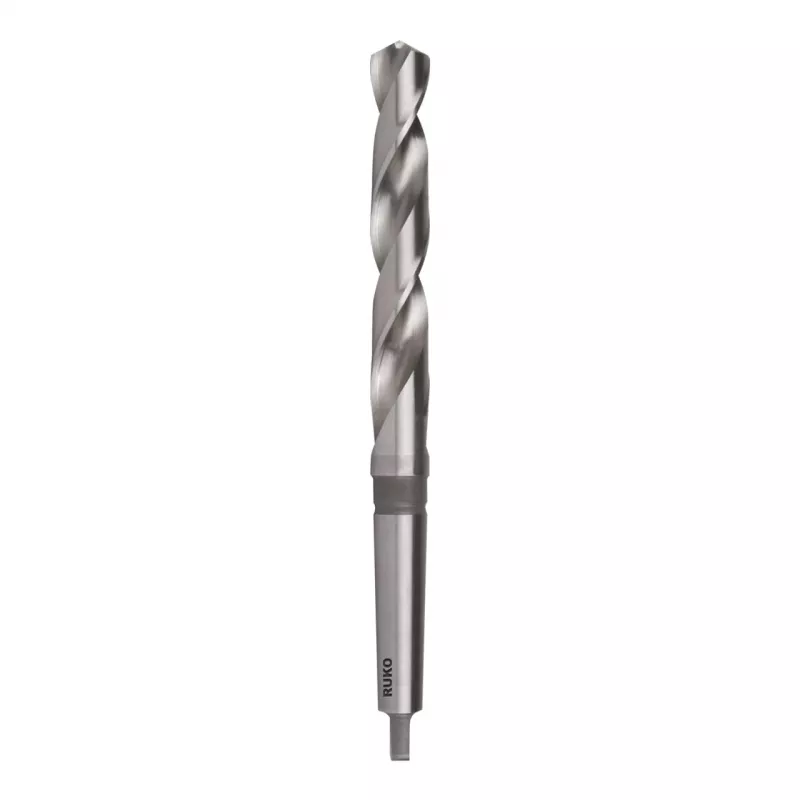

RUKO SPB-DIN345-HSSCo-Ø14,5mm morseconus-spiraalboor HSS-Co 5% cobalt

Precision-ground from solid HSS-Co with 5% cobalt, this 14.5 mm twist drill bit delivers high heat resistance and durability for demanding metalworking tasks. Its Morse Taper Shank (MT2) ensures secure, concentric mounting in machine spindles, while the bright finish and h8 tolerance guarantee accurate holes in steel, cast steel, alloyed and non-alloyed materials, cast iron, non-ferrous metals, and plastics.

Overview

Engineered to DIN 345, this right-hand cutting drill bit features a 118° point angle and a flute length of 120 mm, with an overall length of 198 mm. The Morse taper shank provides a self-locking fit that transmits high torque without slipping, making it ideal for production drilling and heavy-duty applications.

What stands out

• 5% cobalt alloyed HSS for superior hot hardness and wear resistance
• Ground from solid for precise geometry and smooth chip evacuation
• Morse Taper Shank MT2 for quick, rigid tool changes
• Bright surface finish reduces friction and resists corrosion
• h8 tolerance ensures consistent hole sizing

Technical details

• Drill Bit Type: Twist Drill Bit
• Shank Type: Morse Taper Shank (MT2)
• Standard: DIN 345
• Material: HSS-Co (High-Speed Steel with Cobalt)
• Cobalt Content: 5%
• Diameter: 14.5 mm
• Total Length (l1): 198 mm
• Flute Length (l2): 120 mm
• Point Angle: 118°
• Cutting Direction: Right-hand cutting
• Surface Finish: Bright
• Tolerance: h8
• Manufacturing Process: Ground from solid
• Recommended Application: Steel, Cast Steel, Alloyed & Non-alloyed Materials, Cast Iron, Non-ferrous Metals, Plastics
• Heat Resistance: High
• Durability: High
• Packaging Type: Individual

Our verdict

A professional-grade cobalt drill bit that combines precision grinding with a robust Morse taper shank, delivering reliable performance in tough materials.
