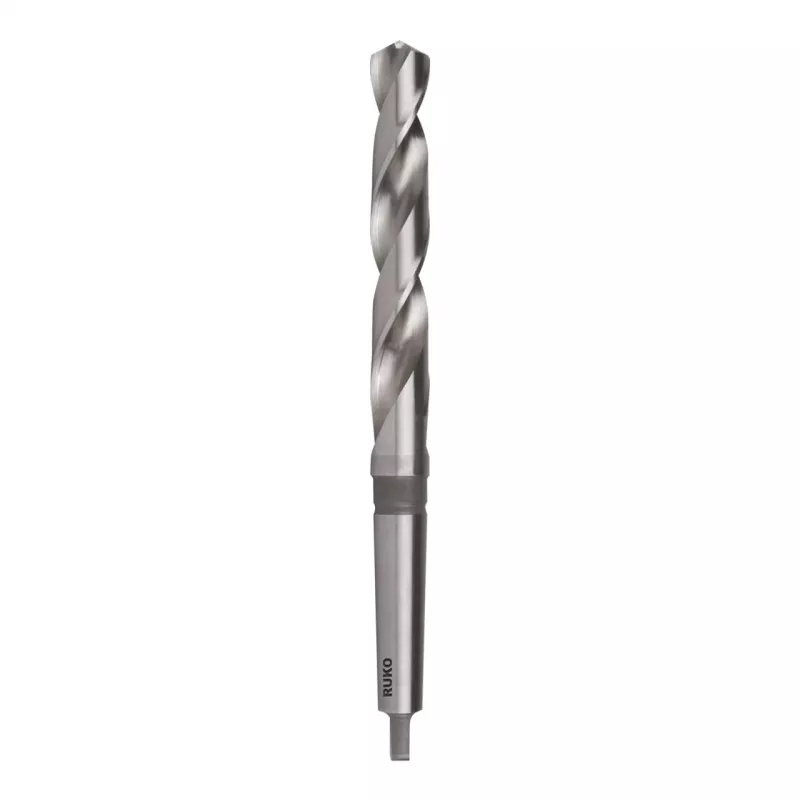

RUKO SPB-DIN345-HSSCo-Ø18,0mm spiraalboor met morseconusschacht

Precision-ground 18.0 mm HSS-Co twist drill bit with Morse Taper Shank MT2, engineered for high-performance drilling in tough materials. The 5% cobalt alloy delivers exceptional heat and wear resistance, maintaining hardness even at elevated temperatures.

Overview

The RUKO SPB-DIN345-HSSCo-Ø18.0mm is a fully ground, right-hand cutting twist drill bit conforming to DIN 345 standards. With a diameter of 18.0 mm, overall length of 205 mm, and cutting length of 125 mm, it offers a robust solution for industrial drilling tasks. The bright, uncoated surface and h8 tolerance ensure consistent performance and precise hole sizing.

What stands out

• 5% cobalt HSS for superior heat resistance and extended tool life
• Morse Taper Shank MT2 for secure, high-torque mounting in machine spindles
• 118° point angle and spiral flute design for efficient chip evacuation
• Fully ground manufacturing process ensures sharp, accurate cutting edges
• Versatile across steel, cast iron, non-ferrous metals, and plastics

Technical details

• Drill Bit Type: Twist Drill Bit
• Shank Type: Morse Taper Shank MT2
• Standard: DIN 345
• Material: HSS-Co (High-Speed Steel with Cobalt)
• Cobalt Content: 5%
• Diameter: 18.0 mm
• Overall Length: 205 mm
• Cutting Length: 125 mm
• Point Angle: 118°
• Cutting Direction: Right-hand cut
• Surface Finish: Bright / Uncoated
• Manufacturing Process: Fully Ground
• Tolerance: h8
• Flute Type: Spiral Flute
• Suitable Materials: Steel, Cast Steel, Alloyed & Non-alloyed Materials, Cast Iron, Non-ferrous Metals, Plastics

Our verdict

A professional-grade drill bit that excels in demanding applications, offering precision, durability, and versatility for industrial users.
