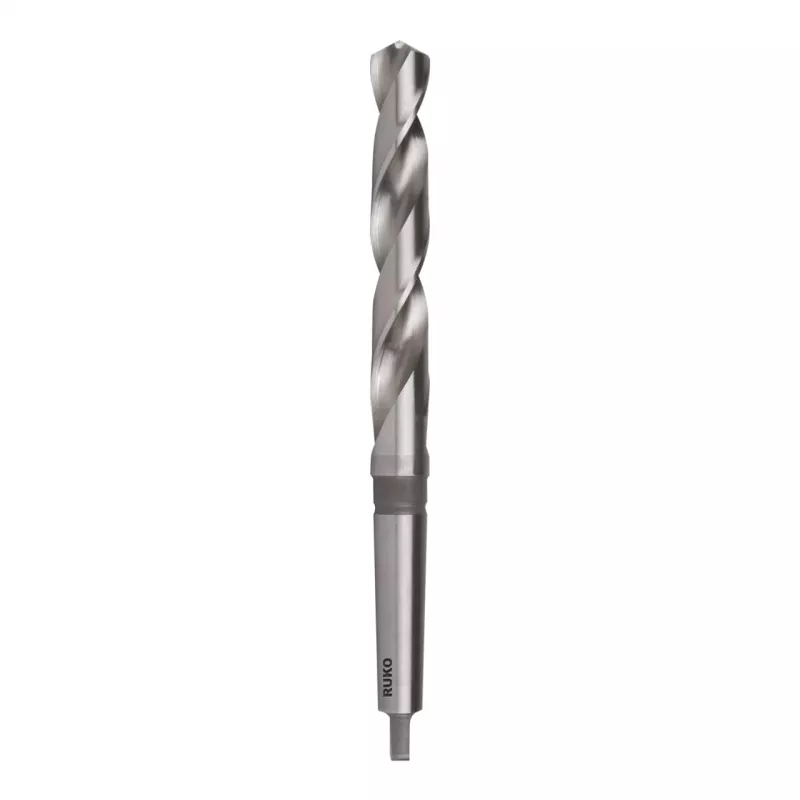

RUKO SPB-DIN345-HSSCo-Ø22,5mm morseconus spiraalboor

Drilling large-diameter holes in tough steels demands a drill bit that stays sharp and stable under high heat and pressure. The RUKO SPB-DIN345-HSSCo-Ø22.5mm Morse Taper Shank Drill Bit solves this with a solid cobalt-alloyed HSS body, precision-ground flutes, and a Morse taper shank that locks securely into the machine spindle for accurate, vibration-free drilling.

Who is it for

Machinists, metalworkers, and maintenance professionals who regularly drill alloyed and unalloyed steels, cast iron, non-ferrous metals, and plastics. It is ideal for use on pillar drills, radial drills, and lathes equipped with an MK2 Morse taper socket.

Main features

• Diameter: 22.5 mm with h8 tolerance for precise hole sizing
• Morse taper shank MK2 (MT2) for direct mounting without a chuck
• Made from HSS-Co (5% cobalt) for high heat resistance and long tool life
• DIN 345 standard geometry with 130° point angle and right-hand cut
• Ground from solid with bright finish for clean, accurate cutting edges
• Overall length 243 mm, cutting length 130 mm

Specifications

• Drill bit type: Morse taper shank drill bit
• Material: HSS-Co (high-speed steel with cobalt)
• Standard: DIN 345
• Diameter: 22.5 mm
• Morse taper size: MK2
• Overall length: 243 mm
• Cutting length: 130 mm
• Point angle: 130°
• Tolerance: h8
• Number of flutes: 2
• Direction of cut: Right-hand
• Cobalt content: 5%
• Surface finish: Bright
• Application: Alloyed and unalloyed steels, cast iron, non-ferrous metals, plastics
• Tensile strength compatibility: up to 1100 N/mm²

Tips

Use a suitable cutting fluid to extend tool life when drilling steel. Ensure the Morse taper socket is clean and free of burrs before mounting. For best results, pre-drill with a smaller diameter bit when working on hard materials.
