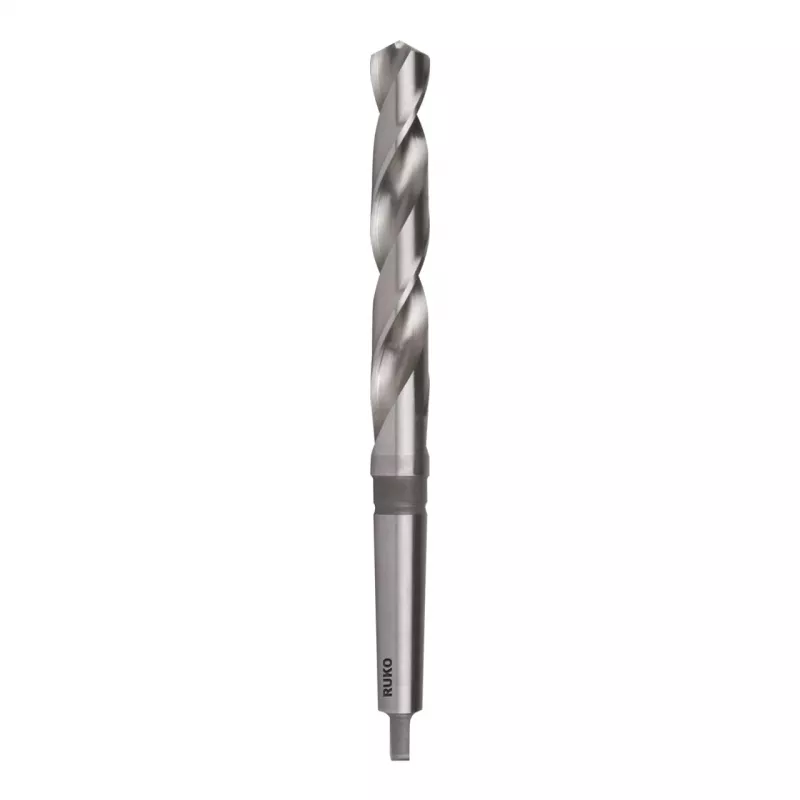

RUKO SPB-DIN345-HSSCo Ø24,0 mm spiraalboor met morseconus

For demanding drilling in tough materials, this RUKO twist drill bit combines a 5% cobalt high-speed steel body with a robust Morse taper shank, delivering high heat resistance and reliable performance in steel, cast iron, and stainless steel.

Highlights

• Precision ground from HSS-Co (5% cobalt) for high heat resistance and durability
• Morse taper shank (MT3) ensures secure, slip-free mounting in machine spindles
• DIN 345 standard with right-hand cutting and 130° point angle for efficient chip removal
• Bright surface finish and h8 tolerance for consistent, accurate holes

In daily use

Designed for general-purpose drilling in steel, cast iron, non-ferrous metals, and stainless steel, this bit excels in production environments where precision and longevity are critical. The 24.0 mm diameter and 165 mm cutting length allow deep hole drilling, while the normal helix angle balances chip evacuation and cutting force.

Full specifications

• Drill bit type: Twist drill bit
• Standard: DIN 345
• Material: HSS-Co (5% cobalt)
• Diameter: 24.0 mm
• Shank type: Morse taper shank (MT3)
• Total length: 285 mm
• Cutting length: 165 mm
• Point angle: 130°
• Cutting direction: Right-hand cut
• Surface finish: Bright
• Tolerance: h8
• Number of flutes: 2
• Helix angle: Normal helix
• Heat resistance: High
• Application: Steel, cast iron, non-ferrous metals, stainless steel

Final note

A professional-grade tool for machinists who demand accuracy and endurance from their cutting tools.
