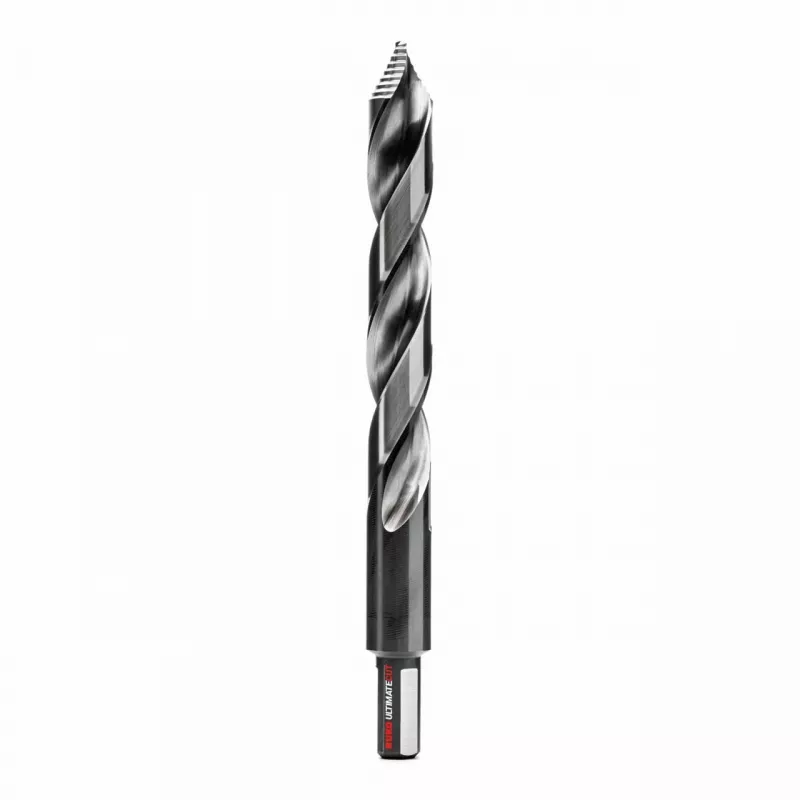

RUKO SPB-FLS-DIN338-HSS-G-Ø20,0 mm-3FLS-puntenspiraalboor

This twist drill bit features a split point and three flutes, distinguishing it from conventional two-flute designs. The split point reduces walking and improves centring accuracy, while the third flute enhances chip evacuation and stability during drilling. Manufactured from high-speed steel (HSS-G) and ground to DIN 338 specifications, it delivers reliable performance in general-purpose drilling tasks.

Highlights

• Split point tip for precise starting without centre punching
• Three flutes for efficient chip removal and reduced clogging
• Ground from high-speed steel (HSS-G) for durability
• Conforms to DIN 338 for consistent dimensions and quality
• Suitable for steel, cast iron, non-ferrous metals, and plastics

In daily use

The 20.0 mm diameter and cylindrical shank fit standard drill chucks. The 118° point angle is suited for general-purpose drilling in a range of materials. The bright finish reduces friction and helps prevent chip adhesion. With a total length of 205 mm and a working length of 130 mm, it provides adequate reach for many applications.

Full specifications

• Drill bit type: Twist drill bit
• Material: High-speed steel (HSS-G)
• Standard: DIN 338
• Diameter: 20.0 mm
• Number of flutes: 3
• Shank type: Cylindrical
• Point type: Split point
• Point angle: 118°
• Helix angle: Standard (25-30°)
• Surface finish: Bright / Ground
• Application: General purpose drilling
• Suitable materials: Steel, cast iron, non-ferrous metals, plastics
• Manufacturing process: Ground flutes
• Tolerance: h8
• Total length: 205 mm
• Working length: 130 mm

Final note

A practical choice for workshops needing a large-diameter drill bit with improved chip evacuation and accurate starting.
