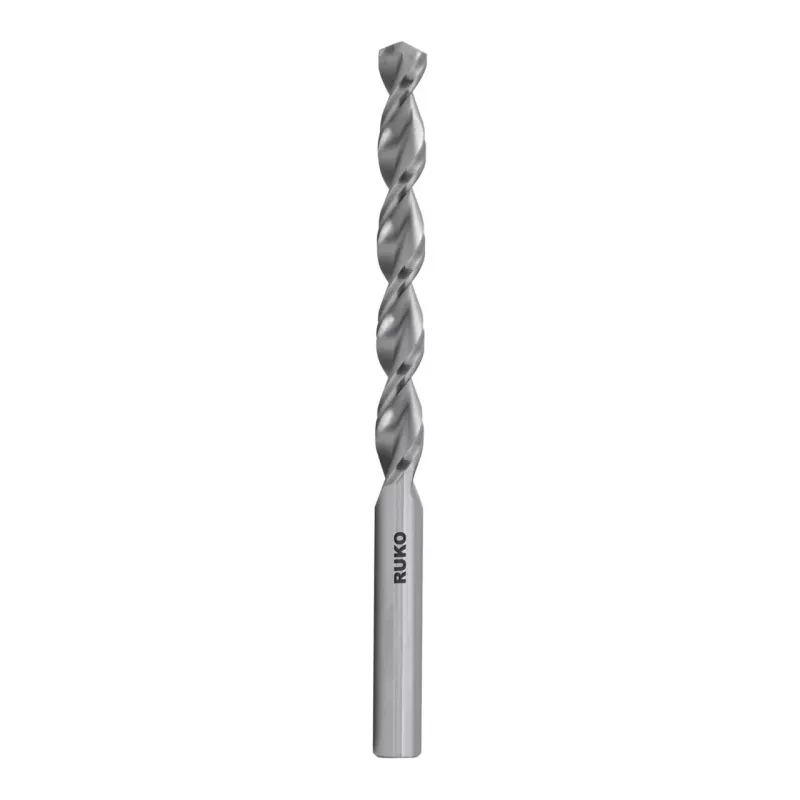

RUKO SPB-TL3000 11,5 mm DIN 338 HSS-G spiraalboor

Drilling precise holes in steel, cast iron, non-ferrous metals, plastics, and wood requires a drill bit that stays sharp and cuts cleanly. The RUKO SPB-TL3000 11.5 mm twist drill bit is fully ground from high-speed steel (HSS-G) to DIN 338, delivering reliable performance for general-purpose drilling tasks.

Who is it for

This drill bit is ideal for metalworkers, machinists, and serious DIYers who need a durable, accurate bit for everyday drilling in a range of materials. Its 11.5 mm diameter suits applications requiring a mid-size hole, such as clearance holes for M12 bolts or pilot holes for larger diameters.

Main features

• High-speed steel (HSS-G) construction for long life and heat resistance
• Fully ground flutes and point for smooth chip evacuation and accurate starting
• DIN 338 standard dimensions: 142 mm total length, 101 mm working length
• 118° point angle optimized for general-purpose use in steel and other metals
• Bright (uncoated) finish reduces friction and is suitable for a variety of materials
• Cylindrical shank with h8 tolerance for secure chuck grip

Specifications

• Drill bit type: Twist drill bit
• Material: High-speed steel (HSS-G)
• Standard: DIN 338
• Diameter: 11.5 mm
• Total length: 142 mm
• Working length: 101 mm
• Shank type: Cylindrical
• Shank diameter: 11.5 mm
• Point angle: 118°
• Manufacturing process: Fully ground
• Surface finish: Bright (uncoated)
• Cutting direction: Right-hand cutting
• Tolerance: h8
• Flute type: Standard spiral flute
• Recommended materials: Steel, cast iron, non-ferrous metals, plastics, wood
• Application: General purpose drilling

Tips

Use cutting fluid when drilling steel or cast iron to extend bit life and improve hole quality. For plastics and wood, reduce speed to prevent melting or burning. Always secure the workpiece and wear appropriate eye protection.
