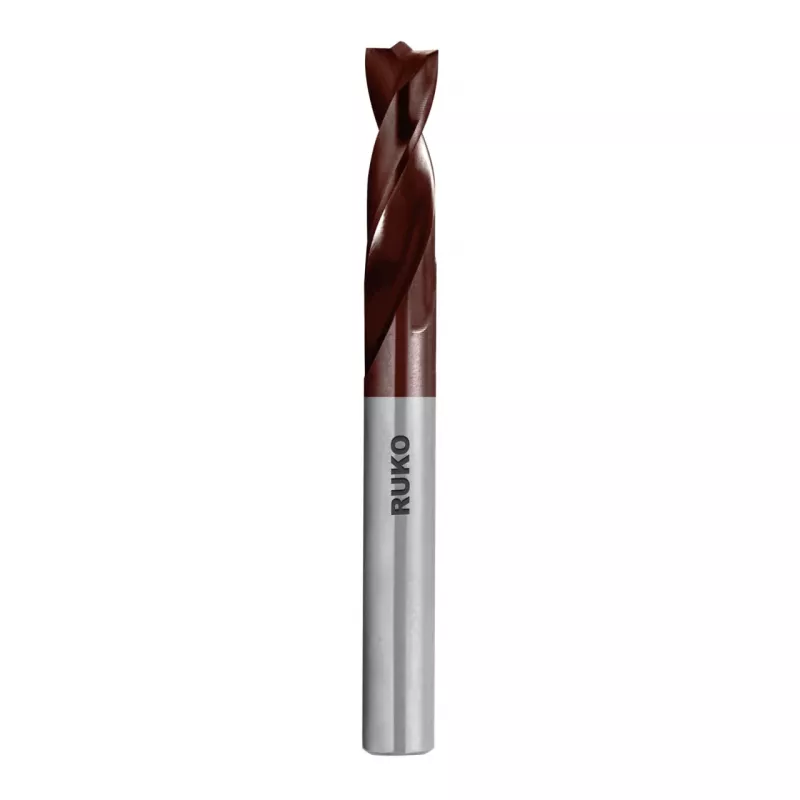

RUKO SPF-FCut-HSSCo-TiCN-10,0mm schachtfrees

This RUKO end mill delivers efficient slotting and profiling in steel, stainless steel, cast iron, and non-ferrous metals. The TiCN coating reduces wear and improves chip flow for longer tool life.

Advantages

Ground from solid HSS-Co with a TiCN coating, this tool offers high hardness and heat resistance. The 30° helix angle and three flutes provide smooth cutting action and good chip evacuation. Suitable for collet or Weldon chucks.

Suitable for

• General purpose milling
• Slotting and profiling
• Steel, stainless steel, cast iron, non-ferrous metals

Key specifications

• Cutting diameter: 10.0 mm
• Shank diameter: 10.0 mm
• Cutting edge length: 22 mm
• Overall length: 72 mm
• Number of flutes: 3
• Helix angle: 30°
• Standard: DIN 844 K

Recommendations

Use with external coolant supply for optimal performance. Suitable for right-hand cutting operations.
