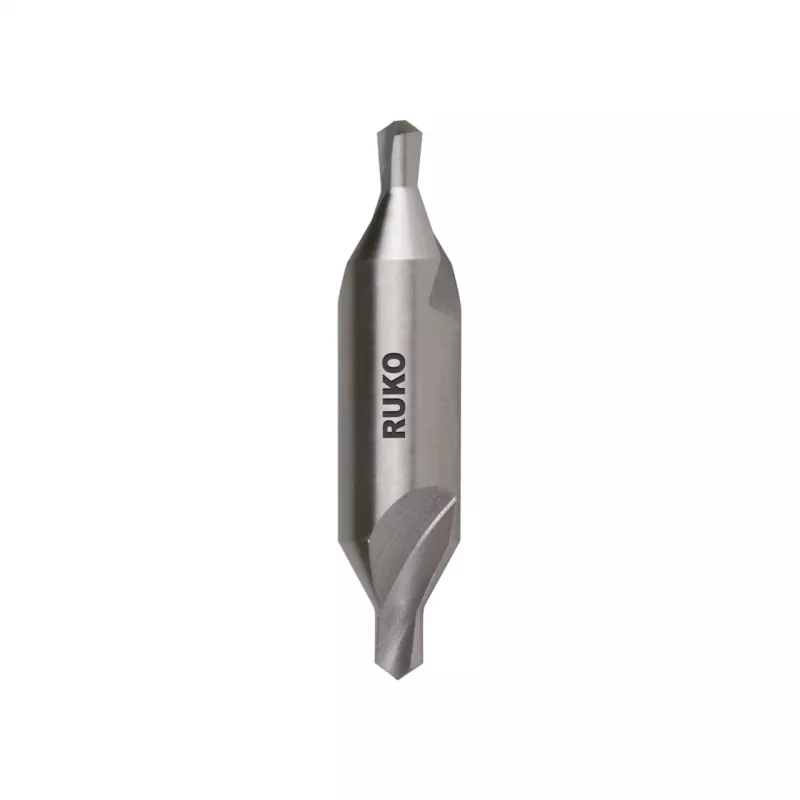

RUKO ZEB-HSS-DIN333-A-1,6mm centerboor

Precision-ground HSS center drill bit with 1.6 mm pilot diameter, DIN 333 Type A form, 60° point angle, and 35.5 mm overall length for accurate centering in metalworking.

Overview

The RUKO ZEB-HSS-DIN333-A-1.6mm is a high-speed steel center drill designed for creating center holes in workpieces prior to turning, grinding, or inspection. Its straight flute design and uncoated surface ensure reliable chip evacuation and consistent performance in a wide range of metals.

What stands out

• DIN 333 Type A geometry for standard center holes
• Precision-ground from high-speed steel for durability
• 60° point angle suitable for most centering applications
• Straight flutes for efficient chip removal
• Shank tolerance h8 for secure chucking

Technical details

• Pilot diameter (d1): 1.6 mm
• Shank diameter (d2): 4 mm
• Overall length (l1): 35.5 mm
• Point angle: 60°
• Flute type: Straight flute
• Coating: Uncoated
• Material: High-Speed Steel (HSS)
• Standard: DIN 333 Type A
• Number of flutes: 2
• Shank tolerance: h8
• Product type: Center Drill
• Application: Metalworking, Machining
• Manufacturing process: Ground
• Brand series: ZEBRA
• Packaging: Single Unit

Our verdict

A dependable center drill for precise centering tasks in metalworking, offering consistent performance and standard DIN 333 Type A geometry.
