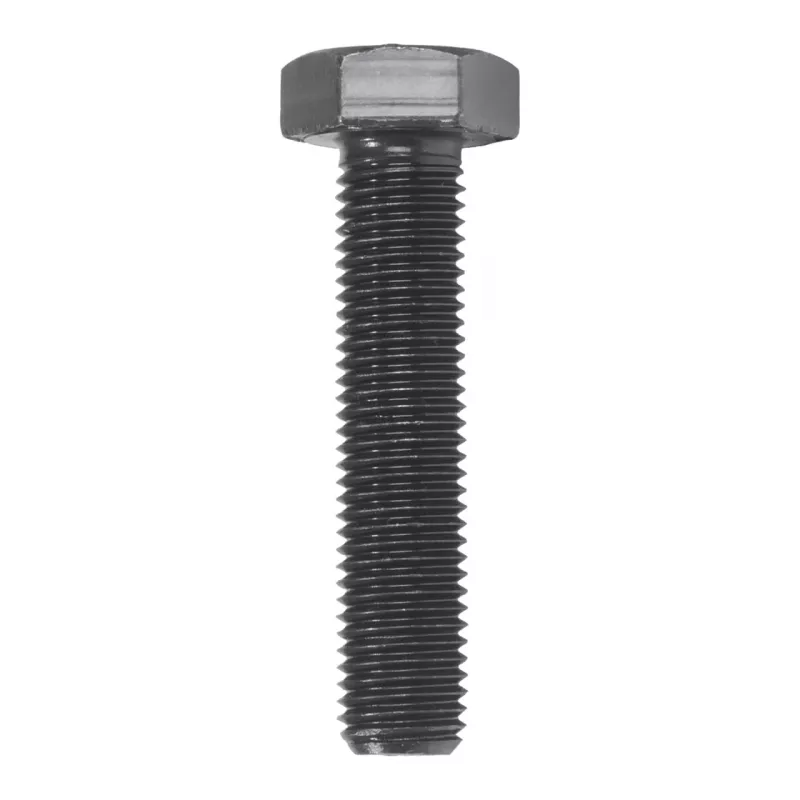

RUKO zeskantbout DIN 961 M16 x 1,5 x 60 mm, staal 8.8, blank

Hexagon head screw with metric fine thread, conforming to DIN 961. The M16 x 1.5 thread provides high clamping force and vibration resistance, making it suitable for precision fastening in machinery and construction.

Advantages

Fine pitch thread allows finer adjustment and higher preload compared to standard coarse threads. Strength class 8.8 ensures reliable performance under high tensile loads. Full thread length offers flexibility in grip range.

Suitable for

• General purpose fastening
• Machine assembly
• Construction applications

Key specifications

• Standard: DIN 961
• Thread type: Metric fine thread
• Nominal diameter: M16
• Thread pitch: 1.5 mm
• Length: 60 mm
• Material: Steel
• Strength class: 8.8
• Surface finish: Plain
• Head type: Hexagon
• Drive type: External hex
• Width across flats: 24 mm
• Head height: 10 mm
• Thread tolerance: 6g

Recommendations

For use with a matching M16 fine thread nut or tapped hole. Plain steel finish is suitable for dry indoor environments; consider additional corrosion protection for outdoor use.
