SATEL B-3 opbouw magneetcontact (metaal) - NC, IP67, 1 m kabel

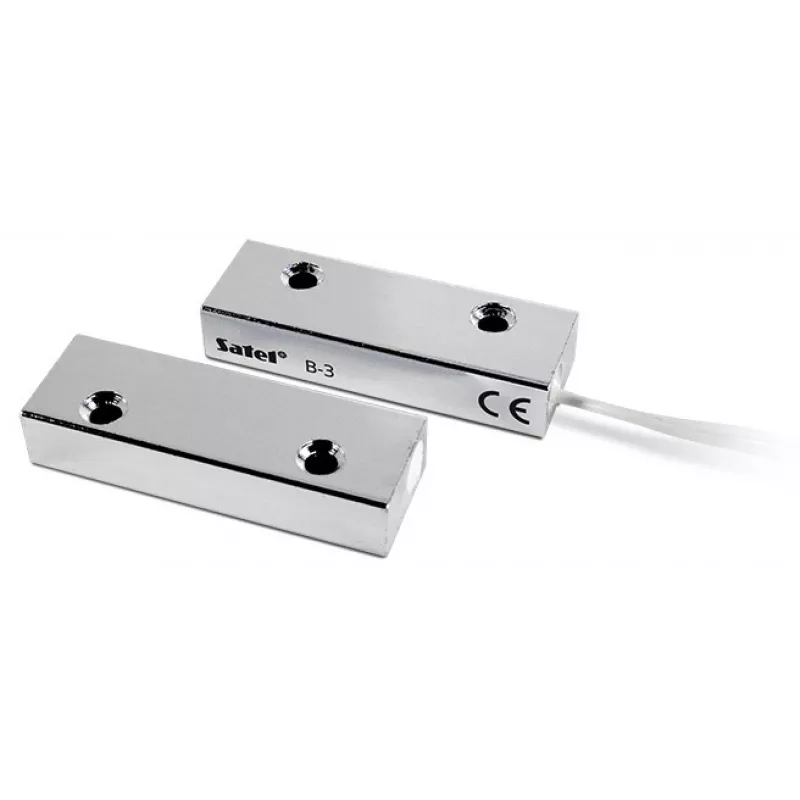

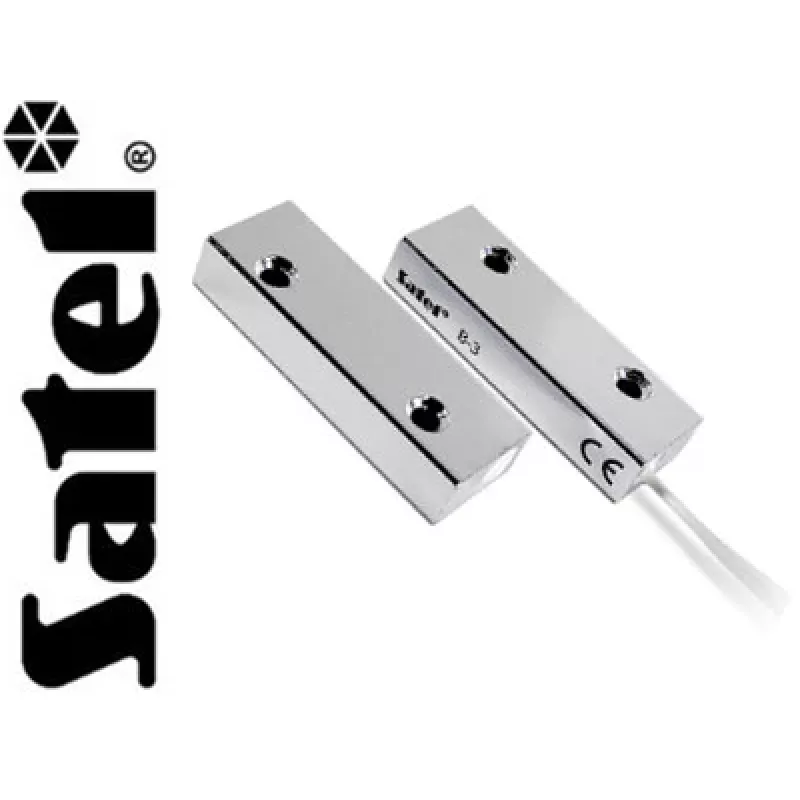

The SATEL B-3 is a high-quality surface-mount magnetic contact (reed switch) designed for reliable door and window protection in security systems. Its robust metal housing (aluminum alloy) ensures durability and resistance to environmental conditions, making it suitable for both indoor and outdoor installations.

Advantages

This magnetic contact features a normally closed (NC) contact configuration, providing fail-safe operation: if the circuit is broken, an alarm is triggered. The IP67 ingress protection rating guarantees protection against dust and temporary immersion in water, ensuring long-term performance even in harsh environments. The compact design (50 x 10 x 10 mm for both contact and magnet units) allows discreet mounting, while the 1-meter cable simplifies wiring.

Suitable for

• Door and window protection in residential and commercial security systems
• Surface-mount installations where flush mounting is not possible
• Outdoor applications requiring weather resistance
• Integration with alarm control panels from various manufacturers

Key specifications

• Product Type: Magnetic Contact (Reed Switch)
• Mounting Type: Surface-mount
• Housing Material: Metal (Aluminum Alloy)
• Contact Configuration: NC (Normally Closed)
• Max Switching Voltage: 20 V DC
• Max Switching Current: 20 mA
• Max Switching Power: 3 W
• Activation Gap: Up to 20 mm
• Operating Temperature Range: -10°C to +55°C
• Ingress Protection (IP) Rating: IP67
• Cable Length: 1 m
• Number of Wires: 2
• Color: Silver
• Dimensions (Contact Unit): 50 x 10 x 10 mm
• Dimensions (Magnet Unit): 50 x 10 x 10 mm
• Environmental Class: II (EN 50130-5)

Recommendations

For optimal performance, ensure the activation gap does not exceed 20 mm. The product is compatible with most alarm control panels; verify voltage and current requirements before installation. Suitable for use in security systems requiring IP67-rated components.
