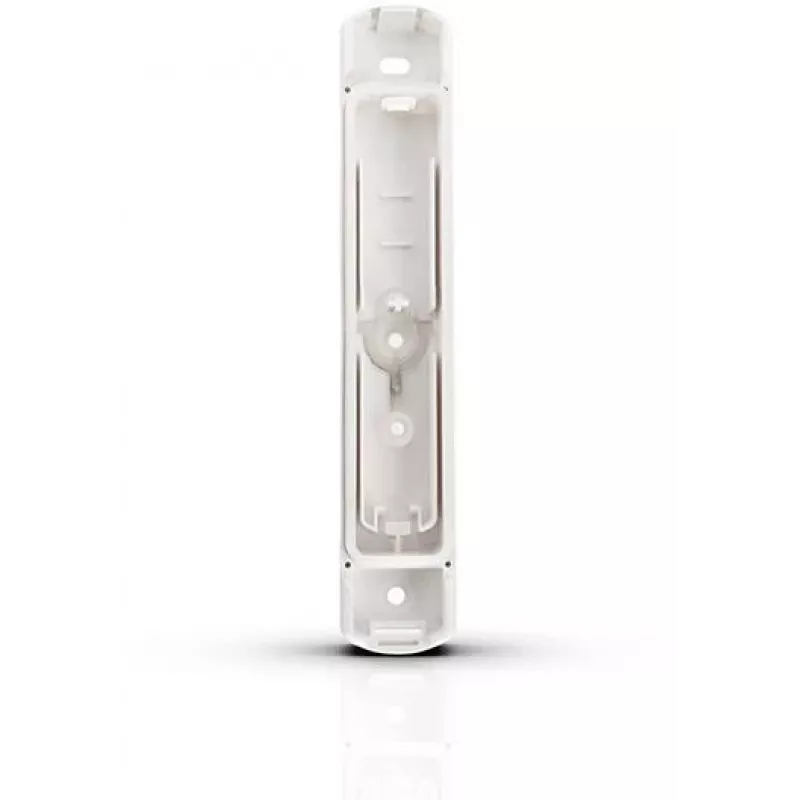

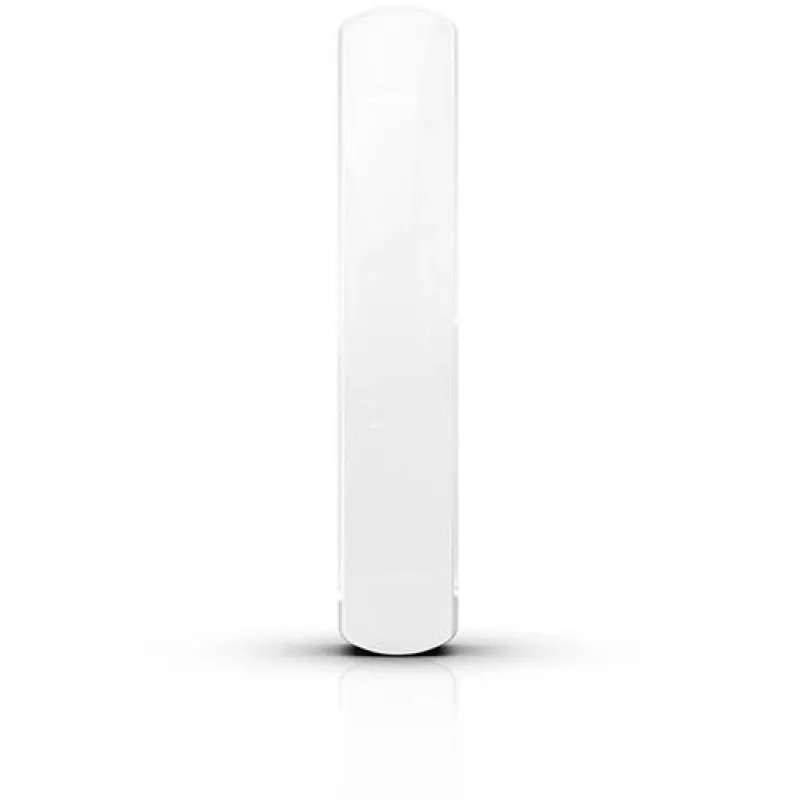

SATEL BE WAVE universele hermetische behuizing - wit OPX ABAX2

The SATEL BE WAVE Universal Hermetic Enclosure (OPX ABAX2) is a robust, weatherproof housing designed to protect SATEL ABAX2 system devices such as ACU-220, ACU-280, INT-KWRL2, and INT-KWRL3. Ideal for both indoor and outdoor installations, this enclosure ensures reliable operation in harsh environments.

Advantages

IP54-rated protection against dust and water splashes, UV-resistant polycarbonate material for long-lasting durability, integrated tamper protection against opening and wall detachment, and built-in space for antenna accommodation.

Suitable for

• Outdoor and indoor protection of SATEL ABAX2 wireless system controllers and expanders
• Installations requiring high ingress protection and tamper resistance
• Environments with extreme temperatures (-25°C to +55°C) and high humidity

Key specifications

• Brand: SATEL
• Model: OPX-1
• EAN: 5905033337589
• Enclosure Type: Universal Hermetic Enclosure
• Compatibility: SATEL ABAX2 System Devices (ACU-220, ACU-280, INT-KWRL2, INT-KWRL3)
• Ingress Protection: IP54
• Material: UV-resistant Polycarbonate
• Colour: White
• Mounting: Wall-mounted
• Tamper Protection: Yes (against opening and detachment from wall)
• Operating Temperature: -25°C to +55°C
• Max. Relative Humidity: 93 ±3%
• Antenna Accommodation: Integrated space for antenna
• Cable Entry: Multiple cable glands
• Dimensions (H x W x D): 200 x 120 x 40 mm
• Weight: 0.2 kg

Recommendations

For optimal performance, use this enclosure with SATEL ABAX2 devices. Ensure proper cable gland sealing to maintain IP54 rating. Suitable for both residential and commercial security systems.
