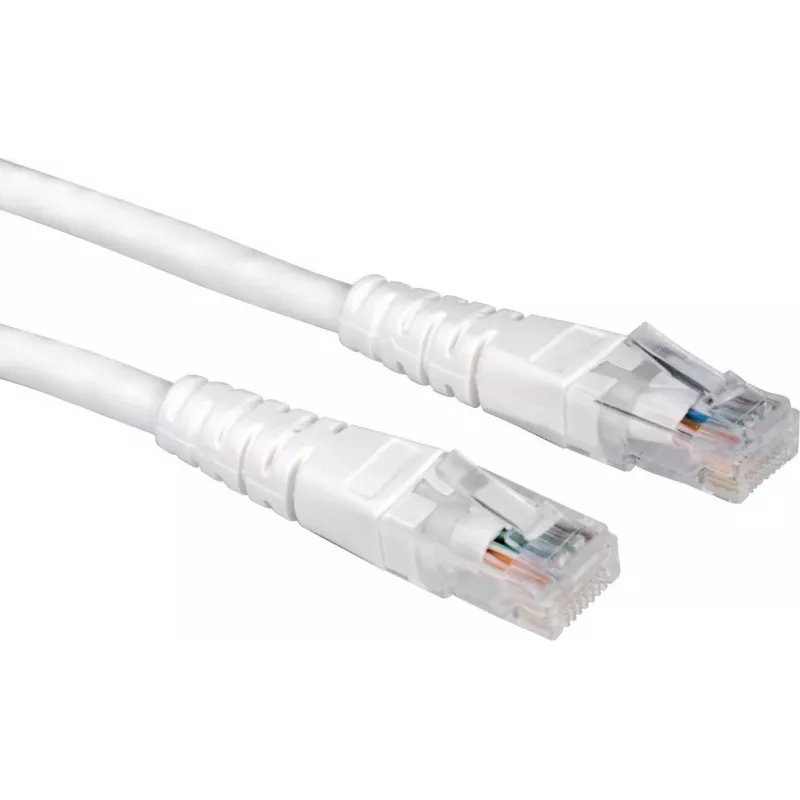

SECOMP STANDARD Cat.6 UTP-patchkabel, wit, 2 m S1772

With a bandwidth of 250 MHz and support for Gigabit Ethernet, this SECOMP Cat.6 UTP patch cable delivers reliable, high-speed network connectivity for demanding LAN environments. The 2-meter length provides flexibility for connecting devices in offices, server rooms, or home networks.

Overview

The SECOMP STANDARD UTP patch cable (model S1772) is a high-performance Category 6 cable designed to meet the requirements of Class E applications. It features four unshielded twisted pairs of stranded copper conductors, ensuring excellent signal integrity and reduced crosstalk. The cable is terminated with gold-plated RJ45 connectors on both ends, providing a secure and corrosion-resistant connection. The snagless molded boot protects the locking tab from damage during installation and removal, while the LSZH (Low Smoke Zero Halogen) jacket enhances safety in case of fire by emitting low smoke and no halogen gases.

What stands out

• Supports data transfer rates up to 1 Gbps (1000BASE-T) for fast network performance.
• Backward compatible with Cat.5e and Cat.5 cabling systems, ensuring seamless integration.
• Constructed with 26 AWG stranded copper conductors for flexibility and durability.
• Gold-plated contacts (50µm) provide reliable connectivity and resistance to oxidation.
• LSZH jacket material is ideal for environments where safety and low toxicity are critical.
• Snagless molded boot prevents connector damage during installation in high-density areas.
• Complies with RoHS, ISO/IEC 11801, and EN 50173 standards for quality assurance.

Technical details

• Cable type: UTP (Unshielded Twisted Pair) Patch Cable
• Category: Cat.6 (Class E)
• Length: 2 m
• Colour: White
• Connector type: RJ45 Male to RJ45 Male
• Conductor material: Copper (Cu)
• Conductor gauge: AWG 26/7 (stranded)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Shielding: UTP (Unshielded)
• Wiring standard: TIA/EIA 568B
• Bandwidth: 250 MHz
• Data transfer rate: Up to 1 Gigabit Ethernet (1000 Mbps)
• Number of pairs: 4
• Contact plating: Gold-plated (50µm)
• Boot type: Molded, snagless
• Operating temperature: -20°C to 60°C
• Certifications: RoHS, ISO/IEC 11801, EN 50173

Our verdict

A reliable and safe choice for Gigabit Ethernet networking, offering excellent performance, compliance with international standards, and a durable design suitable for both professional and home use.
