Soundcraft Notepad-5 analoge mengconsole

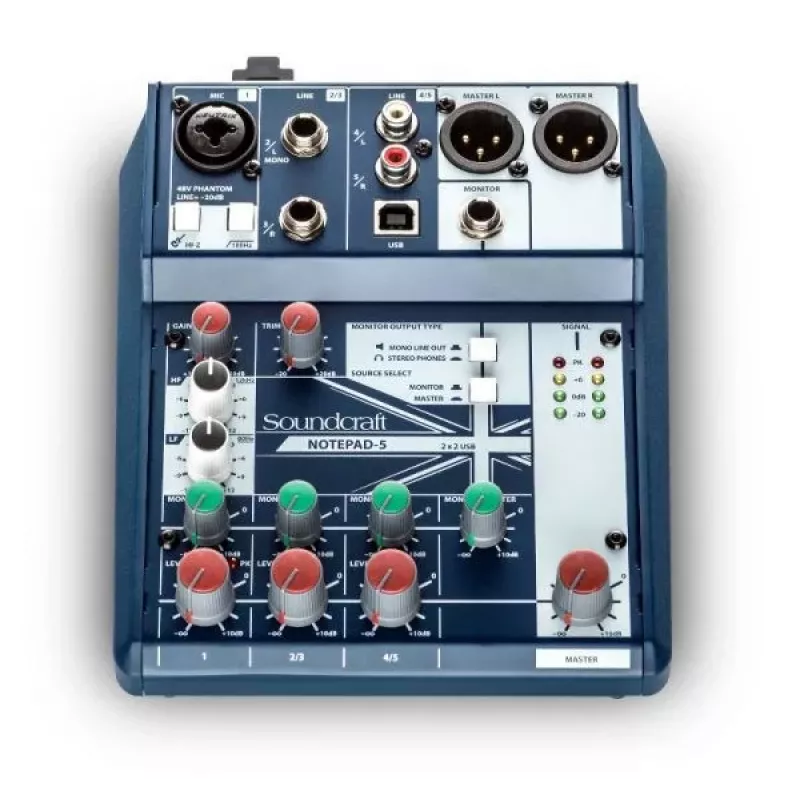

The Soundcraft Notepad-5 is a compact analog mixing console designed for musicians, podcasters, and content creators who need a simple yet high-quality audio solution. Featuring a single Soundcraft Ghost microphone preamp and a 2-band EQ, this mixer delivers professional-grade sound in a portable form factor. With 5 channels (1 mono mic/line and 2 stereo line inputs), plus a dedicated 3.5mm aux input, the Notepad-5 is perfect for small gigs, home studios, or live streaming setups.

Advantages

Exceptional audio quality from the renowned Soundcraft Ghost preamp, known for its low noise and high headroom. The compact metal chassis ensures durability while remaining lightweight and portable. The intuitive layout with a 4-segment LED meter makes monitoring levels easy, and the +48V phantom power switch allows use with condenser microphones.

Suitable for

• Musicians needing a portable mixer for rehearsals or small performances
• Podcasters and streamers requiring a simple analog mixer with microphone input
• Home studio owners looking for a compact mixing solution with high-quality preamps

Key specifications

• Mixer Type: Analog Mixing Console
• Channels: 5 (1 mono mic/line, 2 stereo line)
• Microphone Preamps: 1 x Soundcraft Ghost
• Phantom Power: +48V (switchable)
• EQ: 2-band (High, Low) on mic channel
• Frequency Response: 20Hz - 20kHz (+/-1.5dB)
• THD+N: <0.006% @ 1kHz
• Max Input Level: +22dBu
• Max Output Level: +22dBu
• Metering: 4-segment LED
• Power Supply: External AC adapter

Recommendations

For best results, pair the Notepad-5 with a dynamic or condenser microphone and monitor via headphones using the 1/4" TRS headphone output. The external power supply ensures clean power delivery, and the metal chassis provides reliable shielding.
