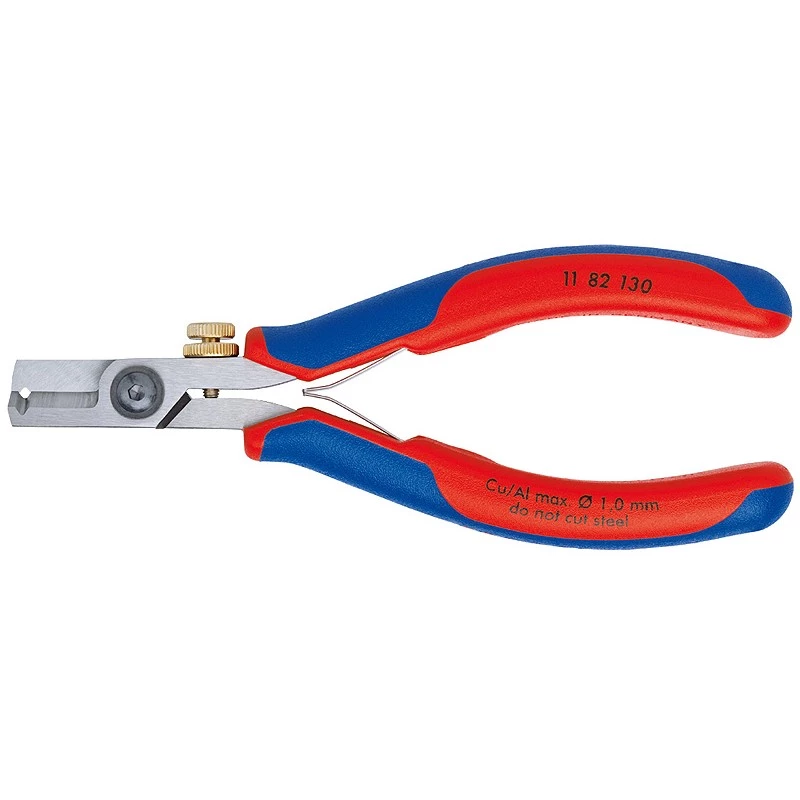

Striptang Knipex 11 82 130

The Knipex 11 82 130 cable stripper is designed for precise cutting and stripping of insulation from single, multiple and fine‑stranded conductors with diameters up to 1.0 mm. The tool has a robust, oil‑hardened special tool steel construction and ergonomic handles for secure handling and long service life.

Advantages

Adjustable knurled screw with lock nut allows quick and accurate setting to the required diameter of solid or stranded wire. The integrated opening spring ensures fast, repeatable operation. Oil‑hardened special tool steel provides durability and resistance to wear. Compact design and clear adjustment make the tool suitable for repetitive stripping tasks.

Suitable for

• Cutting and stripping single conductors up to 1.0 mm diameter
• Preparing multiple and fine‑stranded wires for termination
• Electrical installation and network cabling work
• Professional service and DIY electronics or repair tasks

Key specifications

• Brand: Knipex
• Model / MPN: 11 82 130
• EAN: 4003773071648
• Suitable conductor diameter: up to 1.0 mm
• Material: special tool steel, oil‑hardened
• Adjustment: knurled screw with lock nut
• Features: opening spring, ergonomic handles
• Colour: Blue, Red

How to use

Set the knurled screw to the desired conductor diameter and secure with the lock nut. Insert the conductor between the stripping blades, squeeze the handles to cut the insulation, then pull the tool or wire to remove the insulation. Release the handles to open the tool via the spring and repeat as needed. For fine‑stranded wires, check the adjustment on a scrap piece to avoid nicking the conductor.

Recommendations

Use the adjustment screw to match the conductor diameter before each task and verify on a sample wire. Keep the tool clean and apply light machine oil on pivot points periodically to maintain smooth operation. Do not exceed the specified conductor diameter of 1.0 mm.
