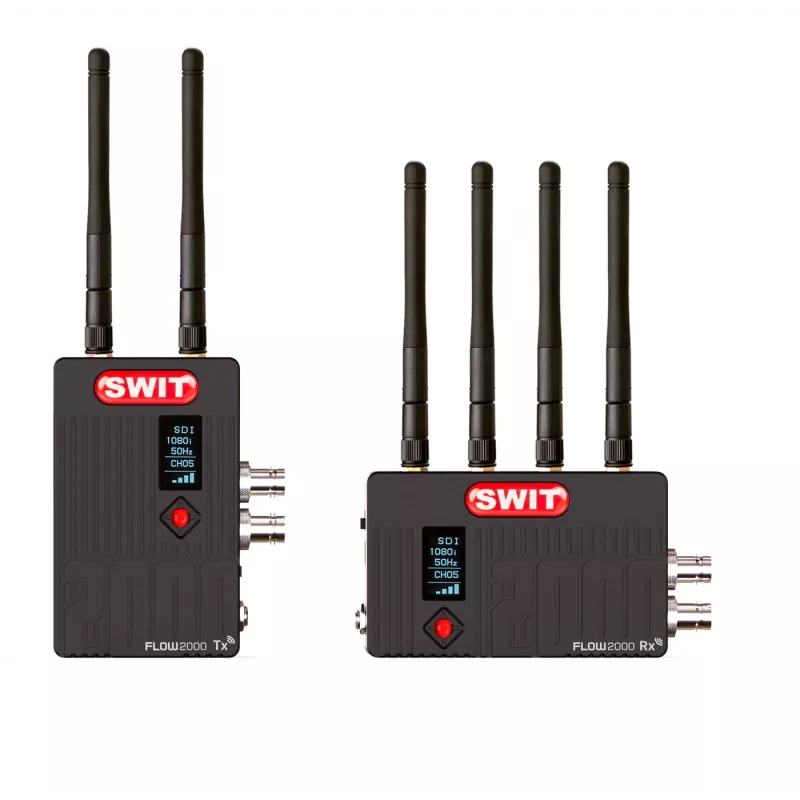

SWIT ELECTRONICS FLOW2000 - Full-HD draadloos videotransmissiesysteem met ontvanger en zender

The SWIT ELECTRONICS FLOW2000 is a professional Full-HD wireless video transmission system designed for broadcast, filmmaking, and live event production. This comprehensive kit includes both a transmitter and a receiver, providing a reliable and low-latency wireless link for 1080p60 video signals over distances up to 600 meters (2000 feet) line-of-sight. With robust aluminum alloy construction, AES 128-bit encryption, and support for up to four receivers, the FLOW2000 is the ideal solution for demanding wireless video applications.

Advantages

Experience ultra-low latency of less than 70 ms, ensuring real-time video monitoring and transmission. The system operates in the 5.1-5.9 GHz frequency band with automatic DFS compliance, avoiding interference from Wi-Fi and other sources. Dual antennas on the transmitter and five on the receiver provide exceptional signal stability and range. The FLOW2000 supports both 3G-SDI and HDMI inputs on the transmitter, with loop-out SDI, and dual SDI plus HDMI outputs on the receiver, offering flexible connectivity for a wide range of cameras and monitors.

Suitable for

• Broadcast and live event production
• Film and video production on set
• Wireless camera monitoring for gimbal and drone operators
• Remote video assist and director's monitor feeds
• Educational and corporate video streaming

Key specifications

• Max Video Resolution: 1080p60 (Full HD)
• Transmission Range: 600 meters / 2000 feet (Line-of-Sight)
• Latency: < 70 ms
• Frequency Band: 5.1-5.9 GHz
• Transmitter Video Inputs: 1x 3G-SDI, 1x HDMI
• Transmitter Video Outputs: 1x 3G-SDI Loop Out
• Receiver Video Outputs: 2x 3G-SDI, 1x HDMI
• Antennas: 2x Tx, 5x Rx (Omni-directional)
• Encryption: AES 128-bit
• Multi-Receiver Support: Up to 4 receivers
• Power Input: DC 7-17V (2-pin LEMO / D-tap compatible)
• Power Consumption (Tx/Rx): Approx. 8W each
• Mounting: 1/4"-20 thread, Cold Shoe Adapter
• Housing Material: Robust Aluminum Alloy
• Operating Temperature: -20°C to +50°C
• Channel Selection: Auto / Manual (20 channels)
• Tally Support: Yes
• On-Screen Display (OSD): Yes (for status, signal strength, battery)
• Audio Transmission: Embedded SDI/HDMI audio
• DFS Compliance: Yes
• Unit Weight (Tx/Rx): 280g each
• Unit Dimensions (Tx/Rx): 129 x 70 x 25 mm

Recommendations

The SWIT FLOW2000 is a top-tier wireless video system that delivers professional-grade performance at an accessible price point. Its robust build, low latency, and long range make it a reliable choice for any production environment. Pair it with SWIT batteries and accessories for a complete wireless workflow.
