SwitchBox Wireless blebox SwitchBox zwart

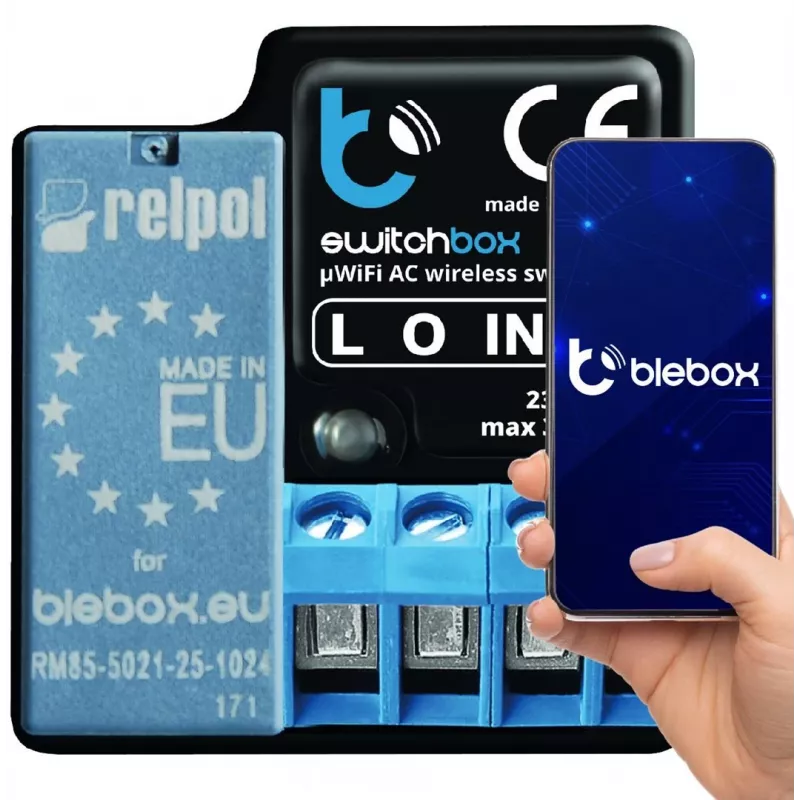

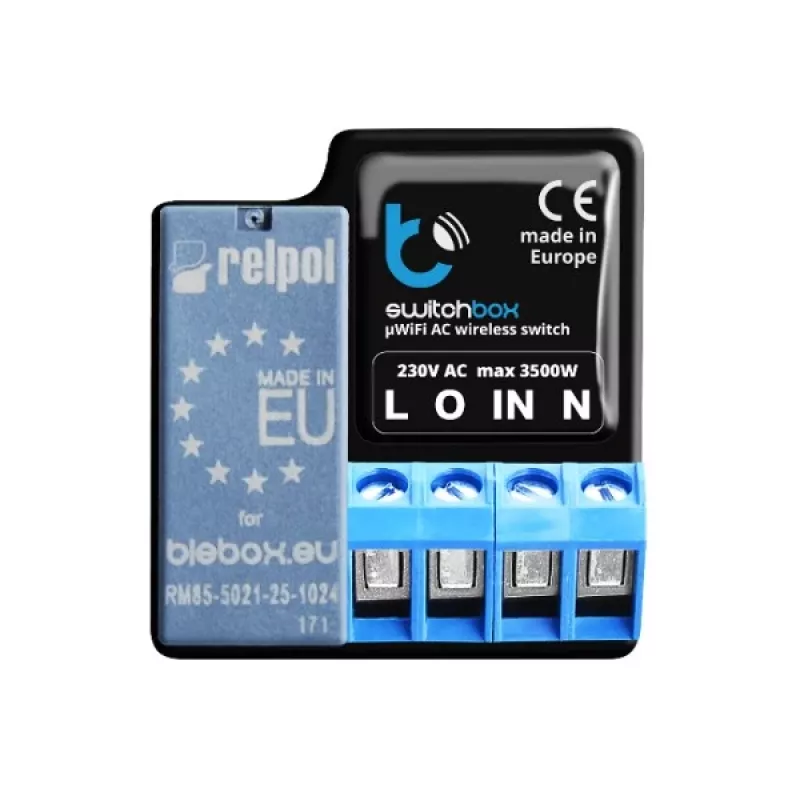

SwitchBox is a wireless relay module that turns electric devices powered from 230 V AC on and off with a maximum switching capacity of 3 kW. The compact unit (39 mm x 47 mm x 23 mm) connects via μWi‑Fi and can be controlled remotely from mobile devices or personal computers using the wBox app or standard network interfaces.

Advantages

The SwitchBox offers remote control of electrical loads, support for automation scenes and presence simulation, and compatibility with other bleBox devices through established communication protocols. Its small form factor allows installation inside most electrical outlets or junction boxes, and it supports use with a wide range of mains‑powered appliances and lighting.

Suitable for

• Remote control of lighting circuits
• Switching household appliances up to 3 kW
• Automated presence simulation for security
• Integration into home automation systems with other bleBox devices

Key specifications

• Operating voltage: 230 V AC
• Maximum switching power: 3000 W (3 kW)
• Wireless connectivity: μWi‑Fi
• Dimensions: 39 mm × 47 mm × 23 mm
• Form factor: compact relay module for in‑wall or junction box installation

How to use

Install the SwitchBox in an appropriate electrical outlet or junction box and connect the load according to local electrical codes. Use the wBox mobile app or a compatible network interface to add the device to your Wi‑Fi network, configure basic settings and automation scenes, and control the output remotely. Ensure the connected device does not exceed the 3 kW switching capacity.

Recommendations

Use the SwitchBox with properly fused circuits and observe local electrical safety regulations. Verify load ratings of connected appliances before installation and keep the module inside enclosed installations to protect it from moisture and mechanical damage.
