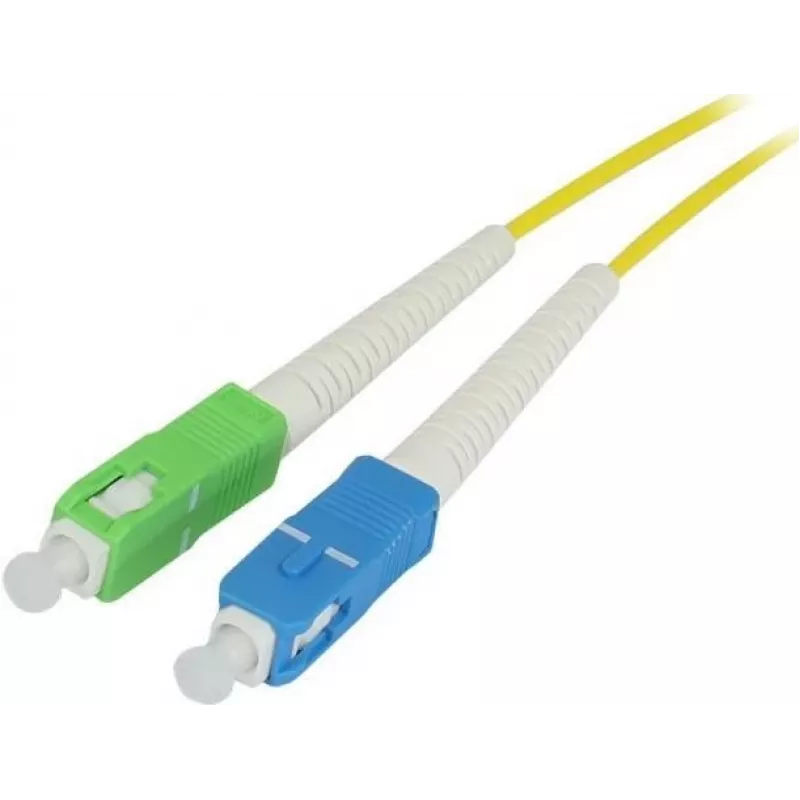

SYNERGY21 glasvezel-patchkabel 10m SC/SC APC 9/125µm OS2 G.657.A2 simplex 2mm buigbestendig

The SYNERGY21 S215737 is a high-quality single-mode fiber optic patch cable designed for reliable, high-speed data transmission in demanding network environments. With a length of 10 meters and SC/APC connectors on both ends, this simplex cable ensures low insertion loss and minimal back reflection, making it ideal for FTTH, data centers, and telecommunications applications. The 9/125µm core/cladding diameter complies with OS2 and G.657.A2 standards, offering bend-insensitive performance for flexible installation. The 2mm outer diameter and flexible bend protection sleeve provide durability and ease of routing.

Advantages

This fiber optic patch cable delivers exceptional signal integrity with APC polish to reduce reflectance. Its bend-insensitive design allows tight bends without signal degradation, simplifying installation in confined spaces. The robust construction ensures long-term reliability in indoor environments.

Suitable for

• Data centers requiring high-density cabling
• FTTH (Fiber to the Home) installations
• Local Area Networks (LAN) and telecommunications
• Connecting optical transceivers, patch panels, and network devices

Key specifications

• Fiber Type: Single-Mode (OS2)
• Fiber Count: Simplex (1 fiber)
• Core/Cladding: 9/125 µm
• Connector Type: SC/APC to SC/APC
• Polish: Angled Physical Contact (APC)
• Length: 10 meters
• Outer Diameter: 2 mm
• ITU-T Standard: G.657.A2
• Bend Sensitivity: Bend-Insensitive
• Jacket Feature: Flexible Bend Protection Sleeve
• Data Rate Support: Up to 100 Gigabit Ethernet
• Wavelength Support: 1310nm, 1550nm
• Application: Indoor

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with all standard SC/APC interfaces. Pair with SYNERGY21 patch panels and adapters for a complete solution.
