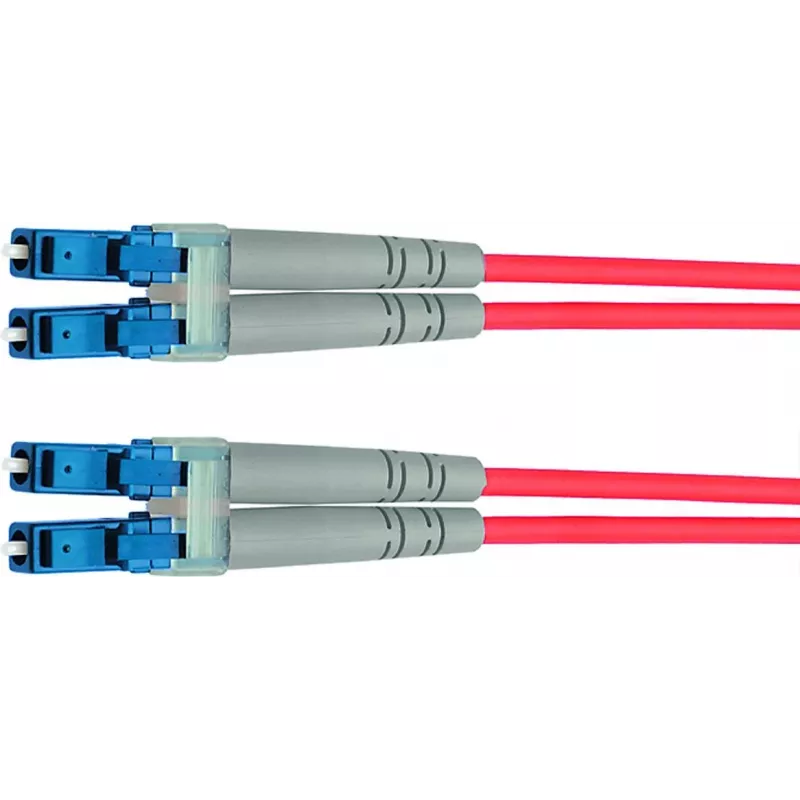

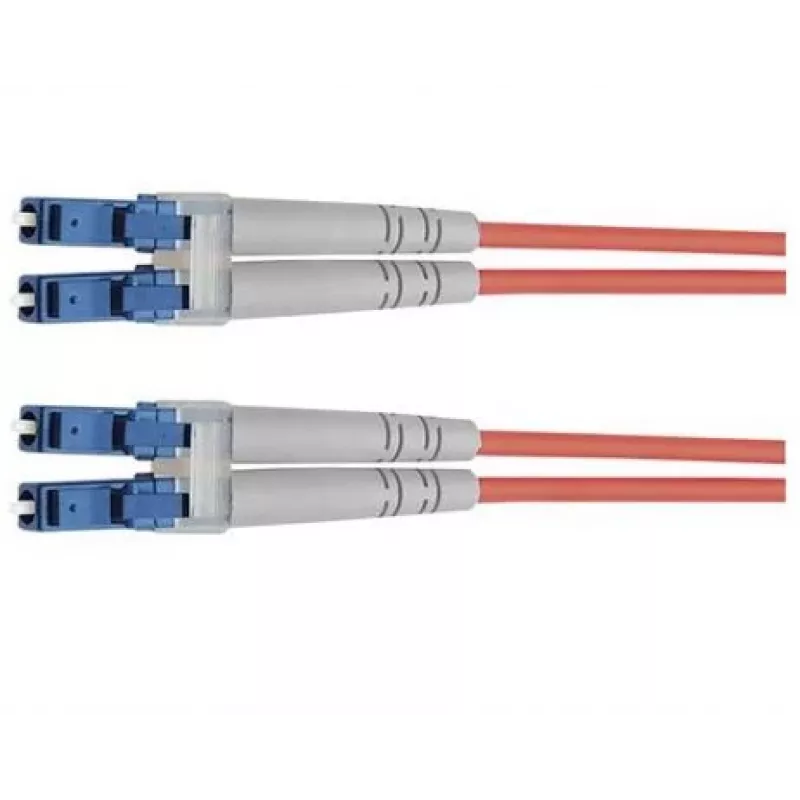

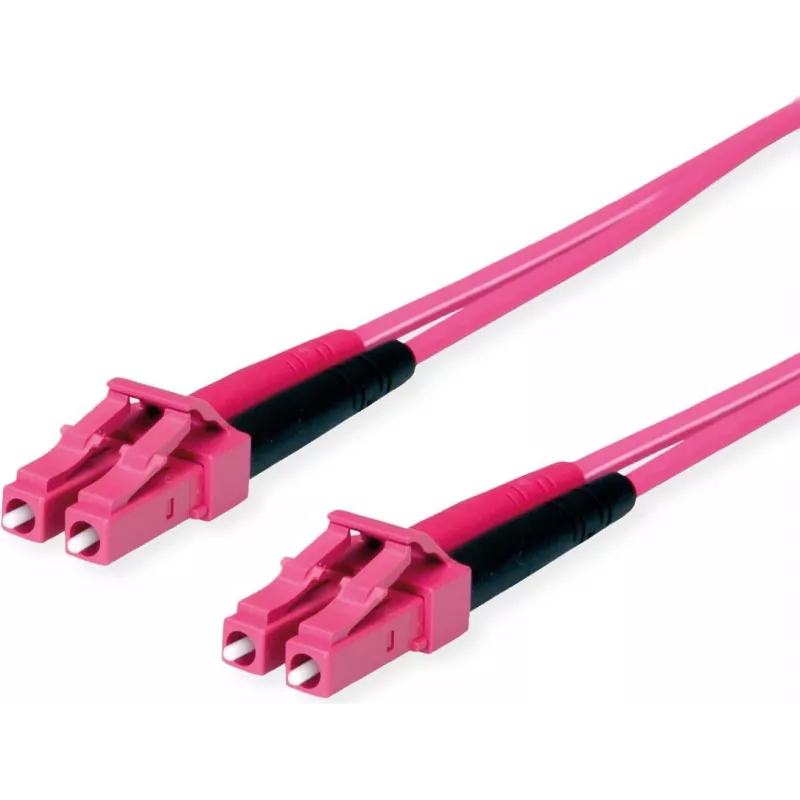

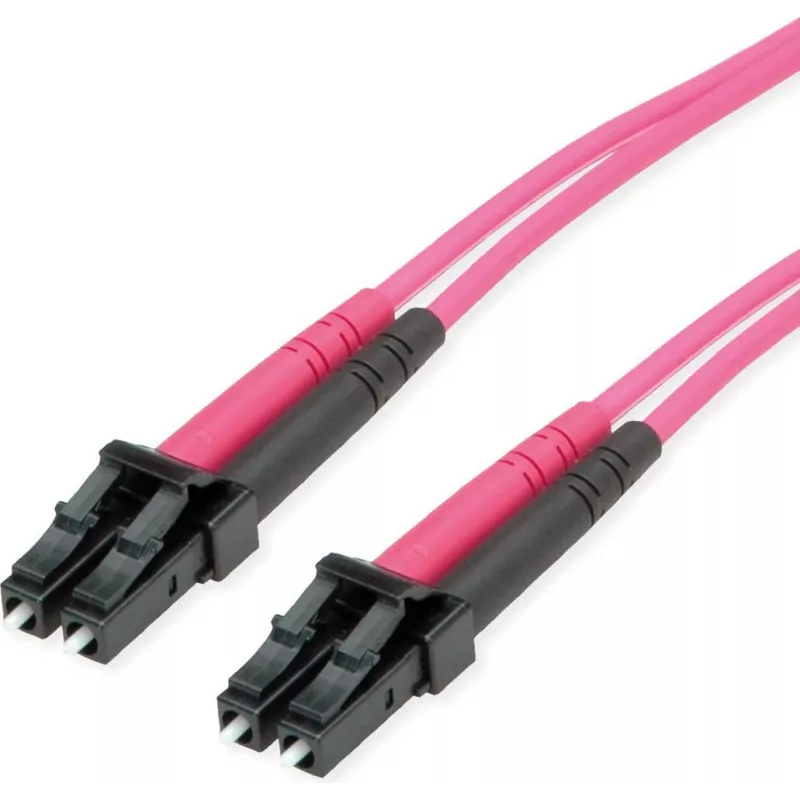

TELEGÄRTNER 10m LC naar LC OM4 duplex 50/125 multimode glasvezel patchkabel, violet LSZH 100011512

For high-density fiber links where every decibel counts, this TELEGäRTNER OM4 patch cable delivers a 10-meter LC-to-LC duplex connection with violet LSZH jacketing. Its laser-optimized 50/125 µm core supports 100 Gbps Ethernet, making it a dependable choice for data centers, SANs, and backbone runs that demand low insertion loss and stable return loss.

Highlights

• OM4 multimode fiber with 50/125 µm core/cladding for 10G, 40G, and 100G Ethernet
• Duplex LC male connectors on both ends for easy polarity management
• 10-meter length ideal for patching between racks or connecting devices across a row
• Violet LSZH jacket for low smoke and halogen-free safety in enclosed spaces
• Typical insertion loss ≤ 0.3 dB and return loss ≥ 30 dB for clean signal paths

In daily use

Installers will appreciate the cable’s flexibility and clearly marked duplex orientation. The LSZH jacket resists abrasion and reduces toxic emissions in fire scenarios, meeting strict building codes. Whether you are upgrading to 40/100 Gbps or future-proofing a 10 Gbps link, this cable maintains signal integrity over its full 10-meter length.

Full specifications

• Connector type: LC Multi-Mode (Male) to LC Multi-Mode (Male)
• Fiber type: Multi-Mode, OM4
• Core/cladding diameter: 50/125 µm
• Cable length: 10 m
• Cable structure: Duplex (2 fibers)
• Jacket color: Violet
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Maximum data rate: 100 Gbps
• Insertion loss (typical): ≤ 0.3 dB
• Return loss (typical): ≥ 30 dB
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C
• Compliance: RoHS, TIA/EIA-568-C.3

Final note

TELEGäRTNER’s precision-polished LC connectors ensure repeatable low-loss mating, while the OM4 grade provides headroom for tomorrow’s faster optics.
