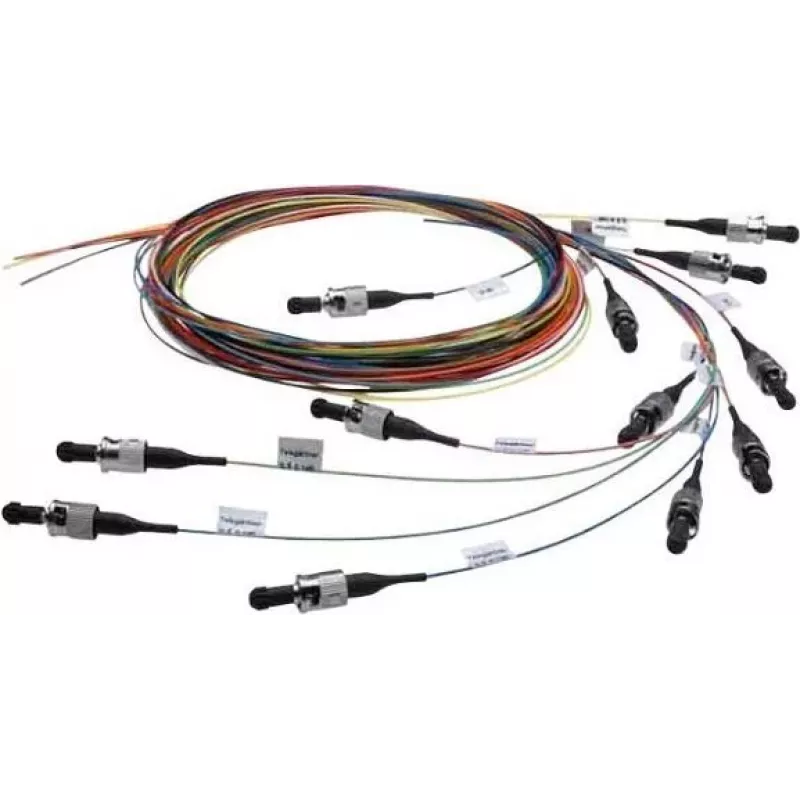

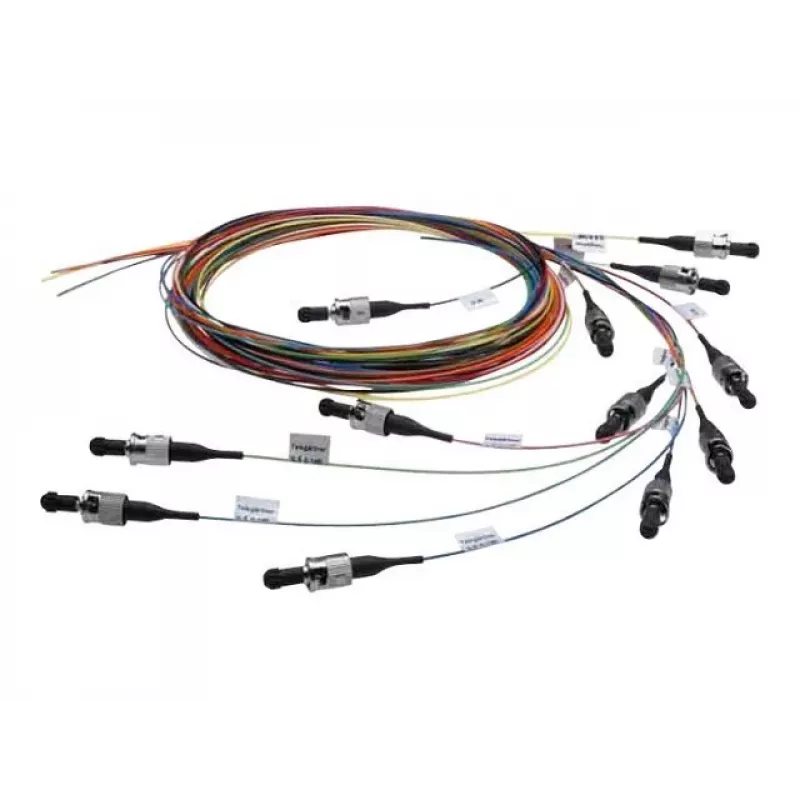

TELEGÄRTNER SC multimode OM3 pigtail met soldeerlip, 50/125 µm L00889A0034

This SC multimode OM3 fibre optic pigtail features a solder tag termination for direct PCB mounting, enabling reliable integration into active optical components. The connector is pre-polished with a PC finish for low insertion loss and high return loss.

Advantages

The solder tag design eliminates the need for additional connectors, reducing assembly time and potential failure points. The zirconia ceramic ferrule ensures precise fibre alignment and durability over repeated mating cycles.

Suitable for

• PCB mounting in optical transceivers and media converters
• Active component integration in fibre optic systems
• High-density multimode OM3 applications requiring 10Gbps performance

Key specifications

• Connector type: SC
• Fibre mode: Multimode OM3
• Core/cladding diameter: 50/125 µm
• Termination method: Solder tag
• Ferrule material: Zirconia ceramic
• Insertion loss: < 0.3 dB
• Return loss: > 20 dB
• Operating temperature: -40 to +85 °C

Recommendations

For best results, solder the tag using a temperature-controlled iron and avoid excessive heat near the ferrule. Ensure proper strain relief on the fibre to prevent microbending losses.
