Temperatuursensor Milesight EM500-PT100

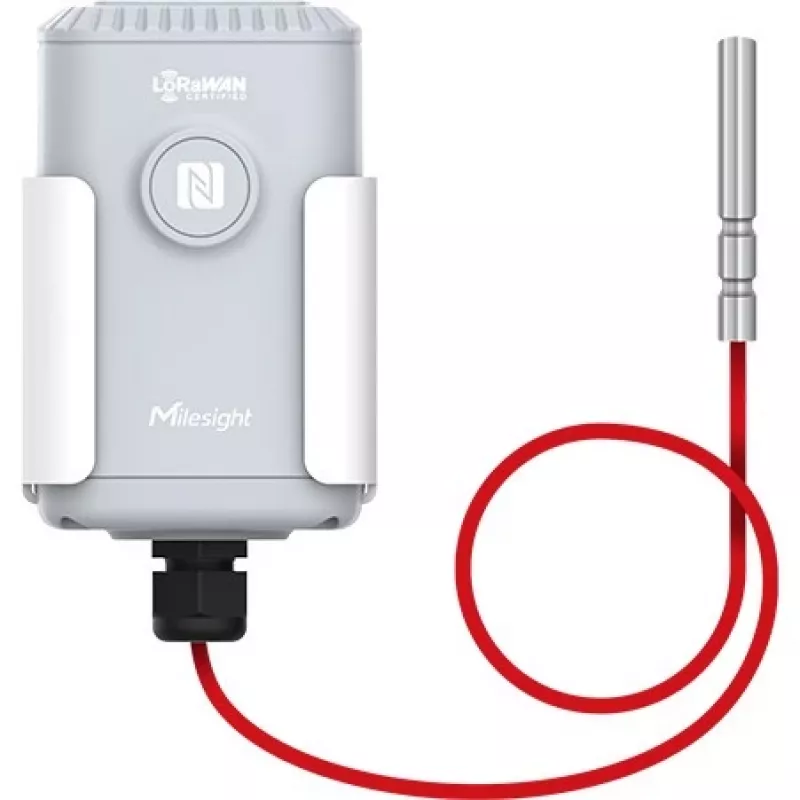

The Milesight EM500-PT100 is a robust industrial temperature sensor designed for accurate and stable measurements across a wide range. Manufactured with platinum sensing material, it reliably measures temperatures from -200 °C to 800 °C. The sensor is IP67-rated for water resistance, UV-resistant and vibration-resistant, and supports LoRaWAN® wireless communication for long-range, low-power data transmission. It is powered by a long-life lithium thionyl chloride battery (19000 mAh) and supports easy configuration via NFC. Mounting options include wall, pole and DIN rail installations.

Advantages

The EM500-PT100 offers stable and precise temperature measurement due to its platinum sensing element and wide operating range. Its IP67 protection, UV and vibration resistance enable reliable operation in harsh environments. LoRaWAN® connectivity provides secure long-range wireless transmission with low power consumption, enabling up to 10 years of battery life with a 10-minute reporting interval. NFC configuration simplifies on-site setup and maintenance.

Suitable for

• Industrial process monitoring
• Laboratory and research temperature measurements
• Outdoor installations exposed to sun and rain
• Remote sites requiring long battery life and wireless data links

Key specifications

• Model: Milesight EM500-PT100 (MPN: EM500-PT100-868M-T050)
• Temperature range: -200 °C to 800 °C
• Battery: Lithium thionyl chloride, 19000 mAh
• Wireless: LoRaWAN®
• Ingress protection: IP67
• Resistance: UV-resistant, vibration-resistant
• Dimensions: 105.4 mm x 71 mm x 69.5 mm

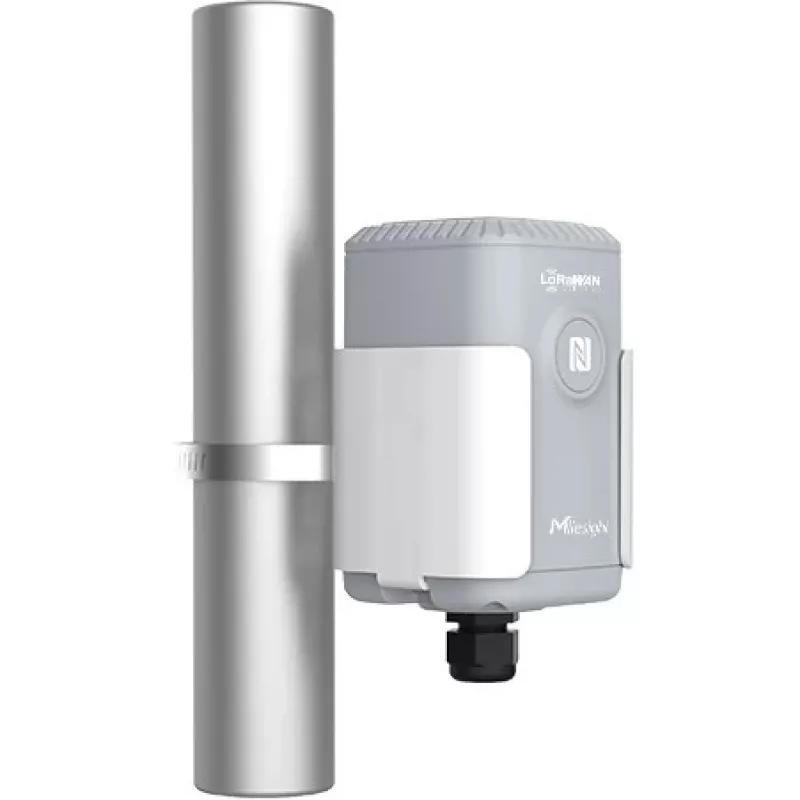

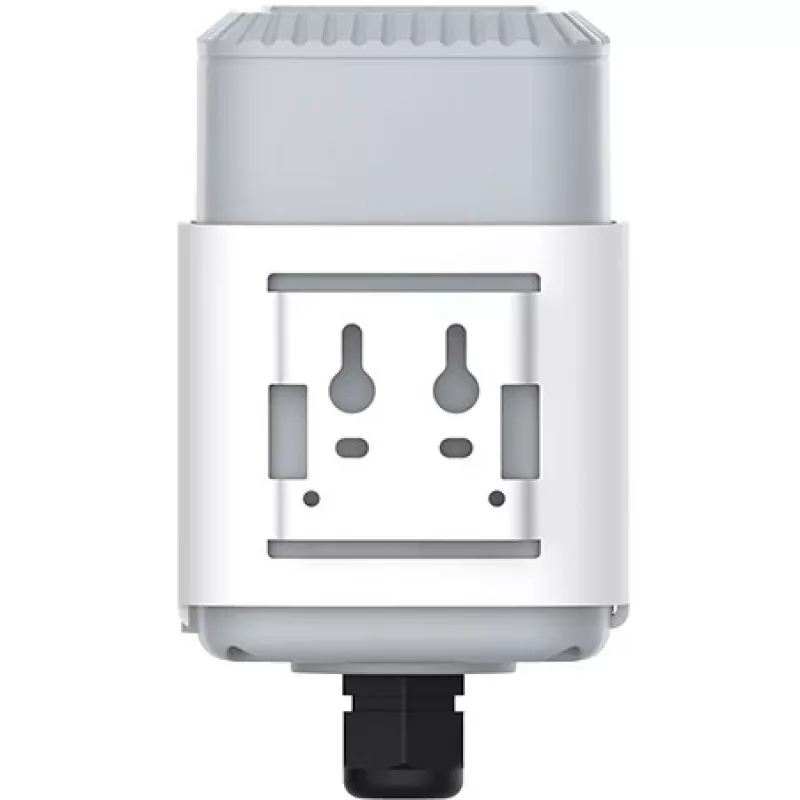

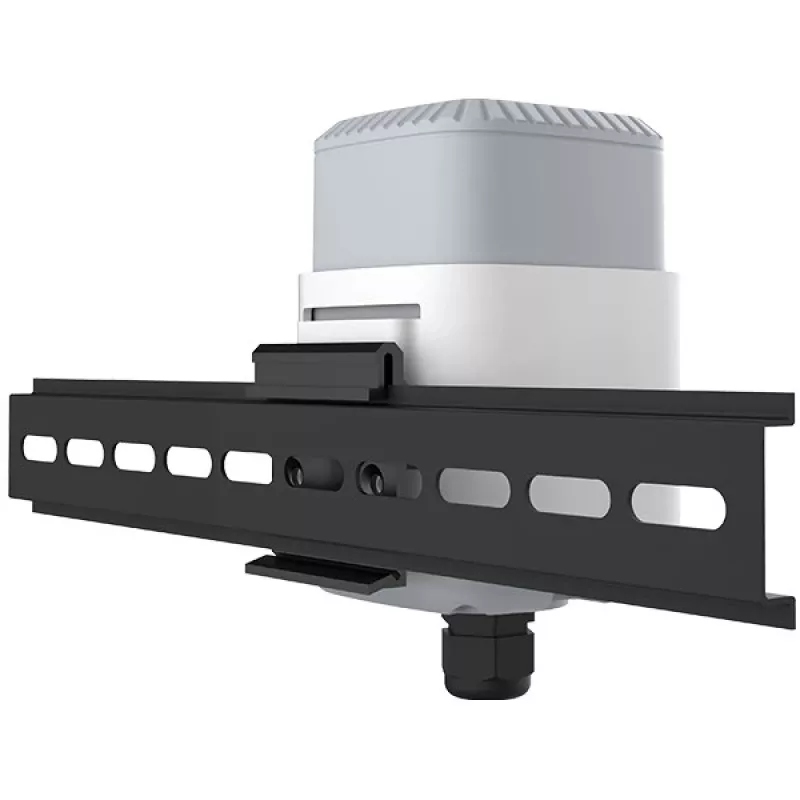

• Mounting: Wall, pole, DIN rail
• Configuration: NFC via mobile phone or PC
• EAN: 6974225031726

How to use

Install the sensor using an appropriate mounting method (wall, pole or DIN rail) and ensure the probe is positioned to measure the target medium accurately. Configure network parameters and device settings using NFC from a smartphone or a PC. Register the device to a LoRaWAN® gateway and cloud platform such as Milesight IoT Cloud to enable data visualization, alerts and reporting. Set the reporting interval according to monitoring needs; a 10-minute cycle is supported while preserving long battery life.

Recommendations

For reliable long-term measurements, verify correct probe placement and secure mounting. Use a properly configured LoRaWAN® gateway and verify cloud account settings for alerts and reports. Avoid prolonged exposure of connectors during installation and follow local safety procedures when measuring extreme temperatures.
