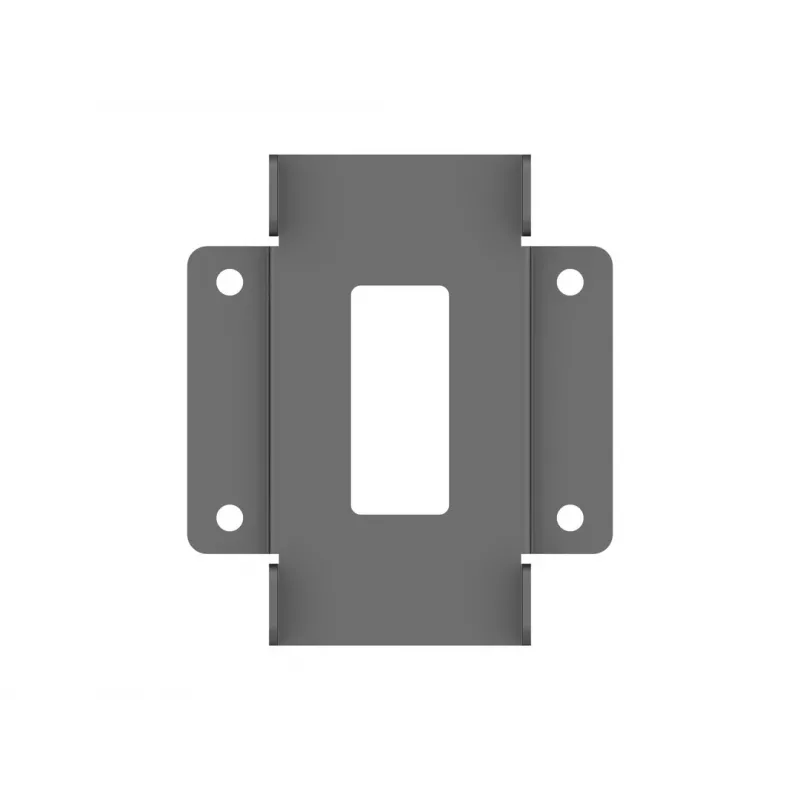

Toestelplaat Multibrackets M Pro Series verbindingsplaat zwart staal 2,1 kg

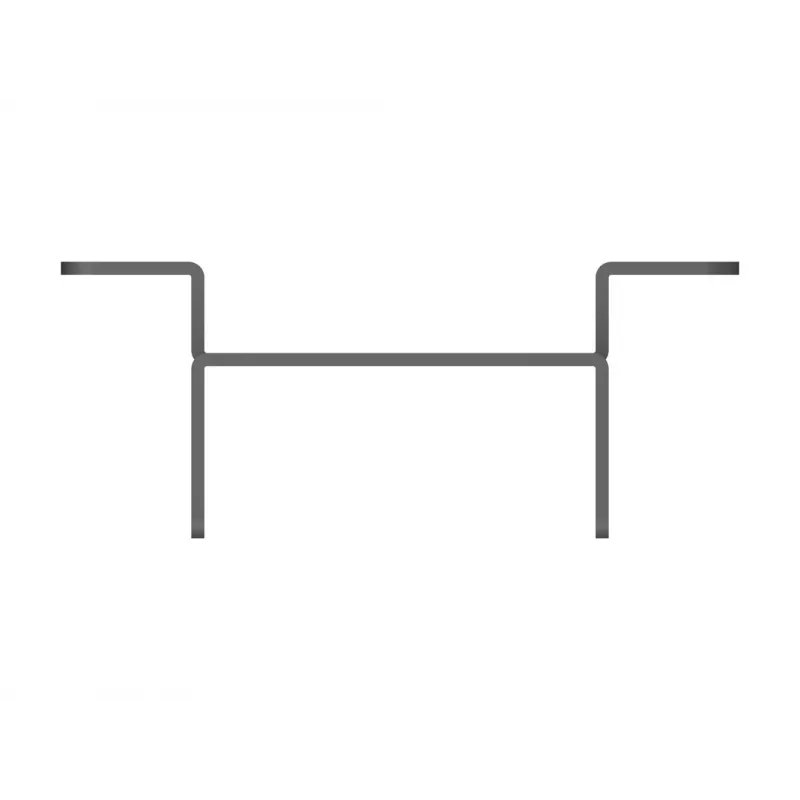

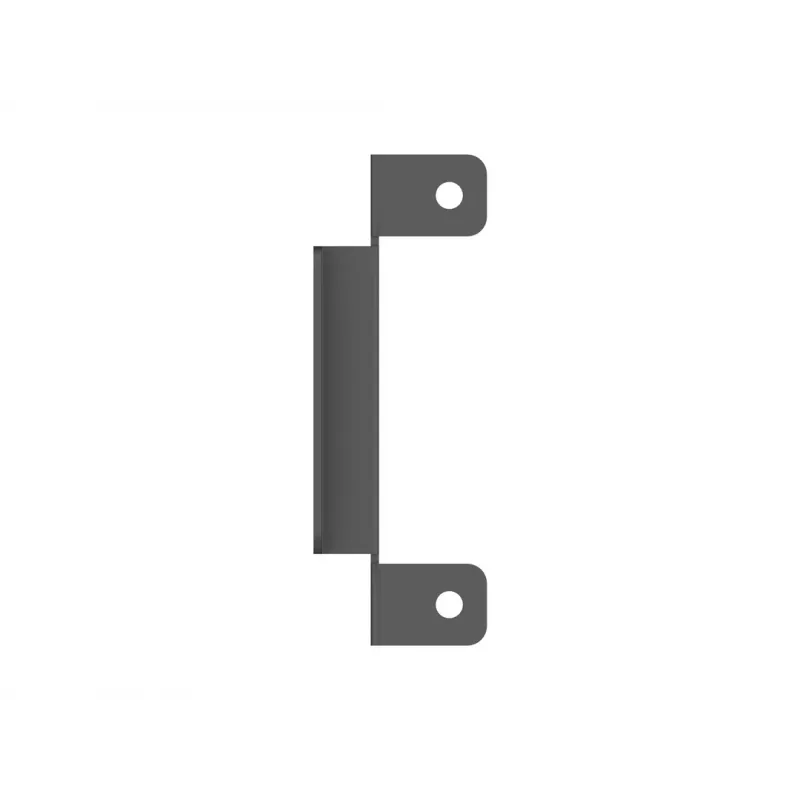

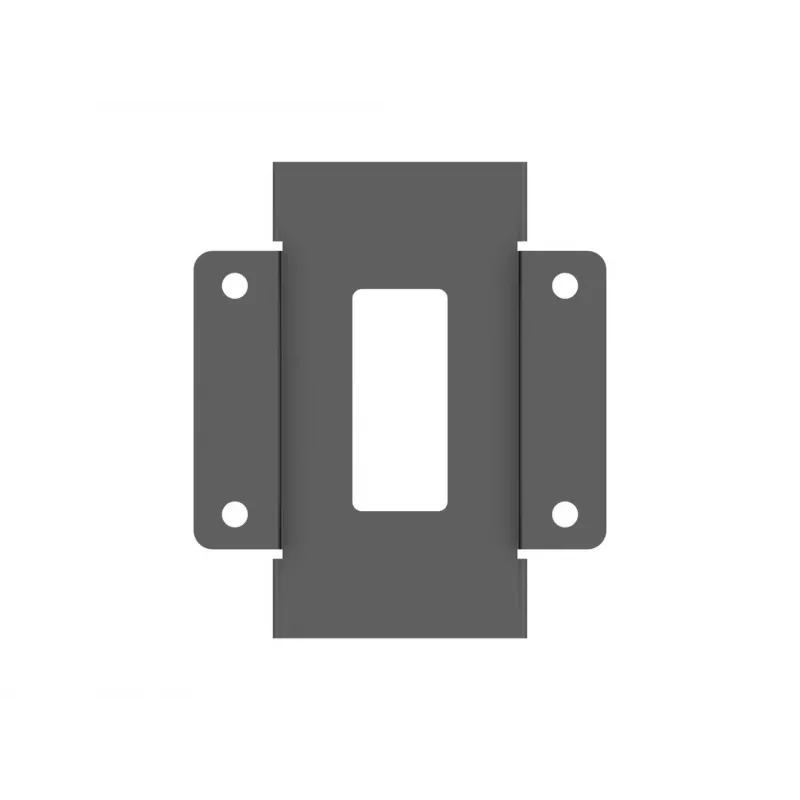

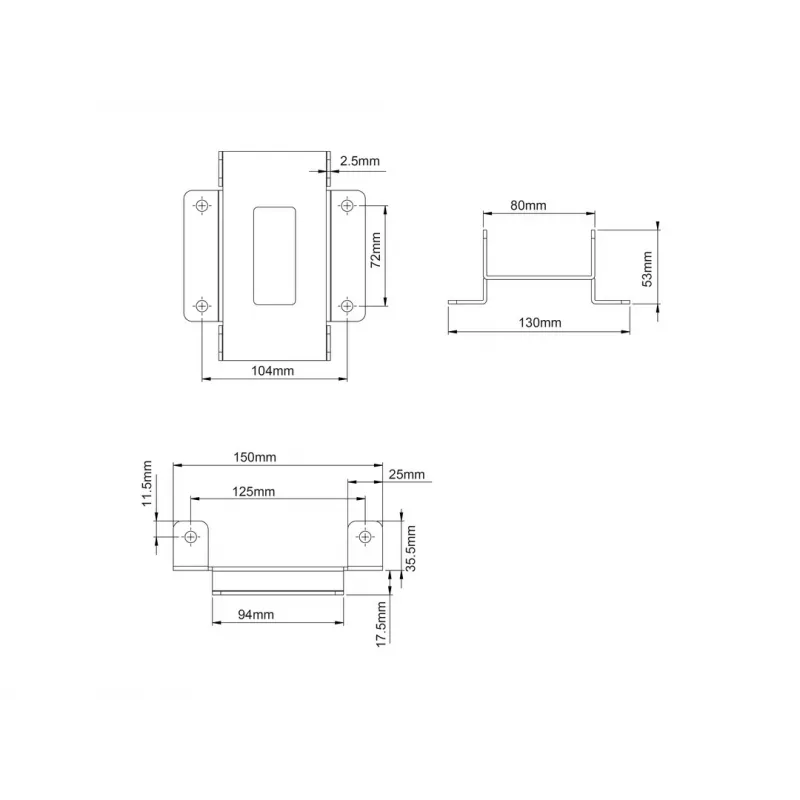

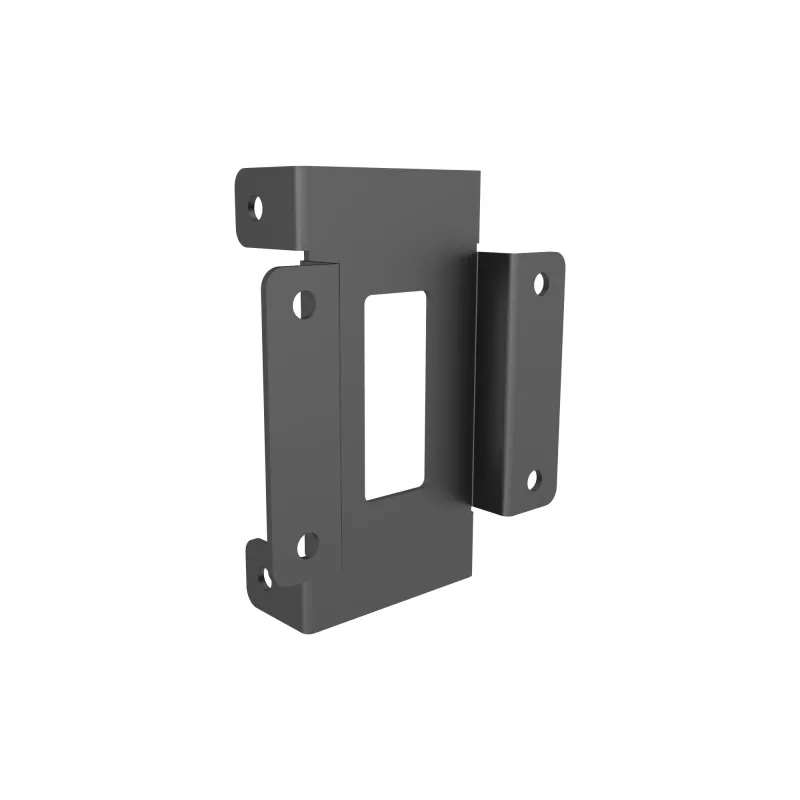

The Multibrackets M Pro Series Connecting plate is an optional steel device plate for the Pro Series mounting system. It measures 155 mm in width and 145 mm in depth, has a net weight of 2.1 kg and is available in black. The plate is designed to mount rails to pillars and to extend or reconfigure Pro Series installations while providing a durable connection point.

Advantages

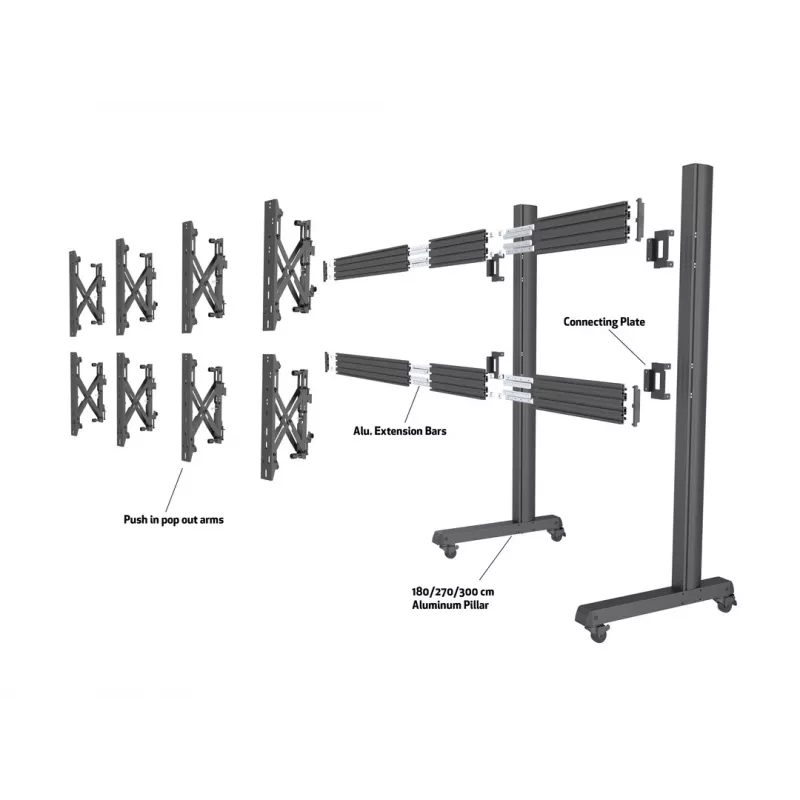

The connecting plate is made of steel for strength and durability, supports a maximum weight capacity of 90 kg, and fits into the modular M Pro Series ecosystem to enable changes and upgrades without replacing the entire installation. Its compact dimensions and solid construction provide a stable joining point for rails and pillars.

Suitable for

Key specifications

How to use

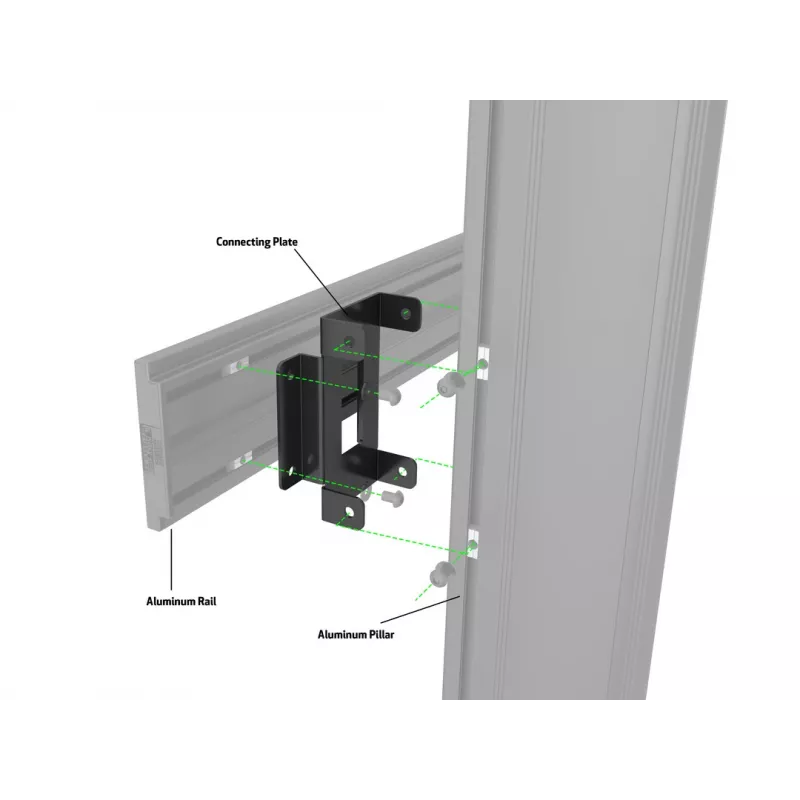

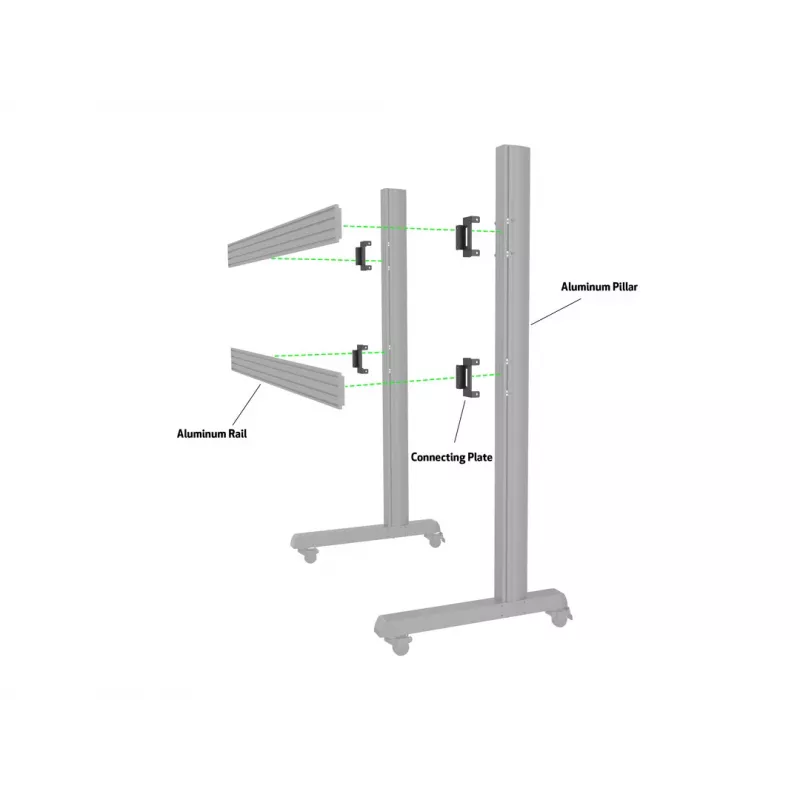

Position the connecting plate where a rail must be mounted to a pillar in the M Pro Series framework, align mounting holes on the plate with the corresponding rail and pillar attachment points, and fasten using appropriate screws and hardware compatible with the Pro Series system. Ensure the plate is tightened securely and check alignment before applying load.

Recommendations

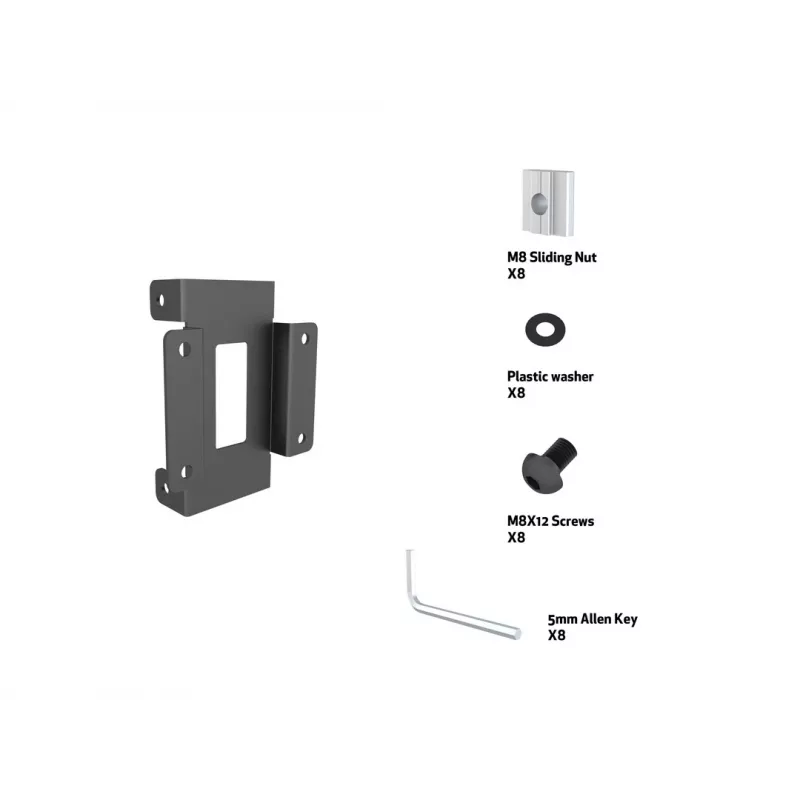

Use compatible Pro Series mounting hardware and fasteners, follow the Multibrackets installation guidelines, and verify that the combined load on the assembly does not exceed the specified 90 kg maximum capacity. For safety, inspect connections periodically and tighten as necessary.
