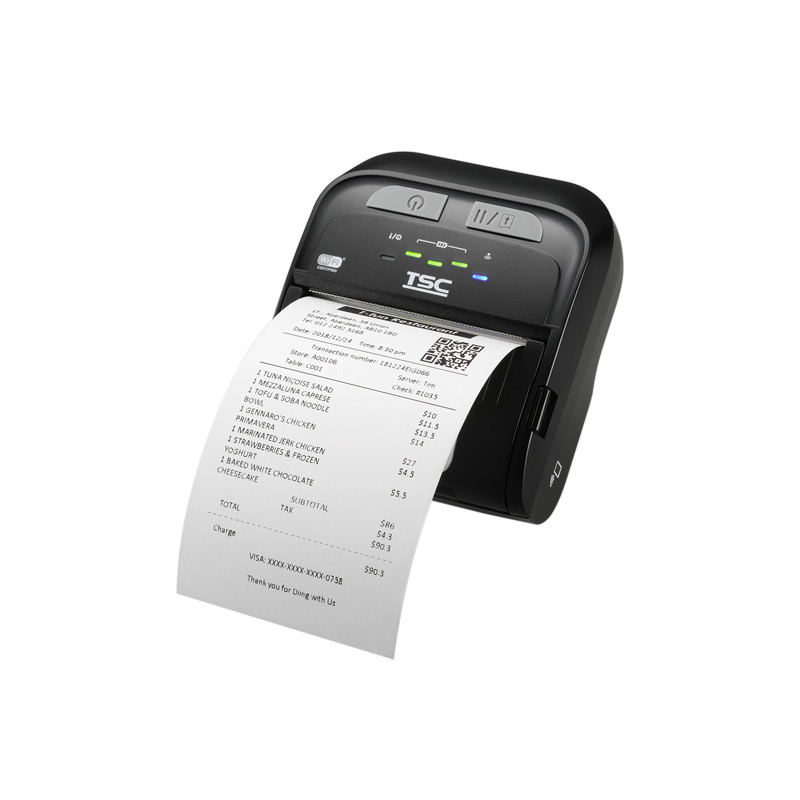

TSC TDM-30 - thermisch direct - mobiele printer - 60 - 160 µm - 4 cm - 80 mm - 7,2 cm

The TSC TDM-30 stands apart from typical mobile printers by combining a rugged IP54-rated chassis with versatile connectivity and a high-capacity battery, making it ideal for field service, retail, and logistics where reliability and speed are non-negotiable. Its direct thermal technology eliminates ink or toner costs, while the 203 dpi resolution ensures crisp, legible output on receipts, labels, and linerless media.

Highlights

• Direct thermal printing at 203 dpi for sharp, durable output without consumables.
• Fast print speed up to 102 mm/s (4 ips) to keep workflows moving.
• Supports media widths from 20 to 80 mm and thickness from 60 to 160 µm.
• Multiple connectivity options: USB 2.0, Bluetooth 4.2, and optional Wi-Fi 802.11 a/b/g/n.
• Rechargeable 3000 mAh Li-ion battery for extended cordless operation.
• Drop resistant up to 1.5 m and IP54 rated with protective case for harsh environments.
• OLED display for easy status monitoring and configuration.
• Emulates TSPL-EZD, compatible with EPL, ZPL, and DPL languages.

In daily use

Whether printing receipts on the go, generating shelf labels in a warehouse, or producing linerless tags in a retail environment, the TDM-30 delivers consistent performance. Its gap, black mark, and head open sensors ensure accurate media handling, while the 16 MB SDRAM and 8 MB Flash memory handle complex label formats with ease. The printer works seamlessly with Android, iOS, and Windows devices, enabling straightforward integration into existing systems.

Full specifications

• Print technology: Direct Thermal
• Resolution: 203 dpi
• Max print speed: 102 mm/s (4 ips)
• Max print width: 72 mm (2.83 inches)
• Media type: Direct thermal receipt, label, linerless
• Max media roll diameter: 80 mm (3.15 inches)
• Media width range: 20 - 80 mm (0.79 - 3.15 inches)
• Media thickness: 0.06 - 0.16 mm (60 - 160 µm)
• Connectivity: USB 2.0, Bluetooth 4.2, Wi-Fi 802.11 a/b/g/n (optional)
• Battery: Rechargeable Li-ion, 3000 mAh
• Drop resistance: 1.5 m (5 ft)
• IP rating: IP54 (with protective case)
• Sensors: Gap sensor, black mark sensor, head open sensor
• Emulation: TSPL-EZD (compatible with EPL, ZPL, DPL)
• OS compatibility: Android, iOS, Windows
• Memory: 16 MB SDRAM, 8 MB Flash
• Display: OLED display

Final note

The TSC TDM-30 is a dependable workhorse for mobile printing tasks, offering a balance of durability, speed, and connectivity that keeps operations running smoothly in demanding conditions.
