TV-beugel Vision VFM-F22 2,03 m 60 kg capaciteit

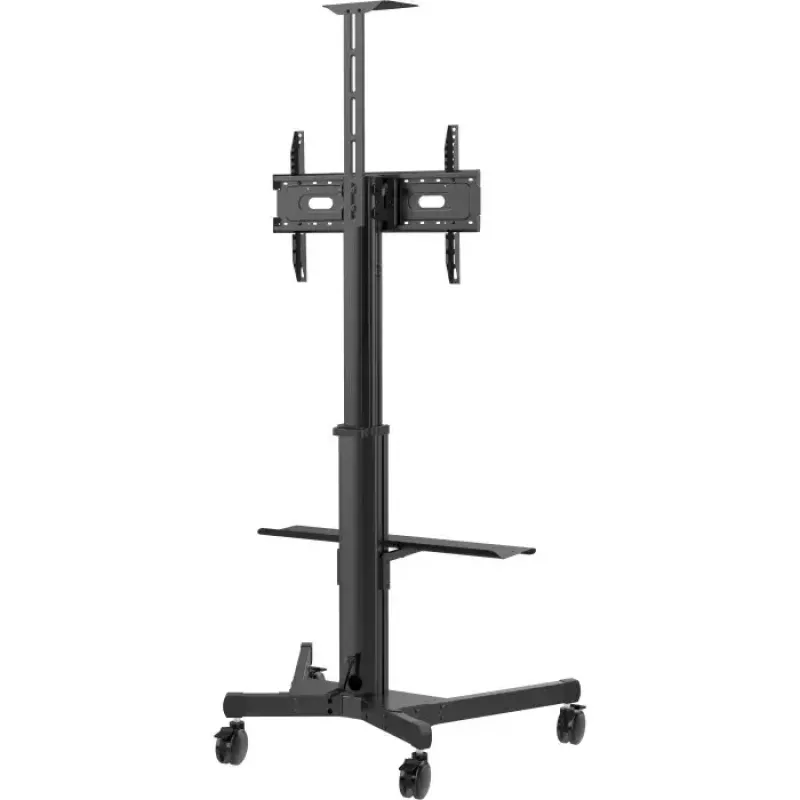

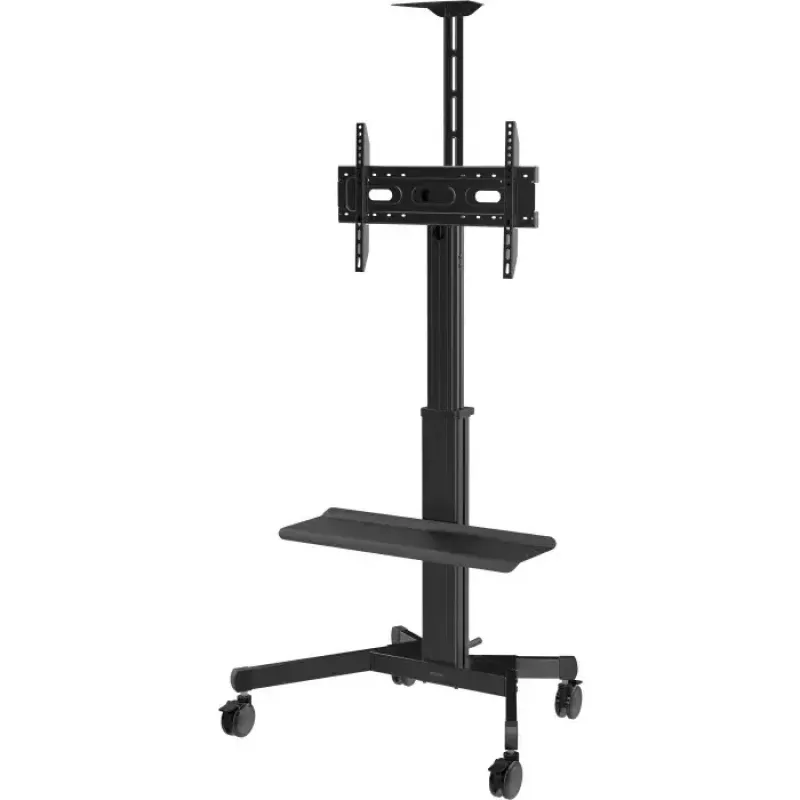

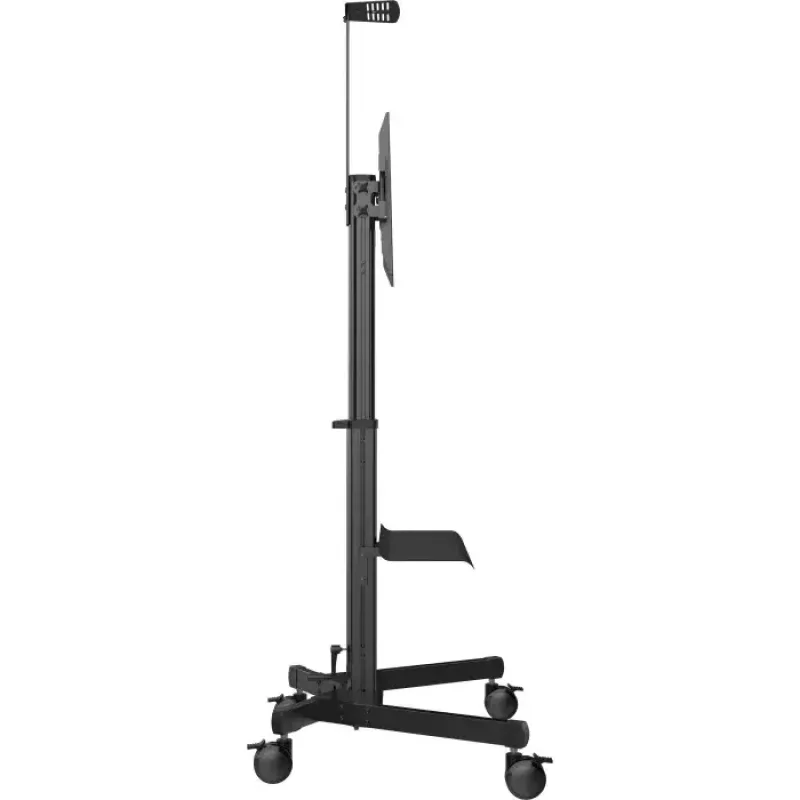

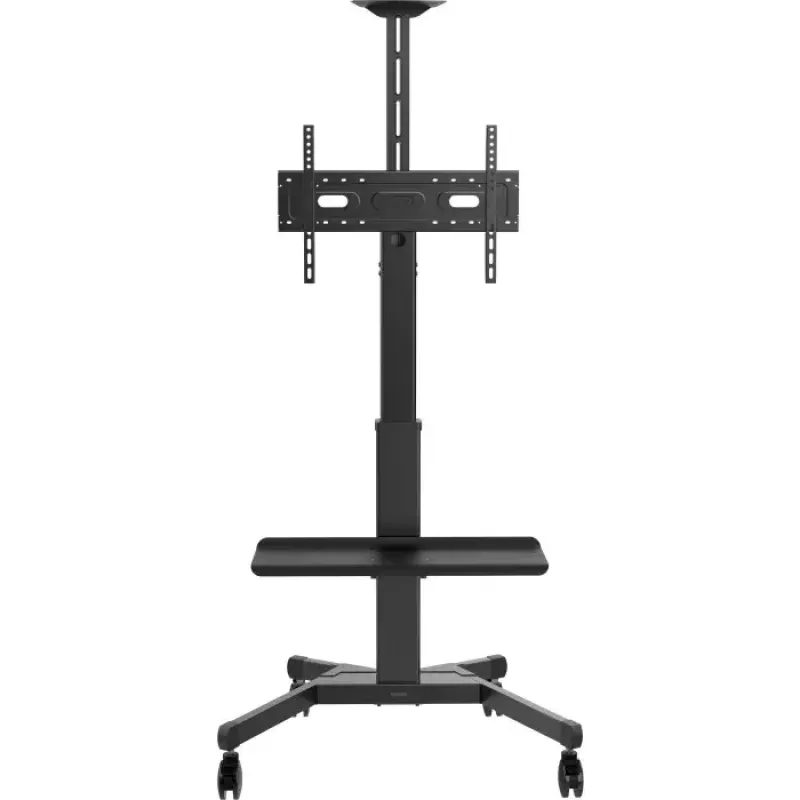

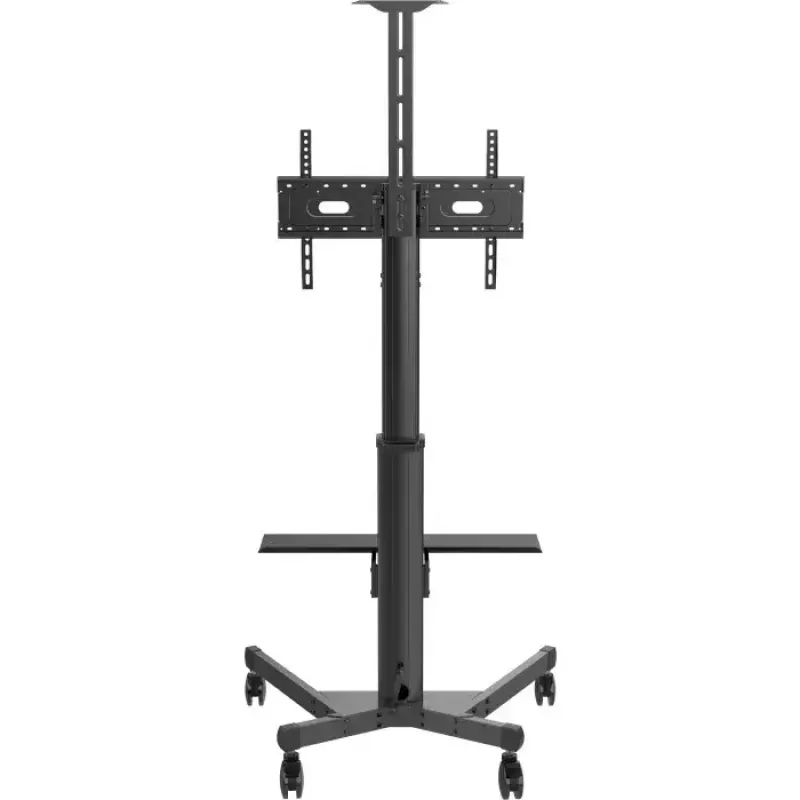

The Vision F22 floor stand is a mobile display cart with a premium aluminium column and rigid steel frame designed for 31–80" displays up to 60 kg (132 lbs). It features a larger bottom shelf sized for conference video bars and a small top shelf for a camera, built-in cable management, and an adjustable VESA mount that supports portrait rotation and tilt. Height is adjusted by a hand crank, and the stand includes 4" lockable casters for easy movement on carpeted surfaces. The product is supplied complete with all necessary components and is covered by a lifetime warranty.

Advantages

The aluminium column combined with a rigid steel frame increases structural rigidity while keeping overall weight manageable. The larger bottom shelf is specifically designed to fit Teams and Zoom video bars, and the small top shelf accommodates a conference camera. A 400 mm height adjustment range via a simple crank provides flexible viewing positions. Lockable 100 mm wheels enable smooth relocation and secure positioning. Integrated VESA100 mounting points and M4 stand-offs allow attachment of a mini PC behind the display, while included cable clips permit tidy cable routing up the column.

Suitable for

• AV rentals and event setups
• Conference rooms and boardrooms
• Meeting areas and training rooms in corporate offices
• Schools and lecture halls
• Any space requiring mobile large-format displays

Key specifications

• Supports displays 31–80"
• Safe working load: 60 kg (132 lbs)
• Compatible VESA patterns up to 600 x 400 mm
• Height adjustment range: 400 mm (16 in) via hand crank
• Portrait rotation: 90°
• Tilt adjustable on VESA mount to reduce reflections
• Bottom shelf dimensions: 800 x 250 mm (32 x 10 in)
• Top camera shelf: small, height adjustable
• Casters: 4" (100 mm) lockable wheels
• Mini PC mounting: VESA100 holes with M4 stand-offs
• Material: aluminium column with rigid steel frame

How to use

Mount the display to the VESA-compatible bracket, ensuring the display weight and VESA pattern are within the specified limits. Fit any video bar on the bottom shelf and a camera on the top shelf; both shelves are height adjustable to suit device height. Use the crank handle at the rear of the column to raise or lower the display within the 400 mm range. Adjust tilt on the VESA bracket to reduce glare and, if needed, rotate the display to portrait orientation. Route cables along the column using the supplied stick-on cable clips and lock the casters to secure the stand in position.

Recommendations

For safe operation, verify the display weight and VESA pattern before mounting, avoid exceeding the 60 kg load limit, and lock all wheels after positioning. For larger or heavier displays, consider a higher-capacity model.
