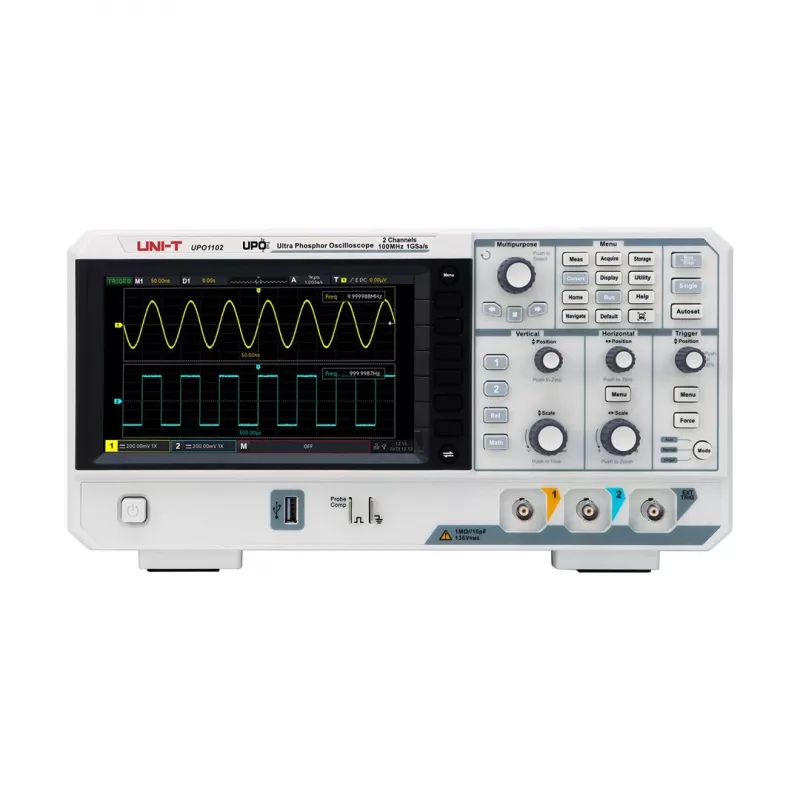

Uni-T UPO1102 100 MHz 2-kanaals digitale oscilloscoop

The Uni-T UPO1102 is a high-performance 100 MHz digital oscilloscope with 2 channels, offering a real-time sample rate of 1 GSa/s and a memory depth of 56 Mpts. Designed for professional engineers and technicians, it provides advanced triggering, automatic measurements, and serial bus decoding for efficient troubleshooting and analysis.

Advantages

With a waveform capture rate of up to 400,000 wfms/s in sequence mode, the UPO1102 captures rare glitches and transient events with ease. The 8-inch TFT LCD display with 800x600 resolution ensures clear waveform viewing. Its comprehensive trigger types and 34 automatic measurements streamline debugging tasks.

Suitable for

• Electronics repair and service labs
• Embedded system development
• Educational institutions and training
• Research and development

Key specifications

• Bandwidth: 100 MHz
• Channels: 2
• Real-time Sample Rate: 1 GSa/s
• Memory Depth: 56 Mpts
• Display: 8-inch TFT LCD, 800x600 pixels
• Vertical Sensitivity: 1 mV/div to 20 V/div
• Time Base Range: 2 ns/div to 1000 s/div
• Trigger Types: Edge, Pulse, Runt, Window, Nth Edge, Delay, Timeout, Duration, Setup/Hold, Slope, Video, Code, Bus
• Automatic Measurements: 34 types
• Math Functions: +, -, *, /, FFT, Integral, Differential, Square Root, User Defined
• Serial Bus Decoding: RS232/UART, I2C, SPI, CAN, LIN
• Interfaces: USB Host, USB Device, LAN, AUX Out
• Power Supply: 100V-240V AC, 50/60Hz

Recommendations

For optimal performance, use the included probes and ensure proper grounding. The oscilloscope supports firmware updates via USB. Refer to the manual for advanced triggering and decoding setup.
