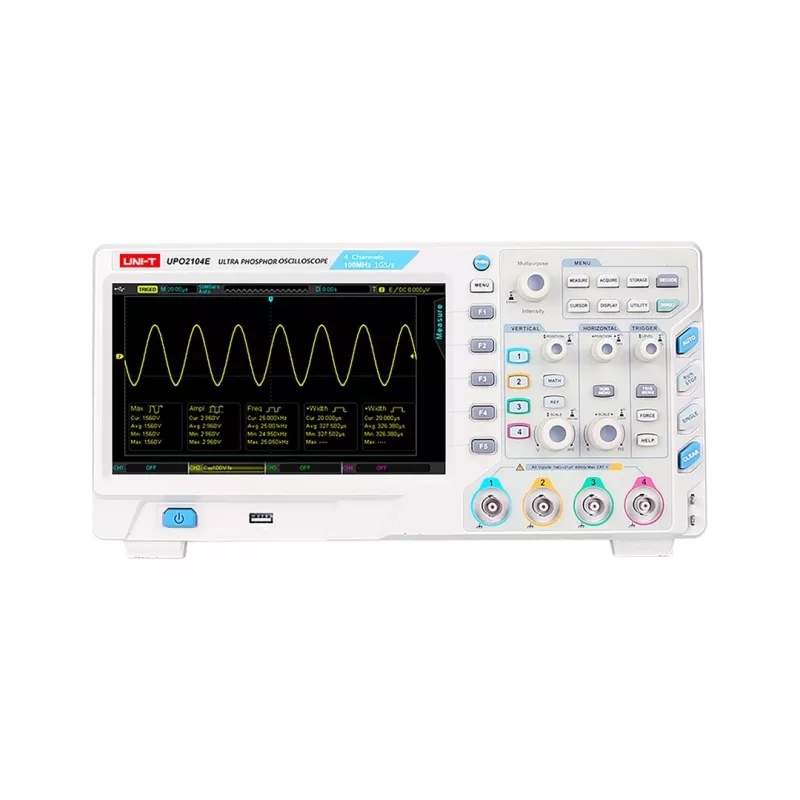

Uni-T UPO2102 digitale oscilloscoop 100 MHz 2 kanalen 1 GS/s

The Uni-T UPO2102 is a high-performance digital oscilloscope designed for professional engineers and technicians. With a bandwidth of 100 MHz, 2 analog channels, and a real-time sample rate of 1 GS/s, it delivers precise waveform capture and analysis. The 8-inch TFT LCD display with 800x600 resolution provides clear visualization, while the 56 Mpts memory depth and 500,000 wfms/s waveform capture rate ensure detailed signal examination.

Advantages

This oscilloscope offers advanced triggering options including Edge, Pulse, Runt, Window, Nth Edge, Delay, Timeout, Duration, Setup/Hold, Slope, Video, Code, Sequence, IIC, SPI, RS232/UART, CAN, LIN, FlexRay, I2S, MIL-STD-1553, and ARINC 429. It features 34 automatic measurements and serial bus decoding for IIC, SPI, RS232/UART, CAN, and LIN (optional). The compact design and intuitive interface make it suitable for both lab and field use.

Suitable for

• Electronics repair and troubleshooting
• Embedded system development
• Educational laboratories
• Research and development

Key specifications

• Bandwidth: 100 MHz
• Analog Channels: 2
• Real-time Sample Rate: 1 GS/s
• Memory Depth: 56 Mpts
• Waveform Capture Rate: 500,000 wfms/s
• Display: 8-inch TFT LCD, 800x600 pixels
• Vertical Resolution: 8-bit
• Vertical Sensitivity: 1 mV/div ~ 20 V/div
• Rise Time: < 3.5 ns
• Input Impedance: 1 MΩ ±1% || 18 pF ±3 pF
• Time Base Range: 2 ns/div ~ 1000 s/div
• Trigger Types: Edge, Pulse, Runt, Window, Nth Edge, Delay, Timeout, Duration, Setup/Hold, Slope, Video, Code, Sequence, IIC, SPI, RS232/UART, CAN, LIN, FlexRay, I2S, MIL-STD-1553, ARINC 429
• Interface Ports: USB Host, USB Device, LAN, AUX Out
• Automatic Measurements: 34 types
• Serial Bus Decoding: IIC, SPI, RS232/UART, CAN, LIN (optional)
• Power Supply: 100V-240V AC, 50/60Hz

Recommendations

For optimal performance, use with compatible probes and accessories. The oscilloscope is ideal for capturing and analyzing complex signals in various applications.
