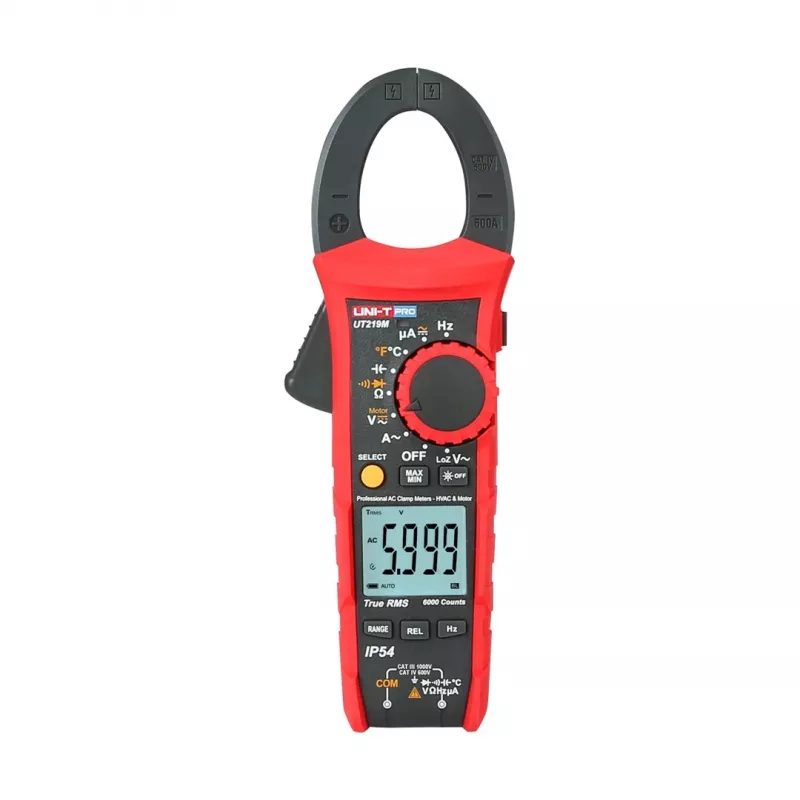

UNI-T UT219M professionele digitale stroomtangmultimeter 1000A True RMS CAT III 1000V

The UNI-T UT219M is a professional-grade digital clamp meter designed for demanding electrical measurements. With a 42 mm jaw opening, True RMS, and a wide range of functions including AC/DC current up to 1000A, AC/DC voltage, resistance, capacitance, frequency, temperature, inrush current, low-pass filter (VFC), low impedance (LoZ), and non-contact voltage (NCV) detection, this meter is ideal for industrial, commercial, and residential applications. It features a 6000-count display, auto backlight, flashlight, and is safety rated CAT III 1000V / CAT IV 600V.

Advantages

High accuracy and reliability for professional electricians and technicians. True RMS ensures accurate measurements on non-linear loads. Inrush current measurement captures motor startup currents. VFC function filters out high-frequency noise for stable voltage readings on variable frequency drives. LoZ function eliminates ghost voltages. NCV detection and flashlight enhance safety and convenience in dark or tight spaces.

Suitable for

• Industrial electrical maintenance
• HVAC system troubleshooting
• Automotive electrical diagnostics
• Residential and commercial wiring inspections
• Renewable energy system testing (solar, wind)

Key specifications

• Display Count: 6000
• AC Current Range: 60A / 600A / 1000A
• DC Current Range: 60A / 600A / 1000A
• AC Voltage Range: 6V / 60V / 600V / 1000V
• DC Voltage Range: 6V / 60V / 600V / 1000V
• Resistance Range: 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ
• Capacitance Range: 6nF to 60mF
• Frequency Range: 10Hz to 10MHz
• Temperature Range: -40°C to 1000°C
• Jaw Opening: 42 mm
• Safety Rating: CAT III 1000V, CAT IV 600V
• True RMS: Yes
• Inrush Current Measurement: Yes
• Low Pass Filter (VFC): Yes
• Low Impedance (LoZ): Yes
• Non-Contact Voltage (NCV): Yes
• Flashlight: Yes
• Auto Backlight: Yes
• Battery Type: 3 x 1.5V AAA

Recommendations

For professional use, always ensure the meter is set to the correct range and function before measuring. Use appropriate personal protective equipment (PPE) when working near live circuits. The UT219M is a versatile tool that meets the needs of both experienced electricians and advanced DIY enthusiasts.
