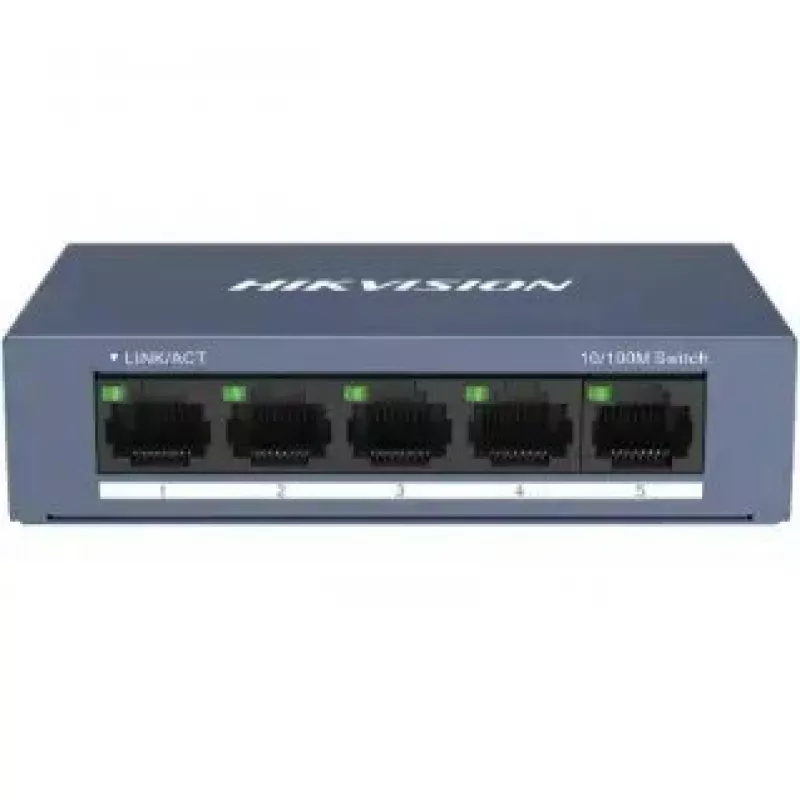

Unmanaged switch Hikvision DS-3E0105-O 5-poorts Fast Ethernet 10/100

The Hikvision DS-3E0105-O is an unmanaged 5-port Fast Ethernet switch providing five 10/100 Mbps RJ-45 ports and a total switching capacity of 1 Gbit/s. With a MAC address table that stores up to 1000 entries and a compact, grey housing designed for wall mounting, this switch is suitable for small network extensions and simple device aggregation. It operates from a 5V DC input and requires no configuration.

Advantages

The DS-3E0105-O offers straightforward plug-and-play operation, a lightweight and compact form factor for easy installation on walls, and a reliable MAC address table for basic traffic forwarding. Its unmanaged design eliminates the need for setup while providing stable 10/100 Mbps connectivity for multiple wired devices.

Suitable for

• Small office or home network expansions
• Connecting IP cameras, NVRs and other networked surveillance devices
• Aggregating wired devices such as PCs, printers and access points

Key specifications

• Manufacturer: Hikvision
• Model: DS-3E0105-O
• Switch type: Unmanaged
• Ports: 5 x Fast Ethernet (10/100) RJ-45
• Switching capacity: 1 Gbit/s
• MAC address table: 1000 entries
• Power input: 5V DC
• Colour: Grey
• Wall-mountable: Yes
• Weight: 0.15 kg

How to use

Mount the Hikvision DS-3E0105-O on a suitable wall surface using appropriate screws. Connect the switch to a 5V DC power supply and plug Ethernet cables from your router, cameras, NVR or client devices into the RJ-45 ports. The switch will automatically detect link speeds (10/100 Mbps) and forward traffic without any configuration. Monitor device connectivity by checking link LEDs on the front panel.

Recommendations

Install the switch in a dry, ventilated location and use a stable 5V DC adapter that meets the manufacturer’s specifications. For best performance, connect high-priority devices directly to dedicated ports and avoid overloading the switch beyond typical small-network traffic levels.
