UPS-accessoire Eaton EBMCBL72

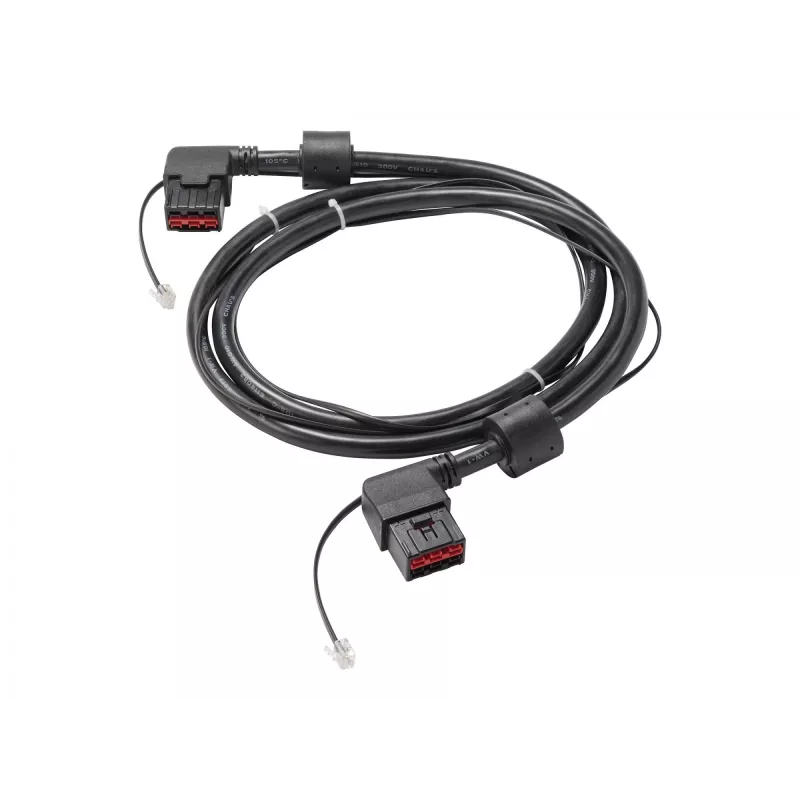

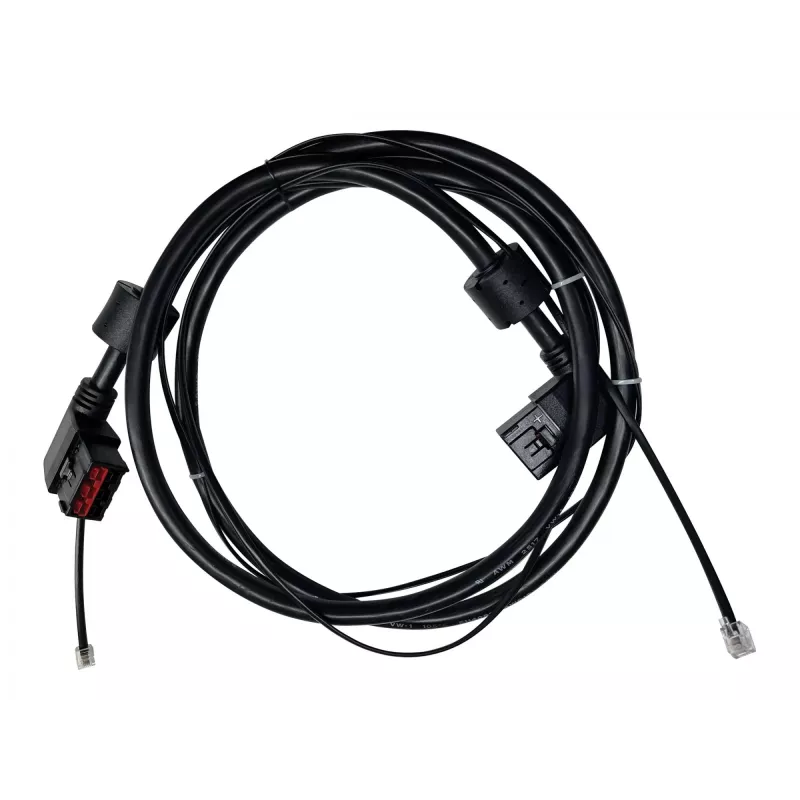

The Eaton EBMCBL72 is a black UPS accessory cable designed for use with the Eaton 9PXEBM72RT external battery module. It connects the external battery module to compatible 9PX UPS units, enabling additional battery capacity and extended runtime during power outages while maintaining proper communication between devices.

Advantages

The EBMCBL72 cable provides a reliable, manufacturer-compatible connection that preserves UPS functionality and monitoring. Its purpose-built design ensures correct fit and communication with the 9PXEBM72RT module, supporting extended runtime without altering the UPS hardware. The black finish matches Eaton equipment aesthetics and minimizes visual impact in equipment racks.

Suitable for

Key specifications

How to use

Power down the UPS according to the manufacturer’s instructions before installing the cable. Connect one end of the EBMCBL72 to the 9PXEBM72RT external battery module and the other end to the designated external battery input on the 9PX UPS. Ensure connectors are fully seated and secure any cable routing to prevent strain. After installation, follow the UPS startup procedure and verify that the UPS recognizes the external battery module in its status or management interface.

Recommendations

Use only genuine Eaton accessories like the EBMCBL72 with Eaton 9PX systems to ensure correct communication and support. Inspect the cable for damage before installation and avoid routing near high-interference power lines. For safety and warranty considerations, refer to the Eaton 9PX and 9PXEBM72RT manuals for detailed installation and handling instructions.
