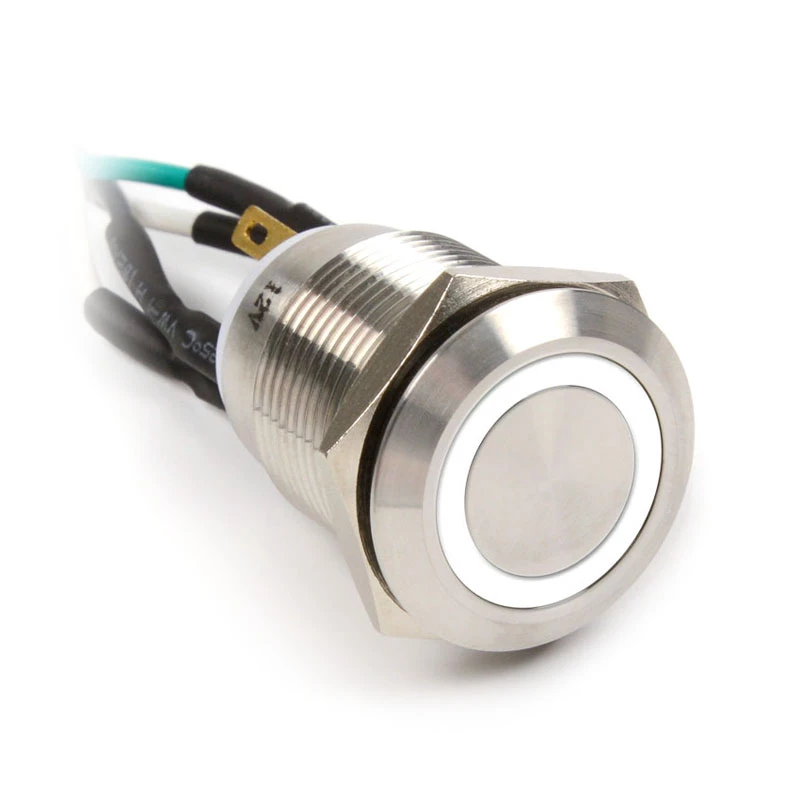

Vandaalbestendige drukknop Impactics LAN_22 serie, 19 mm, IP67, witte LED, zilver

The Impactics LAN_22 series vandal-resistant push button is a heavy-duty 19 mm diameter control designed for applications requiring a sealed, durable tactile switch with visual signalling. Rated to IP67, the device resists dust ingress and temporary water immersion, making it suitable for both indoor and outdoor installations. The actuator features a silver finish and an integrated white LED indicator for clear status feedback. The switch construction emphasizes mechanical robustness and a tamper-resistant face suitable for use on access control panels, industrial equipment, kiosks and other high-traffic or exposed locations.

Advantages

The vandal-resistant design reduces the risk of accidental or intentional damage while maintaining responsive tactile feedback. IP67 sealing provides protection against dust and short-term submersion, preserving electrical contacts and the internal LED. The integrated white LED offers visible status indication without requiring additional housings or separate lamps. The compact 19 mm form factor allows installation in panels with limited space while delivering a solid metal feel and consistent actuation pressure.

Suitable for

• Outdoor control panels and entrance systems
• Access control and security devices
• Industrial machinery and equipment operator stations
• Self-service kiosks and ticketing terminals
• Public infrastructure and transit interfaces

Key specifications

• Actuator diameter: 19 mm
• Ingress protection: IP67 (dust tight, protection against temporary immersion)
• Indicator: integrated white LED
• Finish: silver metal actuator
• Vandal-resistant/tamper-resistant mechanical design
• Panel-mount form factor suitable for front-panel installation

How to use

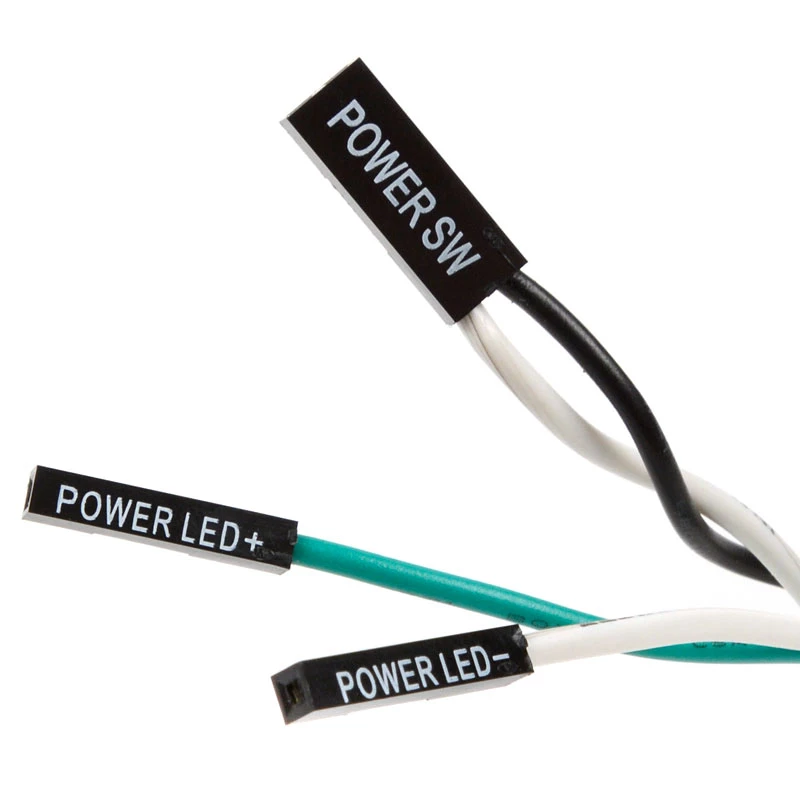

Install the push button into a compatible 19 mm panel cutout following the panel thickness and mounting instructions provided by the system designer. Ensure correct wiring of the LED and switch contacts according to the electrical diagram for your control system, observing polarity if the LED is polarity-sensitive. Tighten the mounting hardware to achieve a water-tight seal at the panel interface. After wiring and mounting, verify LED operation and switch actuation under expected environmental conditions before placing the assembly into service.

Recommendations

Use the switch on panels that allow correct sealing and cable routing to maintain IP67 performance. Regularly inspect the mounting seal and wiring connections in environments with heavy contamination or mechanical abuse. For LED longevity, operate within the specified voltage/current limits defined by the system design to avoid premature LED failure.
