Verlengsnoer Brennenstuhl 1151600030

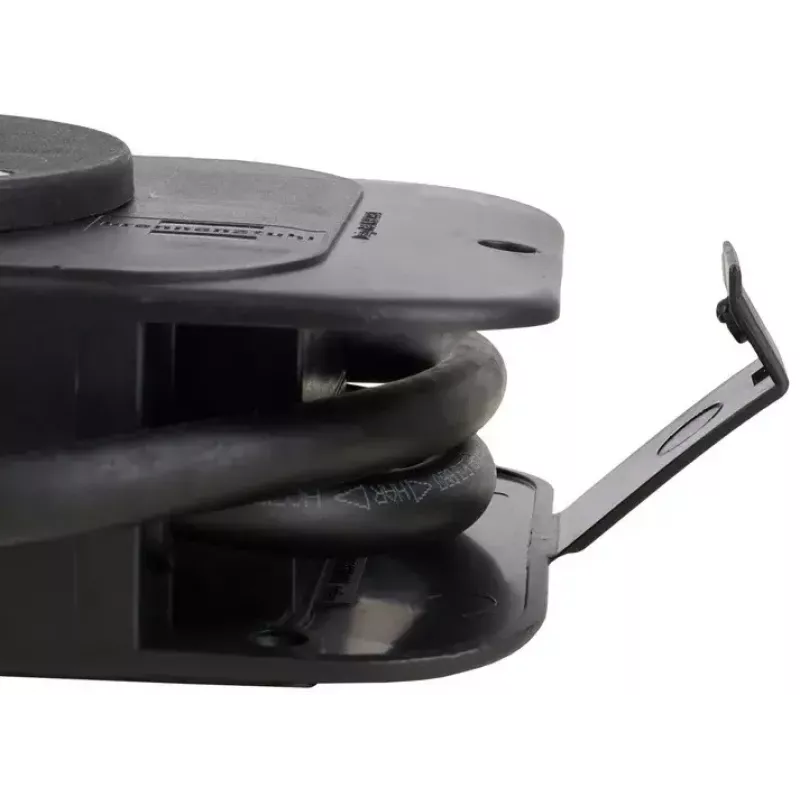

The Brennenstuhl 1151600030 power extension is a robust outdoor power station with a 1.5 m rubber-neoprene cable designed for camping, motorhome and other outdoor applications. With IP44 protection, a highly break-proof plastic housing and an integrated roll-up device for tidy cable storage, the unit is suitable for permanent outdoor use in protected locations and can be hung on a wall if required. It supplies 230 V at up to 16 A and includes overheating protection and a single-pole safety cut-out.

Advantages

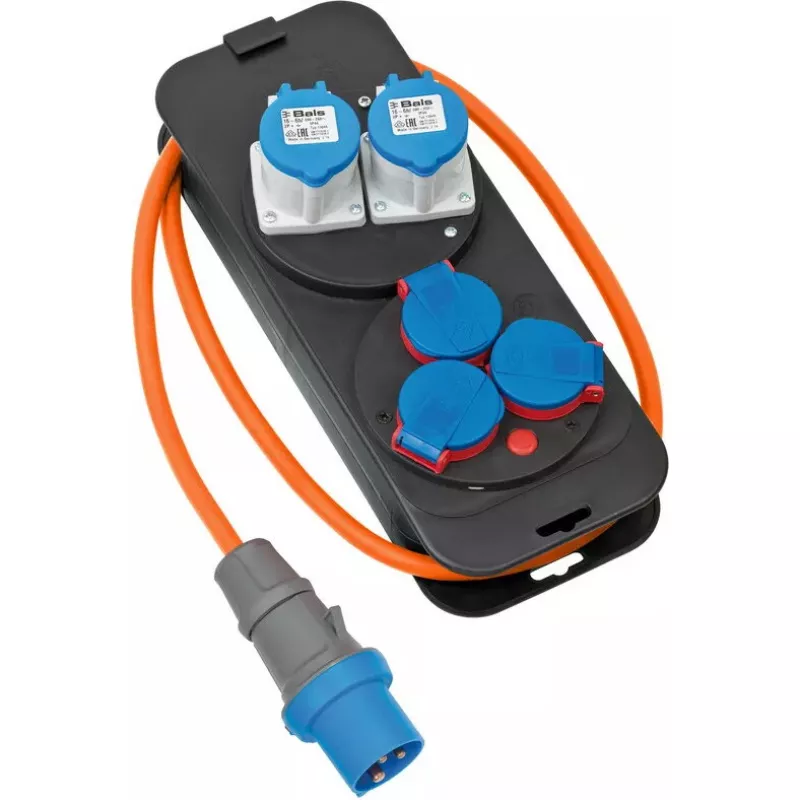

This caravan extension lead combines durable H07RN-F rubber-neoprene cable construction with IP44 splash- and dust-protection, making it suitable for exposed outdoor conditions. The housing is impact-resistant plastic and the device includes a roll-up mechanism for convenient storage. The unit provides both CEE 230 V/16 A connections and three earthed 230 V sockets, delivering flexible connection options for varied outdoor equipment.

Suitable for

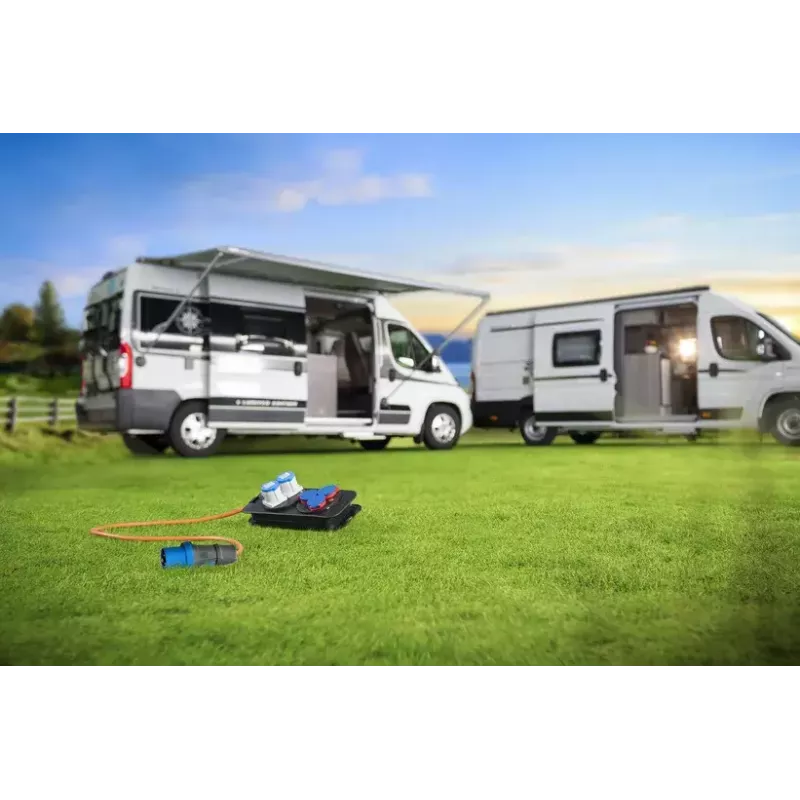

• Camping and motorhome power distribution
• Outdoor installations in protected locations (splash water and dust resistant)
• Temporary or semi-permanent connection of power tools and appliances up to 16 A
• Caravan and trailer power supply

Key specifications

• Plug: CEE 230 V / 16 A
• Sockets: 2x CEE 230 V / 16 A, 3x 230 V earthed contact sockets
• Cable length: 1.5 m
• Cable designation: H07RN-F 3G2.5 (rubber-neoprene)
• Cable colour: orange
• Maximum current: 16 A
• Protection class: IP44
• Overheating protection and 1-pole safety cut-out
• Dimensions (W x D x H): 135 x 350 x 120 mm
• Weight: 1.24 kg
• Colour: Black

How to use

Connect the CEE 230 V/16 A plug to a compatible supply outlet and route the cable to the required location. Use the provided sockets to connect appliances or devices, ensuring the total current draw does not exceed 16 A. The roll-up device can be used to store excess cable when not in use. Mount the unit on a wall or fix it in a protected outdoor location if permanent installation is required. Do not expose the device to direct heavy rain or submersion; observe IP44 limitations.

Recommendations

Check connected devices for combined current draw before use, avoid exceeding the 16 A maximum, and inspect the H07RN-F cable for damage regularly. Use only with compatible CEE 230 V/16 A supply points and keep the unit mounted or placed in a sheltered spot to maintain IP44 protection effectiveness.
