Video-deurintercom Fanvil i61

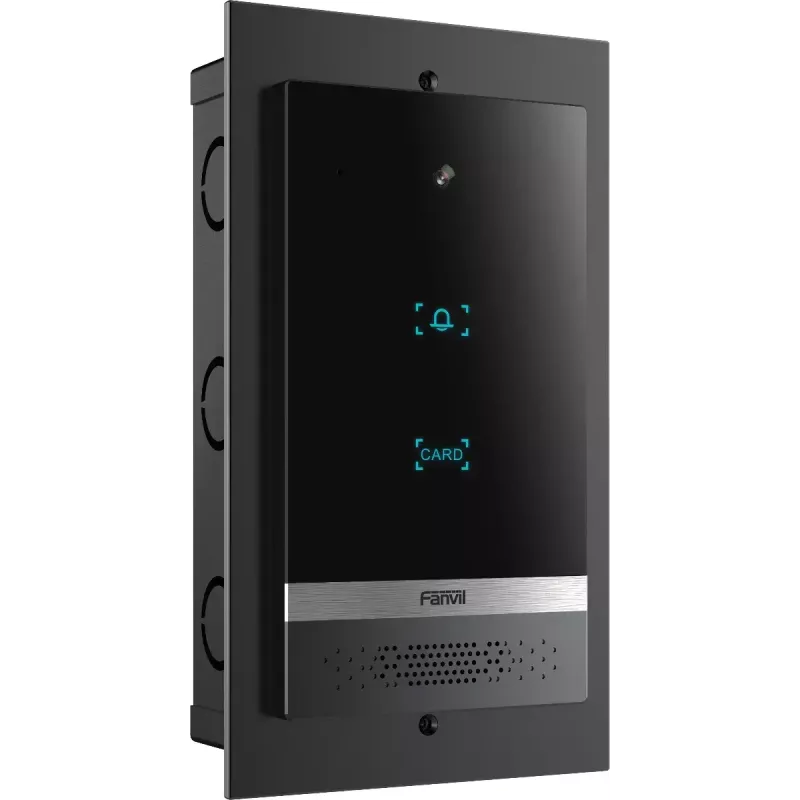

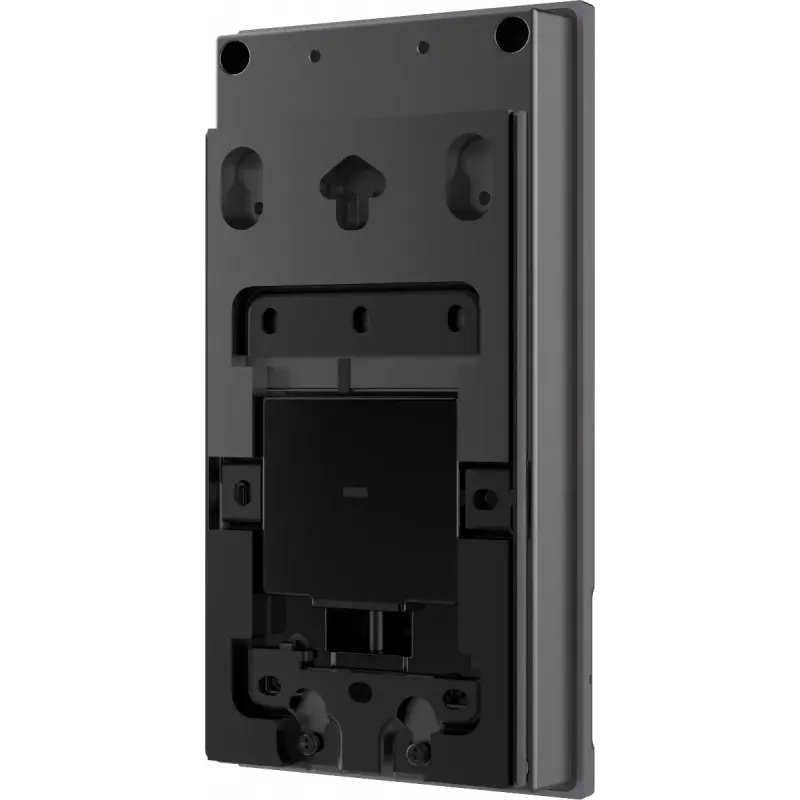

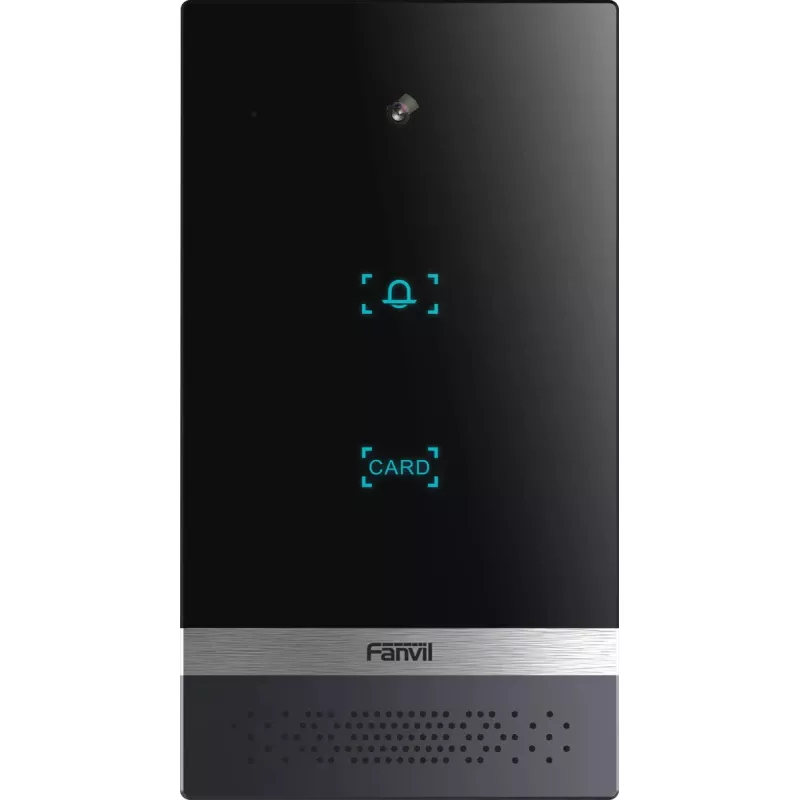

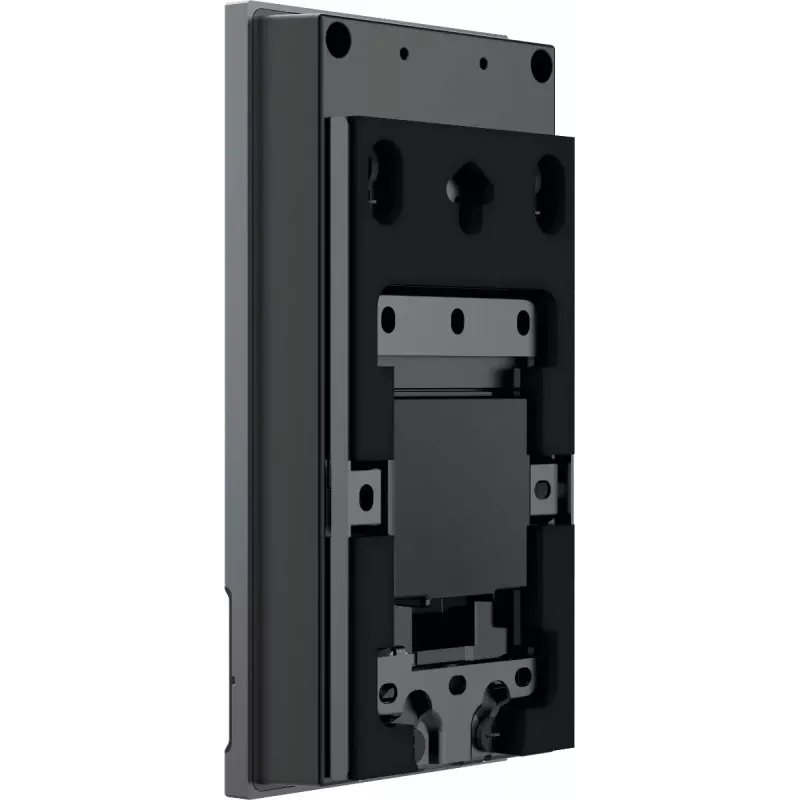

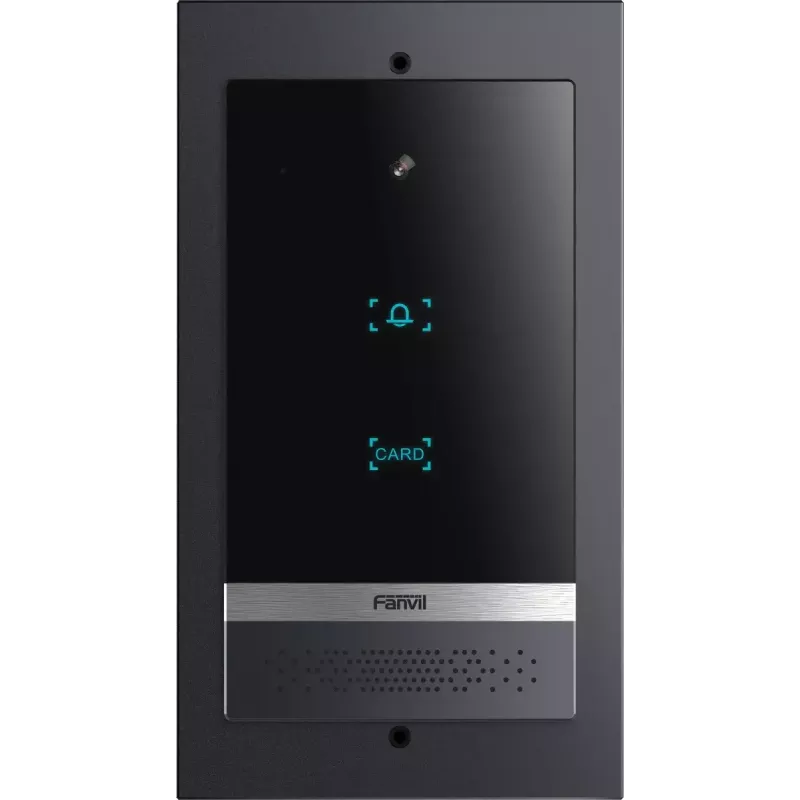

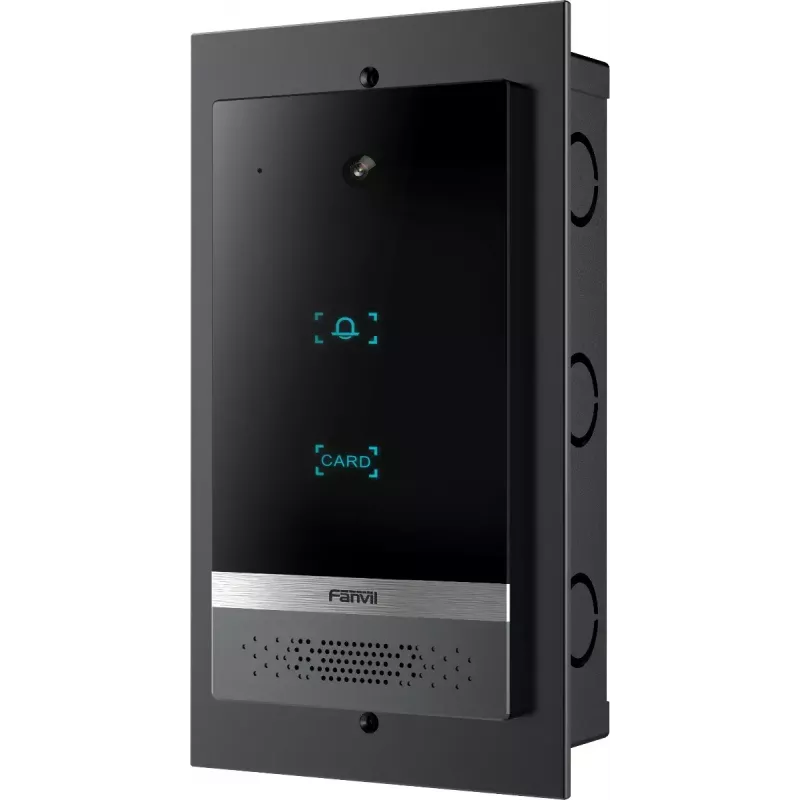

The i61 video door phone combines access control, intercom and security protection in a single device based on SIP and ONVIF protocols. Housed in an aluminum alloy enclosure with a single speed-dial touch button and a 2 MP camera, the i61 is designed for outdoor use and supports multiple access modes, audio/video calling and integration with other security equipment.

Advantages

i61 offers a robust outdoor design with IP66 and IK07 protection ratings for water, dust and impact resistance. The unit supports SIP and ONVIF standards for easy interoperability, provides a high-resolution 2 megapixel camera for video calls, and a dedicated speed-dial touch button for fast calling. Multiple input and output interfaces enable integration with alarms, locks and building systems for flexible access-control solutions.

Key specifications

• Protocols: SIP, ONVIF
• Camera: 2 Megapixel
• Housing material: Aluminum alloy
• Protection ratings: IP66, IK07
• Controls: Single speed-dial touch button
• Functions: Audio/video calls, access control, intercom, security integration
• Interfaces: Multiple input/output ports for external device integration

How to use

Install the i61 at a suitable outdoor location, ensuring secure mounting and proper wiring to power and network. Configure SIP and ONVIF settings in the device web interface or management software, connect desired external devices (electric lock, alarm, etc.) to the input/output ports, and set preferred access control modes. Use the speed-dial touch button to initiate audio/video calls; respond and grant access through the management interface or connected access-control hardware.

Recommendations

For reliable long-term operation, mount the i61 in a sheltered position when possible, use correct sealing and cable glands for network and power entries, and integrate with a compatible SIP/ONVIF management system. Regularly check connections and firmware updates to maintain security and functionality.
