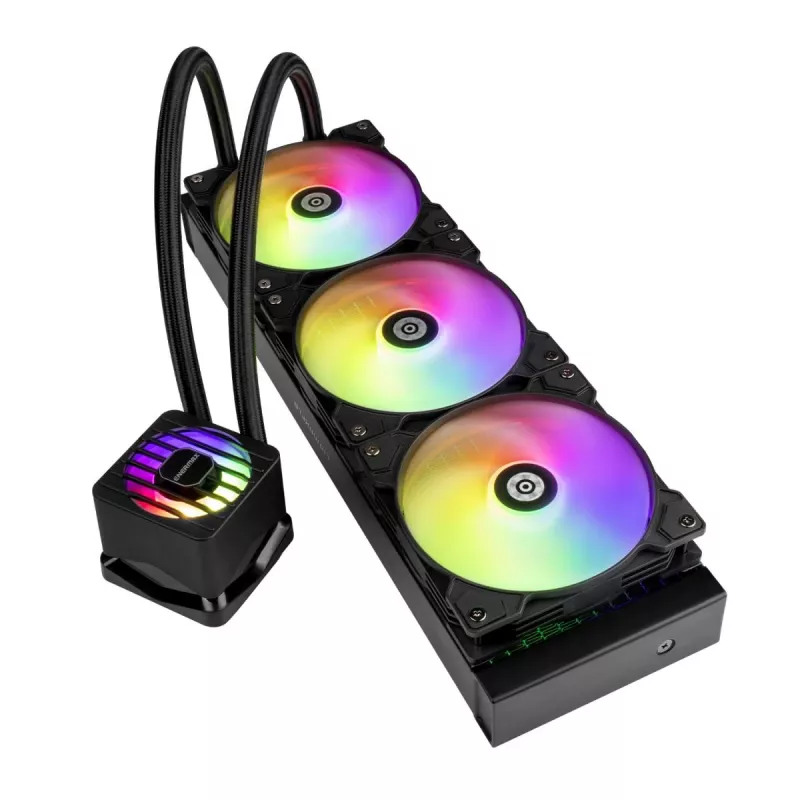

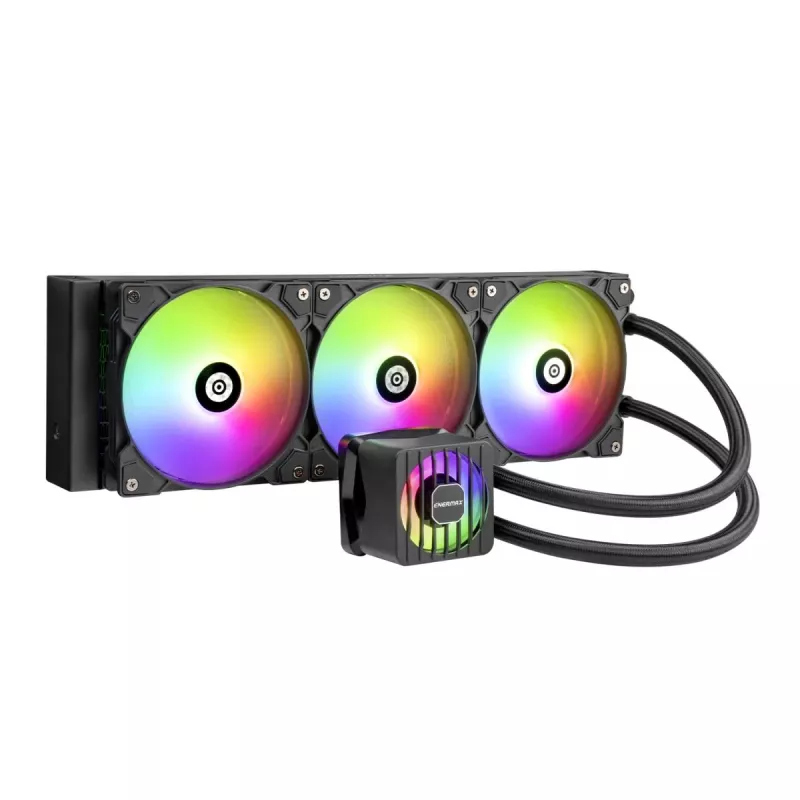

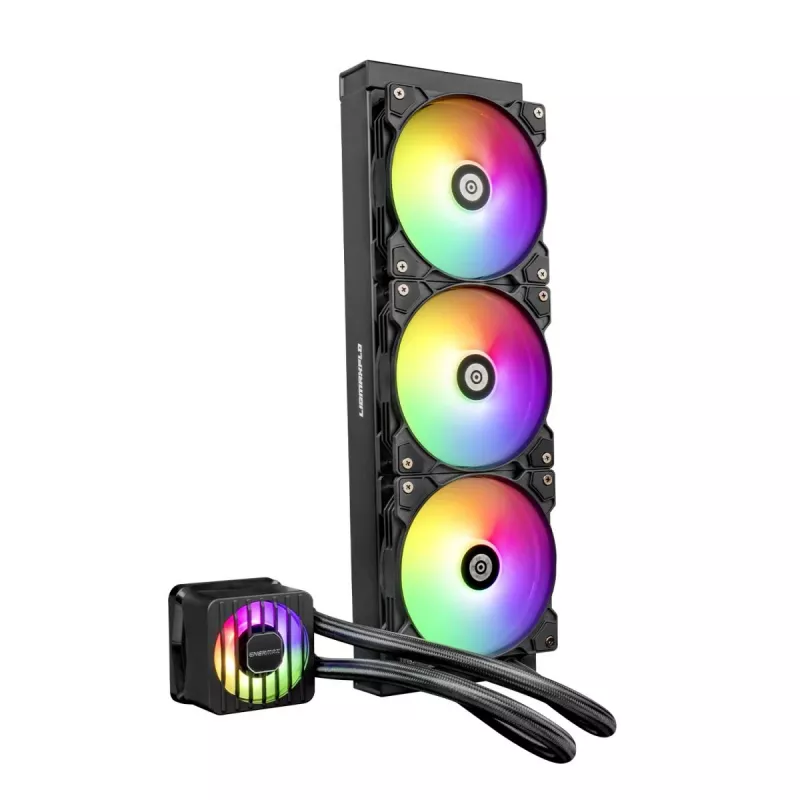

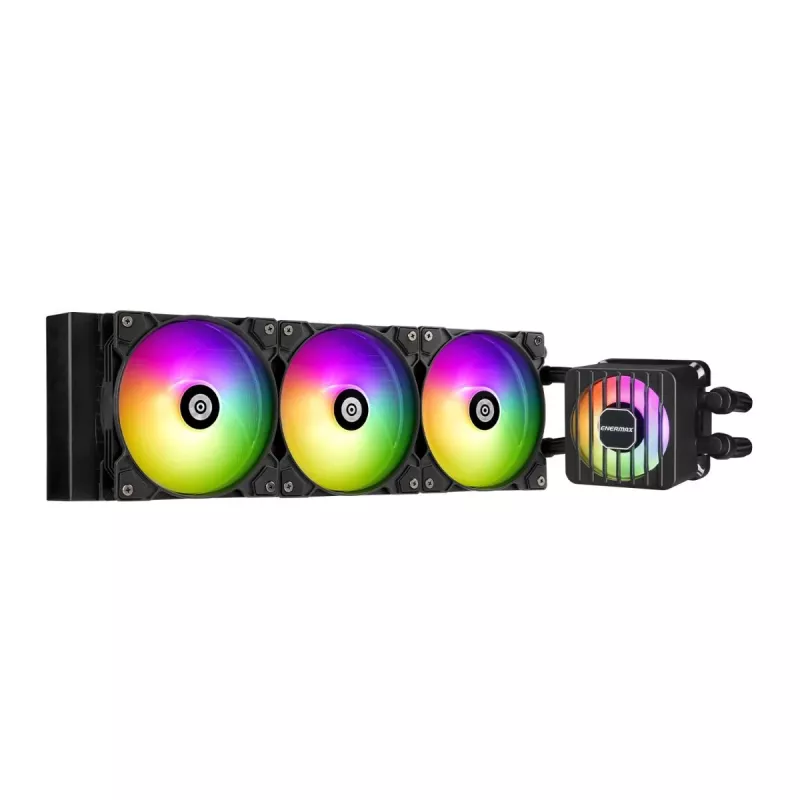

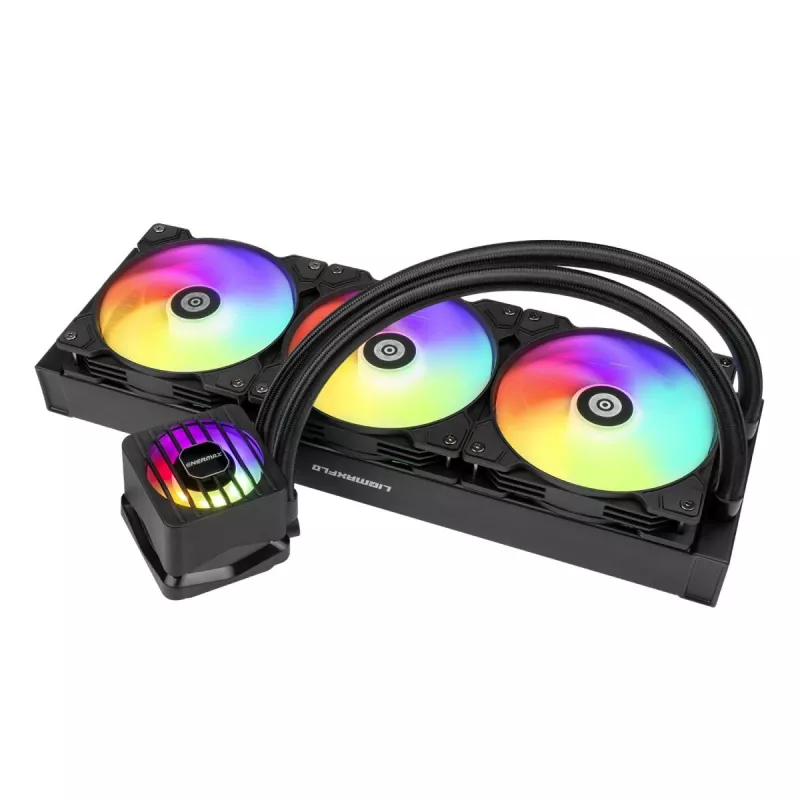

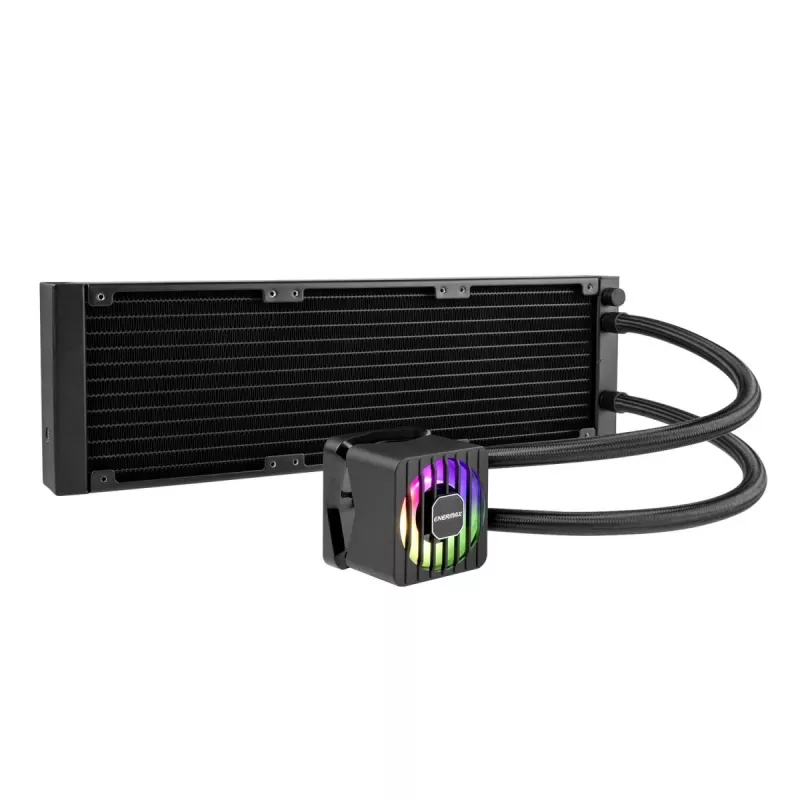

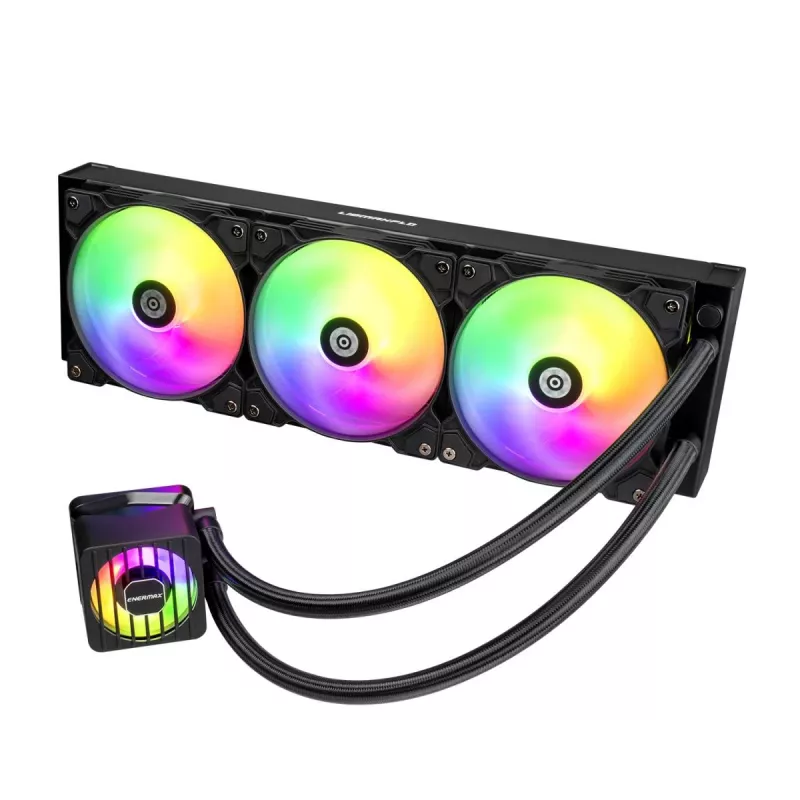

Vloeistofkoelingsset Enermax LIQMAXFLO ELC-LMF360T-ARGB

The LIQMAXFLO series is an AIO CPU cooler from ENERMAX that combines the Dual-Chamber Xtreme PWM pump and Silent Flow fans to improve cooling performance while maintaining low noise. Designed as an Intel® compatible vendor liquid cooling solution, LIQMAXFLO supports Intel® Core™ 14th gen processors and is also compatible with a wide range of Intel and AMD sockets. The cooler includes a 38mm-thick radiator for increased coolant capacity, a magnetic rotatable pump cover, a 60mm ARGB VRM fan, pre-applied premium thermal grease with an extra tube, and a refillable coolant port with an extra bottle included.

Advantages

LIQMAXFLO delivers higher pump pressure and flow thanks to the Dual-Chamber Xtreme pump with Shunt-Channel technology, which can improve cooling efficiency and reduce thermal output under load. The Silent Flow radiator fans use high-pressure blades and F.D.B. bearings for increased airflow and air pressure at low noise. A 60mm VRM fan with a 3-phase 6-pole motor provides targeted cooling for motherboard VRMs, and ARGB lighting enables synchronized visual effects. The magnetic, rotatable pump cover allows easy orientation of the logo for customization, and the refillable coolant system with an additional bottle simplifies maintenance.

Key specifications

• Pump type: Dual-Chamber Xtreme PWM pump with Shunt-Channel technology
• Pump speed: 1,200–3,000 RPM
• Radiator thickness: 38 mm
• Radiator fan speed: 500–1,800 RPM (Silent Flow, F.D.B. bearing)
• VRM fan: 60 mm ARGB, 3-phase 6-pole motor, 500–3,000 RPM
• ARGB lighting: motherboard sync or RGB control box with 10 effects
• Pre-applied thermal grease: Dow Corning® TC-5888 plus extra tube
• Refillable coolant: refill port and extra coolant bottle included
• Socket compatibility (Intel): LGA 1700/1200/115x/2066/2011/2011-3/1366
• Socket compatibility (AMD): AM5/AM4/AM3+/FM2+/FM1

How to use

Install the radiator and fans in your PC case according to the case layout and the cooler manual, mount the pump block onto the CPU socket using the provided brackets for the target Intel or AMD socket, and connect the pump, radiator fan(s) and VRM fan to PWM headers or the included hub for automatic speed control. Use the pre-applied Dow Corning® TC-5888 thermal grease or the extra tube if reapplication is needed. To refill coolant, open the refill port with a screwdriver and pour the included coolant bottle, then securely close the port before operating the system.

Recommendations

For best thermal performance, ensure good case airflow, mount fans according to the desired push/pull configuration, keep the VRM fan unobstructed for optimal motherboard cooling, and follow the manual for secure pump and radiator installation. Use the included extra thermal grease and coolant for maintenance as needed.
