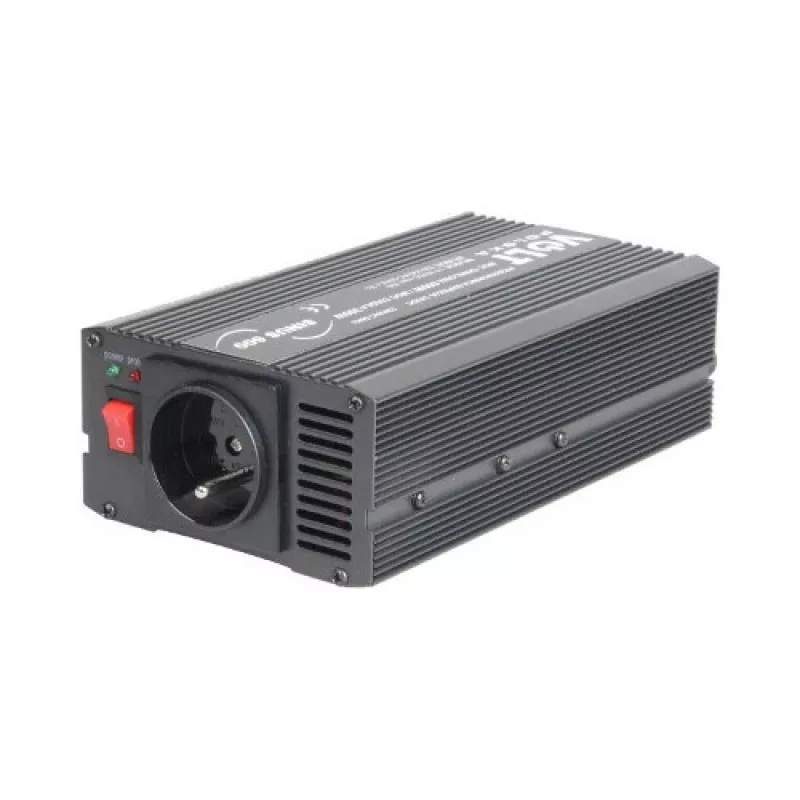

Volt Sinus 600 zuivere sinus omvormer 24V-230V 300W/600W

Volt Sinus 600 is a reliable pure sine wave inverter designed to transform 24V DC from your battery bank into clean 230V AC power. With 300W continuous and 600W peak output, it handles power tools, household appliances, and sensitive devices with perfect sine wave integrity.

Advantages

Pure sine wave output protects sensitive electronics such as laptops, medical devices, and audio equipment from distortion and overheating. The intelligent cooling fan adjusts speed based on load, minimizing noise and extending lifespan. Comprehensive protection circuits guard against overload, short circuit, over-temperature, under/over-voltage, and reverse polarity, ensuring safe operation in demanding conditions.

Suitable for

• Caravan and boat power systems
• Mobile workshop tools
• Backup power for household appliances
• Off-grid solar installations

Key specifications

• Input voltage: 24V DC (21-30V range)
• Output voltage: 230V AC pure sine wave
• Continuous power: 300W, Peak power: 600W
• Output frequency: 50Hz
• USB output: 5V / 1A

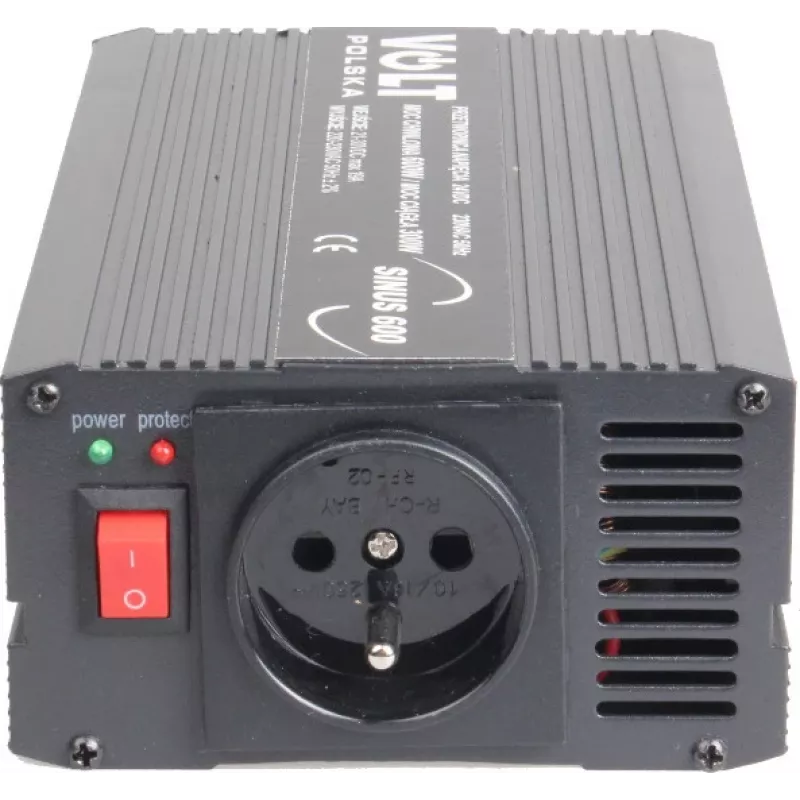

• AC socket: 1x Schuko (Type F)
• Protection: Overload, short circuit, over-temperature, low/high voltage, reverse polarity
• Efficiency: >92%
• Operating temperature: -10°C to +40°C
• Certification: CE, RoHS

Recommendations

For optimal performance, connect the inverter directly to a 24V battery with appropriate cable gauge. Do not exceed the 300W continuous load; occasional peaks up to 600W are acceptable. Ensure adequate ventilation around the unit.
