Wirewin Pro 3e generatie 4U wandbehuizing 600x600mm Flat-Pack lichtgrijs WCAB PS3 600X600X4U FP

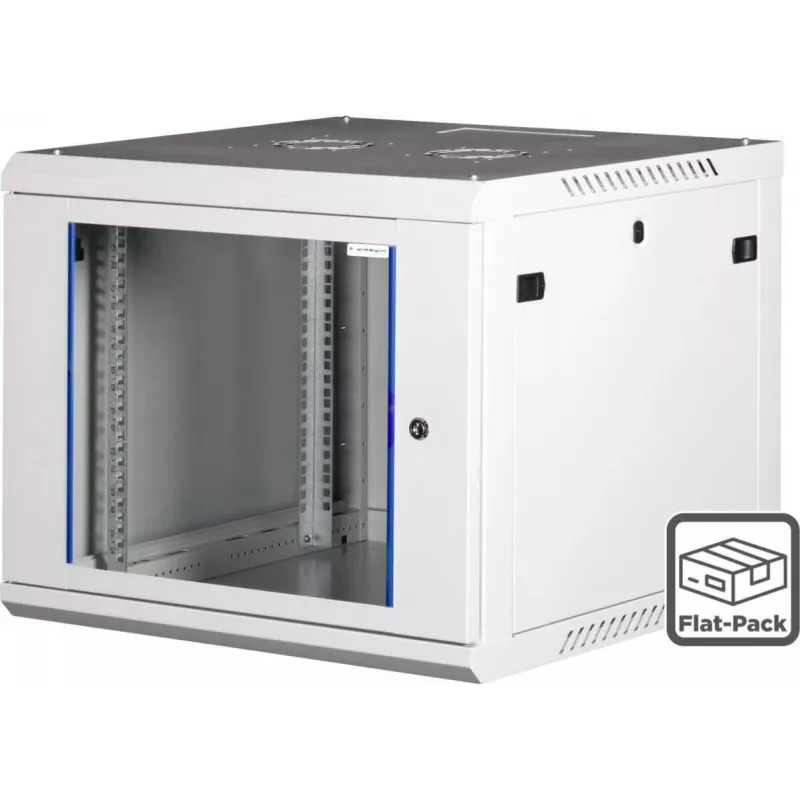

This 4U wall-mount cabinet from Wirewin's Pro 3rd Generation series arrives flat-packed for easy self-assembly, saving storage space and shipping costs. Its 600x600mm footprint accommodates standard 19-inch equipment while the tempered glass front door with key lock keeps your hardware secure.

Highlights

• 4U rack capacity for compact network installations
• Flat-pack design reduces shipping volume and allows on-site assembly
• Lockable tempered glass front door protects equipment from unauthorized access
• Removable side panels provide easy access during installation and maintenance
• Top and bottom cable entry with brush strips keeps cabling organized
• Passive ventilation via perforated top and bottom panels
• Light grey (RAL 7035) finish blends into office environments

In daily use

The cabinet supports up to 60 kg of equipment and includes adjustable mounting rails for flexible depth positioning. Its IP20 rating suits indoor use, and the steel construction ensures durability. The flat-pack format means you can carry it through narrow doorways and assemble it directly at the installation site.

Full specifications

• Rack type: Wall-mount cabinet
• Rack units: 4U
• Rack standard: 19 inch
• External dimensions (WxDxH): 600 x 600 x 230 mm
• Colour: Light grey (RAL 7035)
• Material: Steel
• Front door: Tempered glass, lockable
• Side panels: Removable
• Cable entry: Top and bottom with brush strips
• Maximum load capacity: 60 kg
• Protection rating: IP20
• Ventilation: Passive (perforated top/bottom)
• Product series: Pro 3rd Generation

Final note

Ideal for small network closets, branch offices, or industrial control rooms where space is limited but security and organization are essential.
