Zalman Z8 TG ATX Mid Tower PC-behuizing, ARGB-ventilator x3, T/G Midi Tower zwart

Z8 MS
ATX MID TOWER COMPUTER CASE

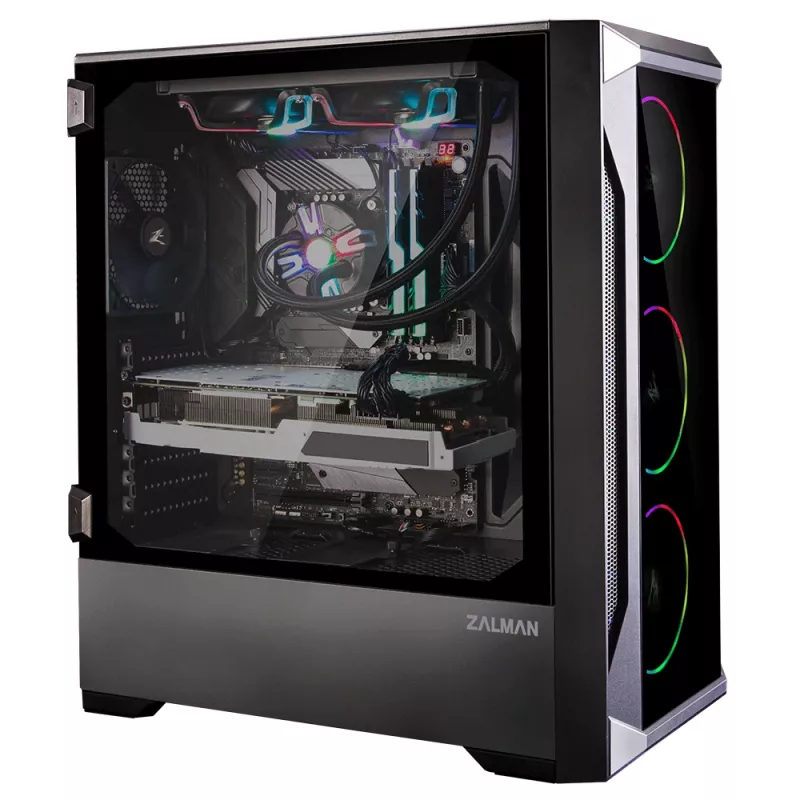

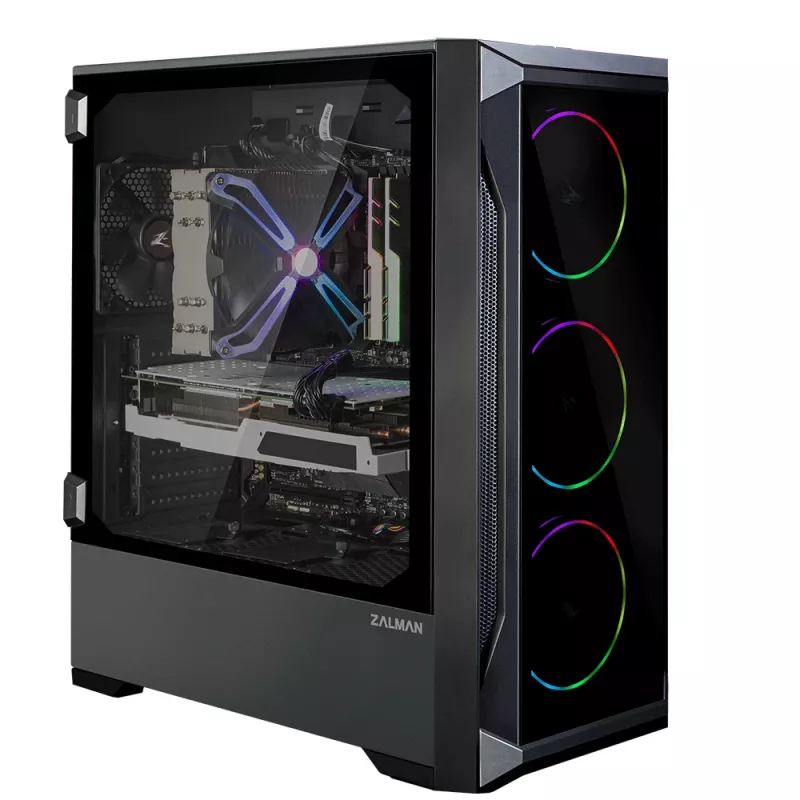

Easy-to-use Hinged Glass Side Panel & Tempered Glass
An edgeless premium tempered glass side panel of 3mm
provides a panoramic view of your system

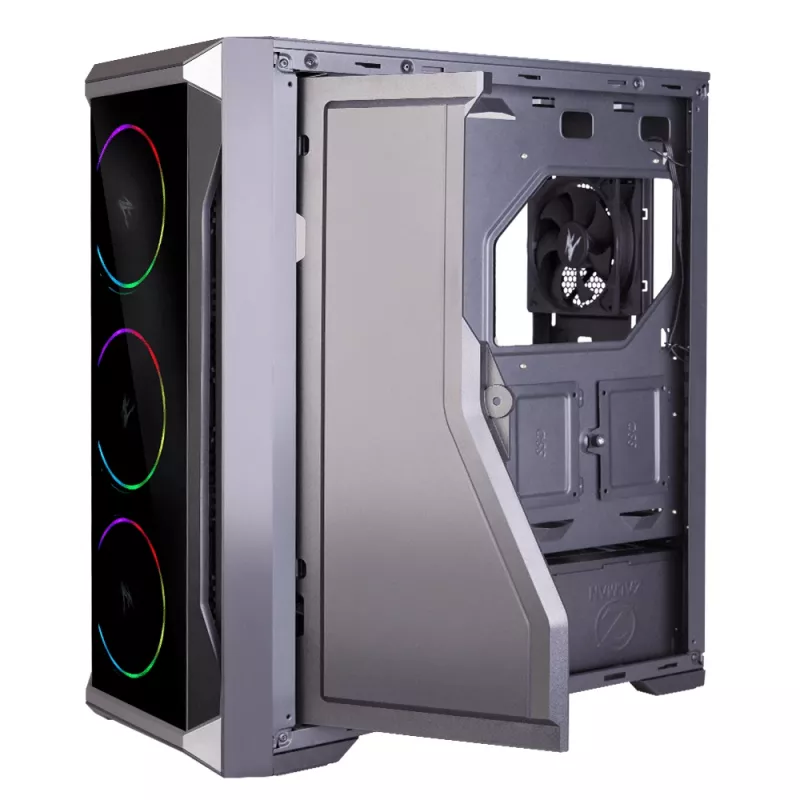

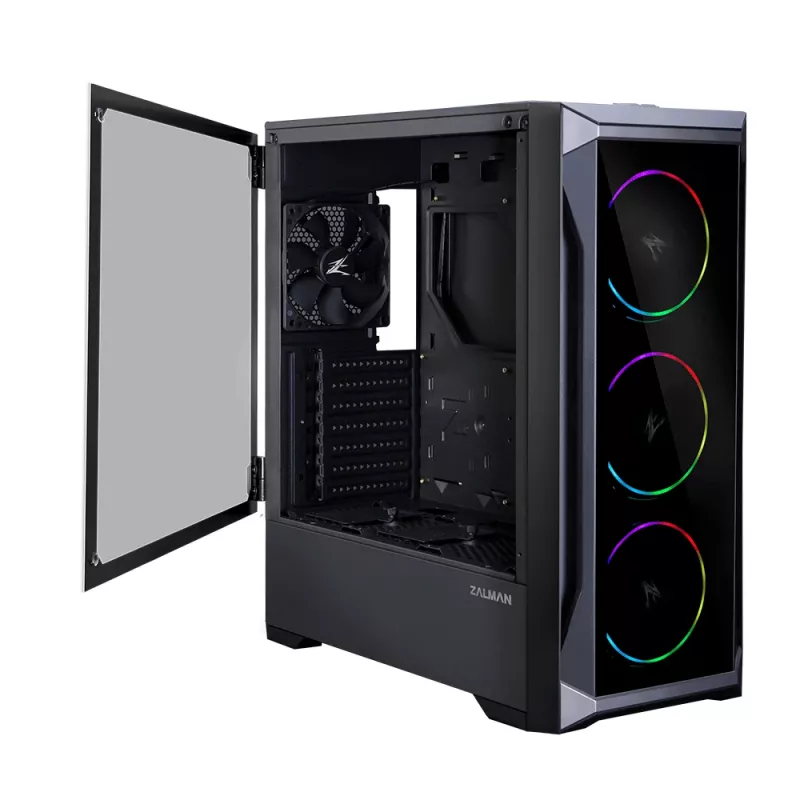

Hinged glass panel provides easy interior access by simply
unscrewing thumb screws

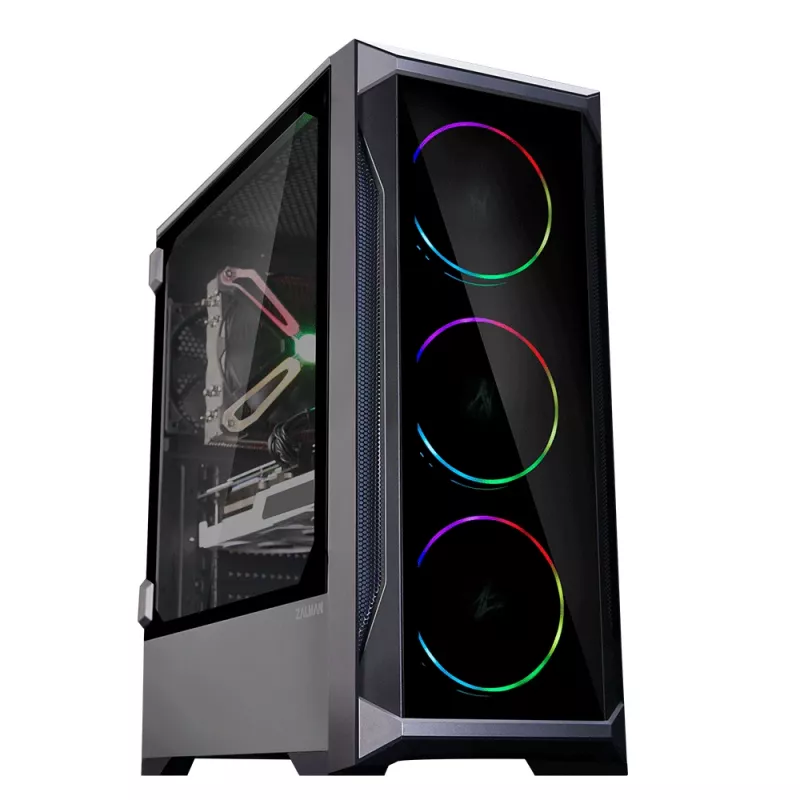

Front Glasspanel & Addressable RGB fans

Easy accessible design on top I/O ports
Convenient I/O layout design offers user’s great experience with 2 of USB 3.0 ports
Power, HDD / Power LED, Headphone Jack, Microphone Jack, USB 2.0 Port, USB 3.0 Port, Reset Button, LED Button for various LED lighting mods

Top magnetic dust filter
Protects your components and provides unobstructed airflow through dust filtration

Bottom dust filter
Protects your power supply from piling up dust

Maximum Airflow and Ventilation
Four pre-installed 120mm RGB fans (Front x 3, Rear x 1) provide quick
heat dissipation from the case and up to 6 fans can be supported

Inner Panel for neat cable management
Designated Inner panel simplifies the cable routing by concealing most of the cables and makes it perfect a cable less look

Addressable RGB LEDs Ready
※ How to control RGB LED
- LED colors & patterns can be changed by pressing the LED Button on I/O ports
- Long pressing on the LED Button for 3 seconds, RGB will be synchronized with motherboard after blinking once in white
Press the LED Button again to desynchronize with motherboard
- Long pressing on the LED Button for 6 seconds, RGB LED will be turn off after blinking twice in white

Excellent Expandability and Convenience
Spacious room available to support even up to E-ATX (~280mm) for high-end system build
Motherboard: E-ATX(~280mm) / ATX / mATX / Mini-ITX

Tool-free design allows easy removal of each part without tools for your convenience
CPU Cooler Max Height: 160mm
HDD/SSD: 2 x Combo (3.5” or 2.5”)
VGA Card Maximum Length: 350mm
PSU Max Length: 180mm
SSD: 4 x 2.5”

Fan Support (*Fans included)
Front: *120mm x 3 / 140mm x 3
Top: 120mm x 2 / 140mm x 2
Rear: *120mm x 1

Radiator Configuration
Front : 120mm
Top : 120mm / 240mm / 280mm
Rear : 120mm

Specifications
Model: Z8 MS
Case Form Factor: ATX Mid Tower
Dimensions: 460(D) x 212(W) x 493(H)mm
Weight: 6.3kg
Materials: Steel, Plastic, Tempered Glass
Motherboard Support: E-ATX(~280mm), ATX, mATX, Mini-ITX
Fans Support: Front 3 x 120mm / 3 x 140mm, Top 2 x 120mm / 2 x 140mm, Rear 1 x 120mm
Fan(s) Included: Front 3 x 120mm, Rear 1 x 120mm
Radiator Support: Front 120mm, Top 120mm / 240mm / 280mm, Rear 120mm
Max. VGA Length: 350mm
Max. CPU Cooler Height: 160mm
Max. PSU Length: 180mm
PCI Expansion Slots: 7
I/O Ports: 2 x USB3.0, 1 x USB2.0, 1 x Headphone Jack, 1 x Microphone Jack, Power Button, Reset Button, LED Button
Drive Bays: 2 x Combo (3.5” or 2.5”, Toolless), 4 x 2.5”
Productcode: Z8 TG
