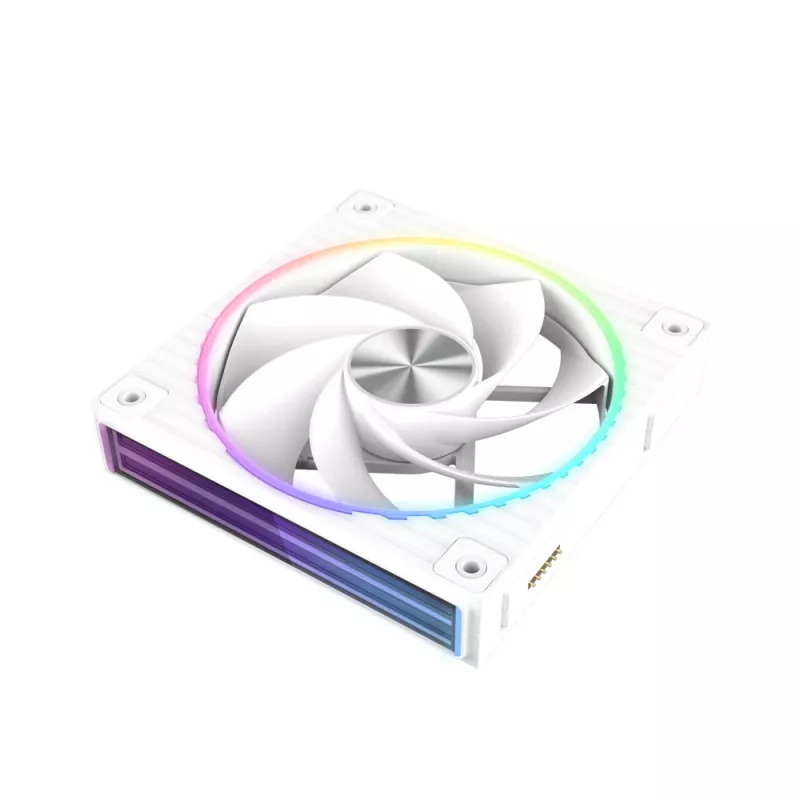

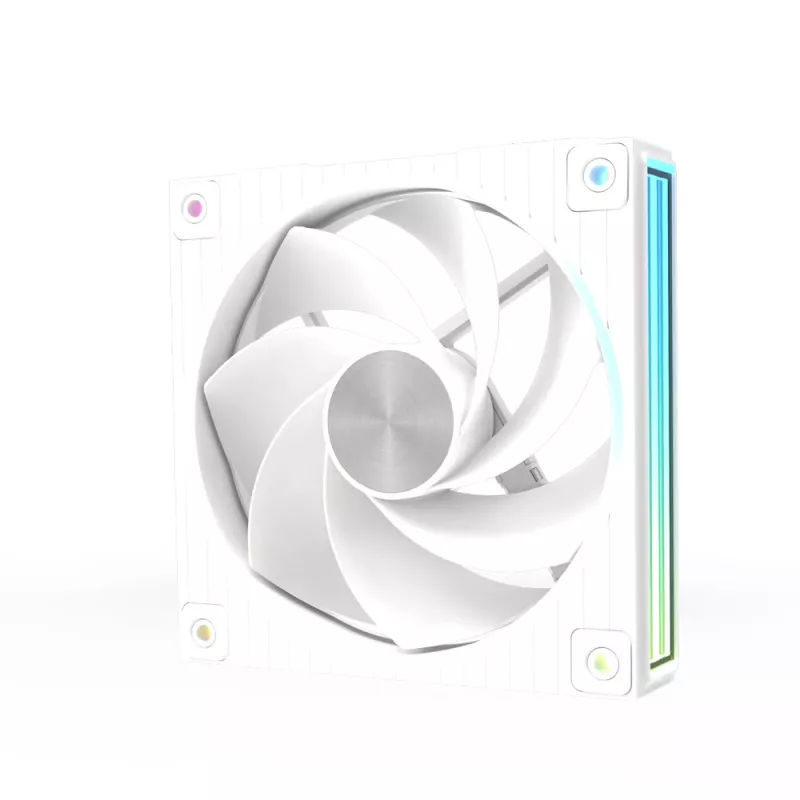

Zalman ZM-DF120R wit 120mm reverse daisy chain ARGB PWM ventilator

120mm reverse blade case fan with daisy chain PWM and ARGB connectivity, delivering high static pressure for radiators and heatsinks. The reverse blade design draws air through the frame for clean intake setups while keeping the lighting visible.

Advantages

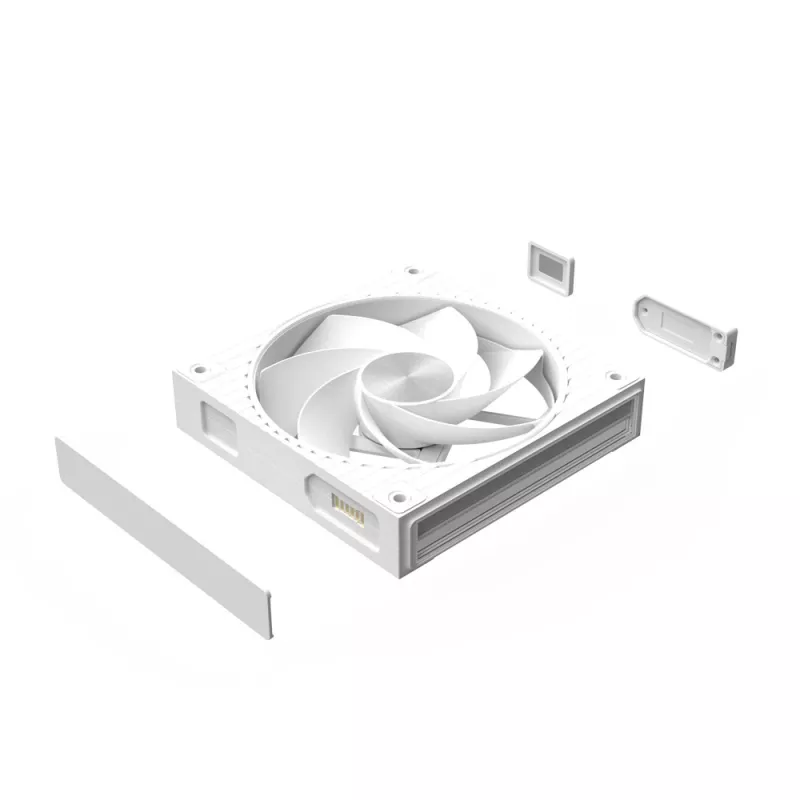

Fluid Dynamic Bearing ensures long life and quiet operation. Daisy chain design simplifies cable management by linking multiple fans on one PWM and ARGB header. Addressable RGB lighting adds customizable aesthetics.

Suitable for

• PC cases with 120mm fan mounts
• Liquid cooling radiators
• CPU air coolers
• Builds requiring high airflow and static pressure

Key specifications

• Fan size: 120mm
• Fan type: Reverse blade
• Bearing: Fluid Dynamic Bearing (FDB)
• Speed: 500–2300 RPM (±10%)
• Max airflow: 68.5 CFM (±10%)
• Max static pressure: 2.0 mmH2O (±10%)
• Noise level: 10–30 dBA (±10%)
• Connector: 4-pin PWM, 3-pin ARGB (5V)
• Rated voltage: 12V (fan), 5V (LED)
• Rated current: 0.15A (fan), 0.30A (LED)
• MTTF: 100,000 hours
• Colour: White

Recommendations

Pair with a PWM fan hub or motherboard with multiple ARGB headers to fully utilize daisy chaining. For optimal cooling, use as intake on radiators or front panels.
