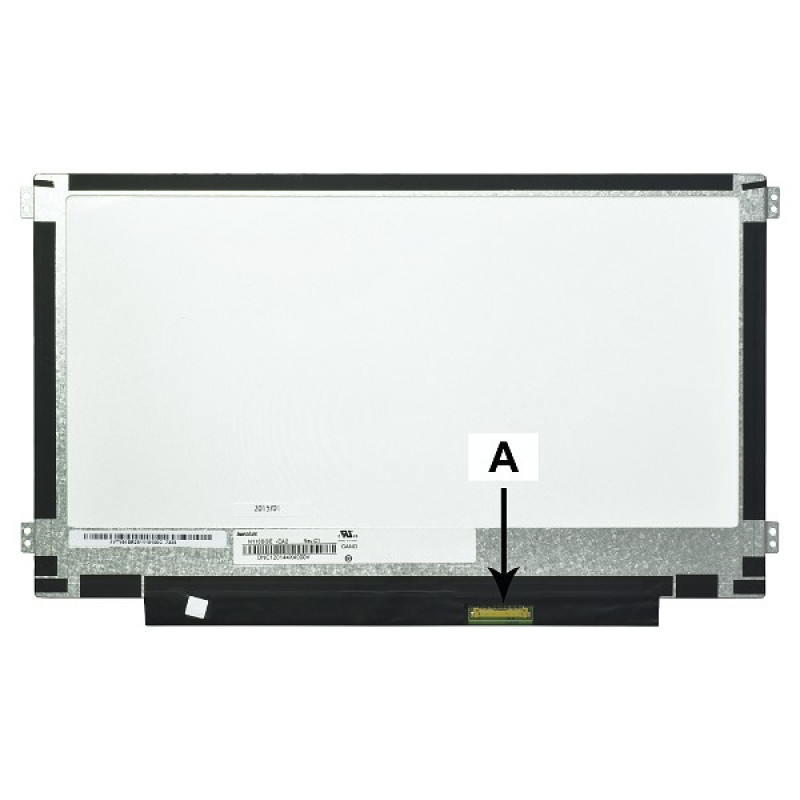

2-power 11,6 1366x768 HD LED mat eDP L/R (2P-MB116AN01-3 V1.1)

For laptops that demand a crisp yet energy-efficient display, this 2-POWER 11.6-inch panel delivers a bright HD picture with a matte finish that keeps reflections at bay. Unlike glossy screens that turn into mirrors under office lights, the anti-glare surface ensures comfortable viewing in varied environments. The eDP interface with a 30-pin connector makes it a straightforward upgrade or replacement for compatible notebooks, while the side brackets allow for secure mounting in left or right configurations.

Highlights

• 11.6-inch LED-backlit screen with 1366x768 HD resolution for sharp text and images
• Matte anti-glare coating reduces reflections and eye strain during long sessions
• 30-pin eDP connector ensures high-speed data transfer and compatibility with modern laptops
• Side mounting brackets (left/right) enable flexible installation in various chassis
• Low power consumption thanks to LED backlight technology, extending battery life
• Wide 16:9 aspect ratio ideal for productivity and multimedia content

In daily use

Whether you are repairing a notebook, upgrading an existing panel, or building a custom portable system, this screen integrates seamlessly. The TN panel offers fast response times (8-12 ms) that keep motion blur minimal during video playback or casual gaming. With a brightness of 200-220 nits and a 45% NTSC color gamut, it delivers accurate colors for everyday tasks. The 60 Hz refresh rate ensures smooth scrolling and fluid cursor movement. The backlight is rated for 10,000 to 15,000 hours, providing years of reliable service.

Full specifications

• Screen size: 11.6 inches
• Resolution: 1366 x 768 (HD)
• Display technology: LED backlight
• Panel type: TN (Twisted Nematic)
• Surface: Matte (anti-glare)
• Aspect ratio: 16:9
• Connector: 30-pin eDP
• Refresh rate: 60 Hz
• Brightness: 200-220 cd/m²
• Response time: 8-12 ms
• Color gamut: 45% NTSC
• Viewing angles: 45/45/20/45 degrees (H/V)
• Backlight life: 10,000 - 15,000 hours
• Mounting: Side brackets (left/right)
• Condition: New
• Compatibility: Universal for laptops requiring 11.6" HD eDP matte panels with 30-pin connector

Final note

This 2-POWER panel combines essential specifications with dependable performance, making it a practical choice for anyone needing a quality 11.6-inch display without unnecessary frills.
