2-power 14,0 inch WUXGA 1920x1200 5MM eDP IPS (2P-0YCR8T)

A cracked or dim laptop display can bring your productivity to a standstill. This 2-Power 14.0-inch WUXGA panel restores your notebook’s visual clarity with a crisp 1920x1200 resolution, vivid IPS colours, and a slim 5mm profile that fits a wide range of compatible models. Whether you’re editing documents, streaming media, or working on detailed spreadsheets, the anti-glare surface and wide viewing angles keep the image readable in bright offices or on the go.

Who is it for

Technicians and DIY upgraders replacing a faulty 14-inch laptop screen will appreciate the straightforward eDP interface and standard 30-pin connector. The panel suits business notebooks, ultrabooks, and general-purpose laptops that require a 16:10 aspect ratio for extra vertical workspace.

Main features

• 14.0-inch WUXGA (1920x1200) IPS panel with LED backlight
• 5mm slim profile with side mounting brackets for easy installation
• eDP 30-pin interface, 60Hz refresh rate, 300 cd/m² brightness
• Wide 170° horizontal and vertical viewing angles
• Anti-glare matte finish reduces reflections and eye strain
• 72% NTSC colour gamut for accurate, vibrant visuals

Specifications

• Screen size: 14.0 inches
• Resolution: 1920 x 1200 (WUXGA)
• Panel type: IPS TFT Active Matrix LCD
• Aspect ratio: 16:10

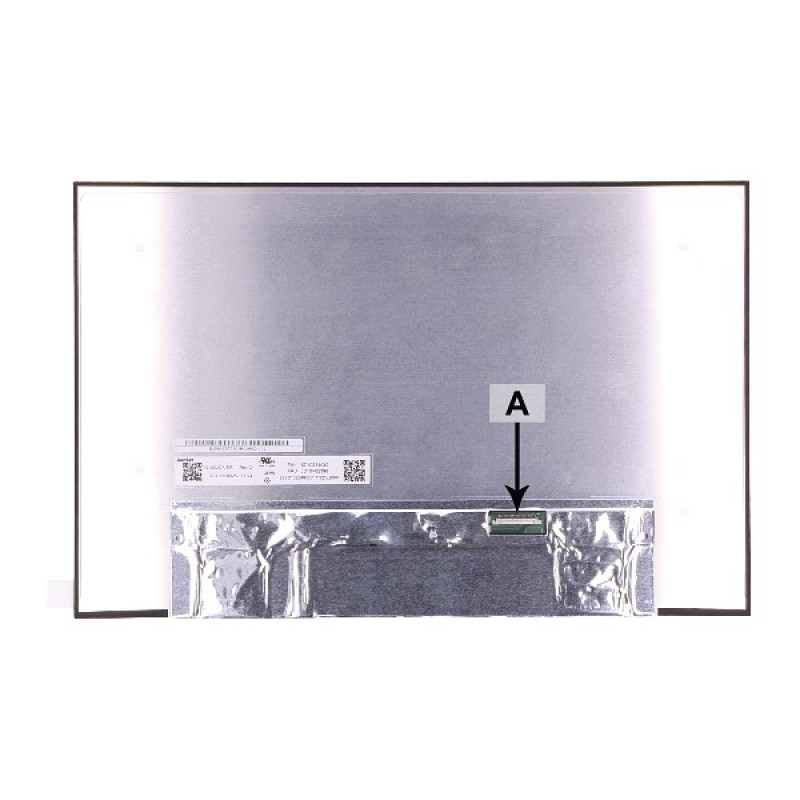

• Interface: eDP, 30-pin connector
• Backlight: LED
• Refresh rate: 60 Hz
• Brightness: 300 cd/m²
• Response time: 25 ms
• Colour gamut: 72% NTSC (approx. 100% sRGB)
• Viewing angles: 170° horizontal / 170° vertical
• Surface: Anti-glare (matte)
• Panel thickness: 5 mm
• Power consumption: 3.5 W
• Mounting: Side brackets / screw holes

Tips

Before ordering, verify your laptop’s exact screen size, resolution, and connector type. The 5mm thickness and side mounting holes are common, but checking the original panel’s part number ensures a perfect fit. Handle the screen by its edges and disconnect the battery before installation to avoid static damage.
