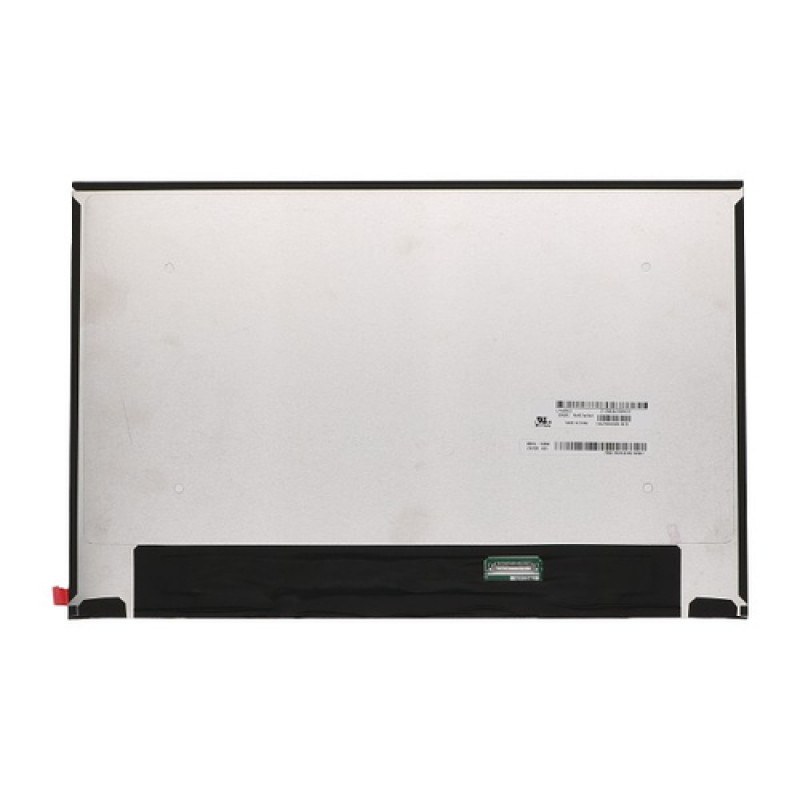

2-power 14,0 inch WUXGA 1920x1200 5MM EDP IPS (2P-B140UAN04.1 0A)

A cracked or dim laptop display can make even simple tasks frustrating. The 2-POWER 2P-B140UAN04.1 0A replaces your faulty 14.0-inch panel with a crisp WUXGA (1920x1200) IPS screen, restoring sharp visuals and wide viewing angles for work or entertainment.

Who is it for

This panel is ideal for laptop owners, IT technicians, and repair shops needing a reliable, high-resolution display upgrade. It fits any compatible 14.0-inch WUXGA eDP laptop, making it a versatile choice for many brands and models.

Main features

• 14.0-inch IPS panel with 1920x1200 WUXGA resolution for detailed images.
• 16:10 aspect ratio provides extra vertical space for documents and web browsing.
• LED backlight delivers consistent brightness up to 300 cd/m².
• eDP 30-pin interface ensures a secure, high-speed connection.
• Matte anti-glare surface reduces reflections in bright environments.
• Slim 5 mm thickness fits ultra-thin laptop chassis.
• Wide 178° viewing angles maintain colour accuracy from any position.

Specifications

• Screen Size: 14.0 inches
• Resolution: 1920 x 1200 (WUXGA)
• Aspect Ratio: 16:10
• Panel Type: IPS (In-Plane Switching)
• Interface: eDP (Embedded DisplayPort), 30-pin
• Panel Thickness: 5 mm (Slim)
• Backlight: LED
• Refresh Rate: 60 Hz
• Surface Finish: Matte (Anti-Glare)
• Viewing Angle: 178°/178° (H/V)
• Brightness: 300 cd/m² (Typical)
• Contrast Ratio: 800:1 (Typical)
• Color Gamut: 45% NTSC (Typical)
• Response Time: 30 ms (Typical)
• Technology: TFT Active Matrix
• Compatibility: Universal for compatible 14.0" WUXGA eDP laptops

Tips

Before ordering, confirm your laptop uses a 14.0-inch WUXGA eDP 30-pin panel with a slim 5 mm profile. Handle the panel by its edges to avoid pressure damage, and test it before final assembly.
