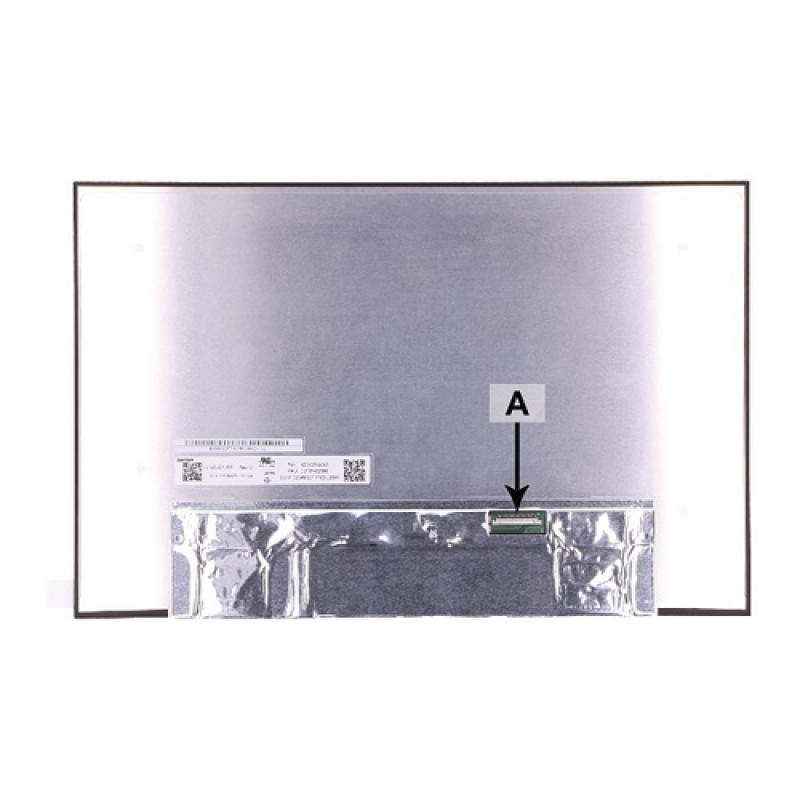

2-power 14,0 inch WUXGA 1920x1200 5MM eDP IPS (2P-LP140WU4(SP)(D1))

Upgrade your laptop's visual performance with this 14.0-inch WUXGA display panel, delivering sharp 1920x1200 resolution on an IPS screen with wide viewing angles and vibrant colors. The panel's slim 5mm profile and eDP interface make it a versatile replacement for many modern laptops.

Advantages

IPS technology ensures consistent color and clarity from almost any angle, while the matte finish reduces glare for comfortable viewing in bright environments. The 16:10 aspect ratio offers extra vertical space, ideal for productivity tasks. With a brightness of 300 nits and a contrast ratio of 1000:1, images appear crisp and detailed.

Suitable for

• Laptop users needing a high-resolution screen replacement with a 30-pin eDP connector
• Professionals who require accurate color representation for design or photo work
• Anyone looking to upgrade from a standard HD panel to a WUXGA display
• Technicians and DIY enthusiasts performing laptop repairs

Key specifications

• Display Size: 14.0 inches
• Resolution: 1920 x 1200 (WUXGA)
• Panel Type: IPS (In-Plane Switching)
• Backlight: LED
• Interface: eDP 30-pin
• Refresh Rate: 60 Hz
• Brightness: 300 cd/m²
• Contrast Ratio: 1000:1
• Viewing Angles: 85/85/85/85 degrees
• Surface: Matte (Anti-Glare)
• Panel Thickness: 5 mm
• Response Time: 25 ms (GtG)
• Power Consumption: Approx. 3.5 W
• Color Gamut: 72% NTSC
• Operating Temperature: 0°C to 50°C
• Pixel Density: Approx. 161 PPI

Recommendations

Before ordering, verify that your laptop requires a 14.0-inch WUXGA panel with a 30-pin eDP connector and a slim 5mm thickness. This panel is compatible with many models; if unsure, consult your device's manual or contact our support team for assistance.
