2-power 14,0 inch WUXGA 1920x1200 5MM EDP IPS (2P-YCR8T)

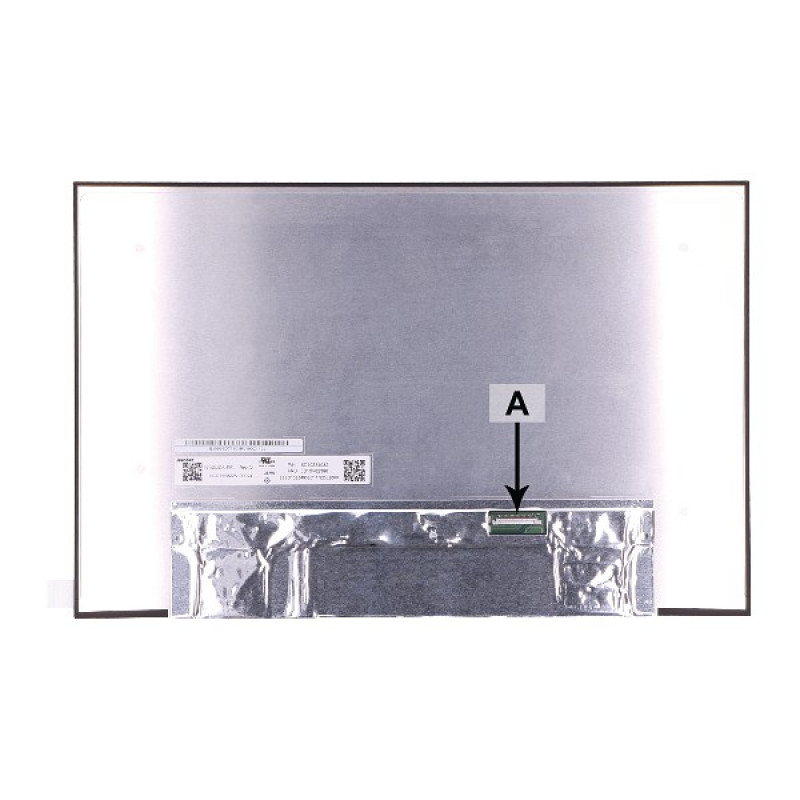

A cracked, dim, or dead laptop screen can bring your work to a halt and make your device unusable. This 14.0-inch WUXGA panel from 2-POWER restores crisp, vibrant visuals with a native 1920x1200 resolution and IPS technology for wide viewing angles. Designed as a direct replacement for laptops that require a slim 5mm eDP 30-pin display, it delivers sharp text, accurate colors, and a comfortable matte finish that reduces glare in bright environments.

Who is it for

This screen is ideal for technicians, IT professionals, and DIY users who need a reliable replacement panel for a 14-inch laptop with WUXGA resolution. Whether you are repairing a business notebook, a student laptop, or a portable workstation, this panel offers a straightforward upgrade or repair solution without compromising on image quality.

Main features

• 14.0-inch IPS panel with 1920x1200 (WUXGA) resolution and 16:10 aspect ratio for extra vertical space.
• LED backlight with 300 cd/m² brightness and 800:1 contrast ratio for clear, vivid images.
• Wide 170° horizontal and vertical viewing angles ensure consistent color from any position.
• Matte (anti-glare) surface reduces reflections and eye strain in bright lighting.
• Ultra-slim 5mm profile and eDP 30-pin connector for compatibility with modern slim laptops.
• 8-bit color depth (16.7 million colors) and 72% NTSC color gamut for accurate, lifelike visuals.
• 60Hz refresh rate and 30ms response time suitable for productivity and multimedia.

Specifications

• Screen Size: 14.0 inches
• Resolution: 1920 x 1200 (WUXGA)
• Aspect Ratio: 16:10
• Panel Type: IPS
• Backlight: LED
• Interface: eDP 30-pin
• Refresh Rate: 60 Hz
• Brightness: 300 cd/m²
• Contrast Ratio: 800:1
• Viewing Angle: 170°(H) / 170°(V)
• Color Gamut: 72% NTSC
• Surface: Matte (Anti-Glare)
• Response Time: 30 ms
• Panel Thickness: 5 mm
• Display Technology: TFT-LCD
• Color Depth: 8-bit (16.7M colors)
• Power Consumption: 3.5 W (typical)
• Mounting: Side brackets (common)

Tips

Before ordering, verify your laptop's original screen size, resolution, connector type (30-pin eDP), and mounting bracket position. Handle the panel by its edges to avoid pressure marks, and test it before final assembly. For best results, use an anti-static mat and disconnect the battery before installation.
