2-power 14.0 WXGA HD 1366x768 LED mat (2P-LP140WH2(TL)(M1))

Replace a cracked or dim laptop display with this 2-POWER 14.0-inch WXGA HD panel. Ideal for technicians refurbishing notebooks or end users restoring a daily driver, the matte LED-backlit screen delivers clear 1366x768 visuals without glare. The 30-pin eDP connector ensures compatibility with a wide range of laptops, and the TN panel offers a fast 8 ms response for smooth video playback.

Key specifications

• Screen size: 14.0 inches
• Resolution: 1366 x 768 (WXGA HD)
• Display technology: LED backlight, TN panel
• Finish: Matte (anti-glare)

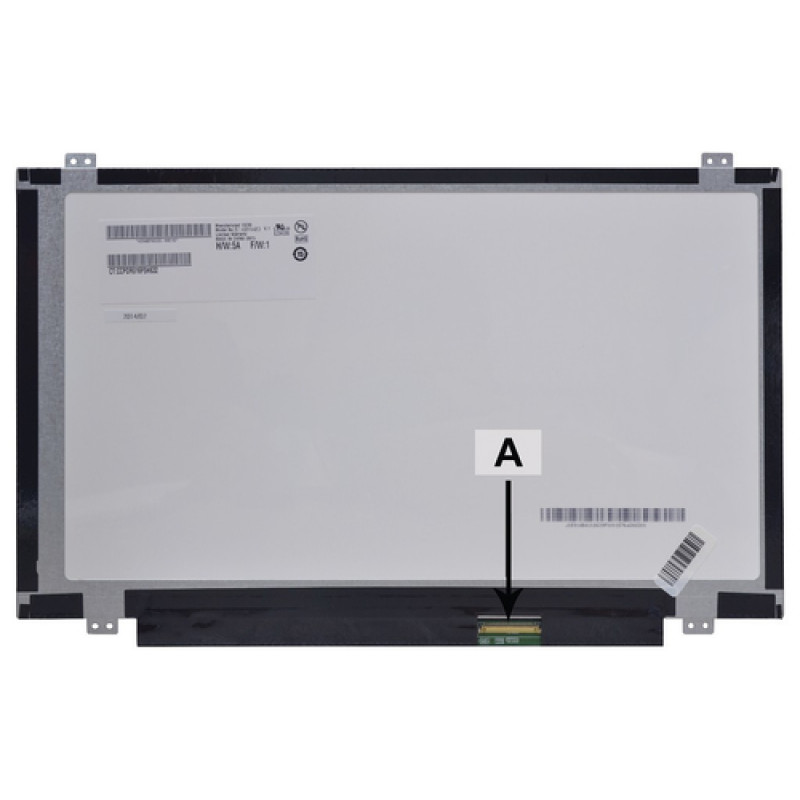

• Connector: 30-pin eDP
• Refresh rate: 60 Hz
• Brightness: 220 cd/m²
• Contrast ratio: 500:1
• Viewing angles: 45°/45°/20°/45°
• Color gamut: 45% NTSC
• Response time: 8 ms
• Power consumption: 4 W typical

Why choose it

This panel is a direct replacement for many 14-inch laptops, offering the same WXGA HD clarity and matte finish as the original. The LED backlight ensures low power draw and long lifespan, while the TN technology keeps costs down without sacrificing everyday performance. With no brackets included, it fits standard mounting frames for a straightforward installation.

Ideal use cases

• Laptop screen repair and refurbishment
• Upgrading from a glossy or damaged display
• Building or modifying portable monitors
• Educational or office environments needing anti-glare screens

Good to know

The 30-pin eDP connector is common in many laptop models, but always verify compatibility with your specific device before ordering. The panel is brand new and comes with no mounting brackets, so reuse the original frame or purchase a compatible one. The matte surface reduces reflections, making it comfortable for long work sessions.
