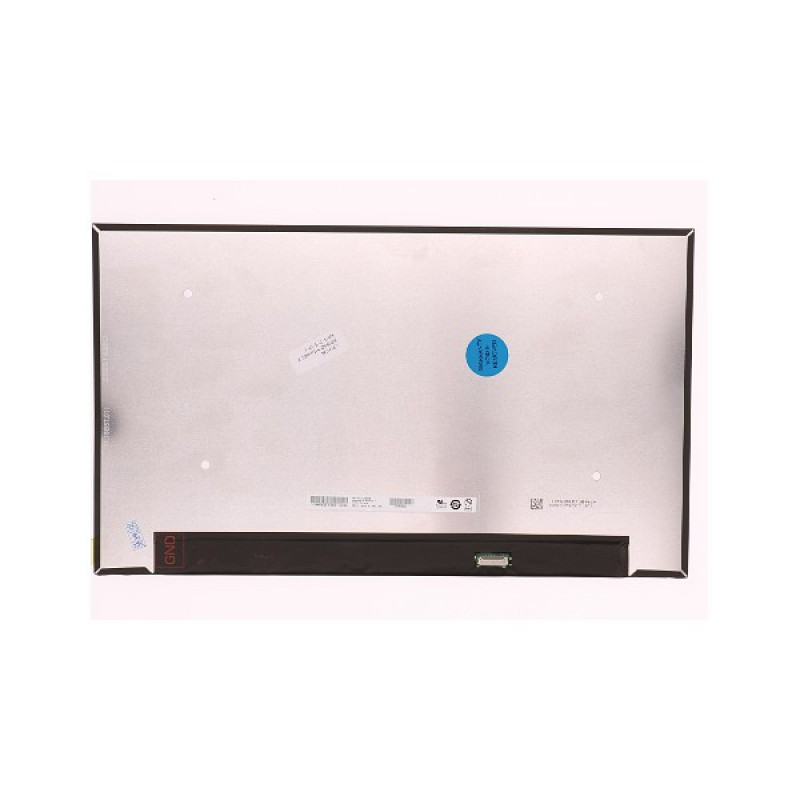

2-power 15,6 1920x1080 FHD 0,4MM pitch (2P-052PTJ)

Upgrade your laptop's visual performance with this 15.6-inch Full HD IPS display panel, delivering crisp 1920x1080 resolution and a fine 0.4 mm pixel pitch for sharp, detailed images. Its LED backlight and matte anti-glare surface ensure comfortable viewing in various lighting conditions, while the 30-pin eDP interface provides a reliable connection to compatible systems.

Advantages

The IPS technology offers wide 85-degree viewing angles from all directions, maintaining color accuracy and contrast even when viewed off-center. With a brightness of 250 cd/m² and a 700:1 contrast ratio, this panel produces vivid visuals and deep blacks. The 45% NTSC color gamut covers essential colors for everyday tasks, and the 25 ms response time is adequate for standard productivity and multimedia use. The matte finish reduces reflections, reducing eye strain during extended sessions.

Suitable for

• Replacing a faulty or damaged 15.6-inch FHD laptop screen
• DIY laptop repair and refurbishment projects
• Users needing a standard 60 Hz display for office work, web browsing, and video streaming
• Systems requiring a 30-pin eDP connector with side mounting brackets

Key specifications

• Display size: 15.6 inches (39.6 cm)
• Resolution: 1920 x 1080 (Full HD)
• Pixel pitch: 0.4 mm
• Panel type: IPS (In-Plane Switching)
• Backlight: LED
• Aspect ratio: 16:9
• Refresh rate: 60 Hz
• Brightness: 250 cd/m²
• Contrast ratio: 700:1
• Viewing angles: 85° (left/right/up/down)
• Color gamut: 45% NTSC
• Response time: 25 ms
• Interface: 30-pin eDP
• Surface finish: Matte (anti-glare)
• Operating voltage: 3.3V
• Mounting: Standard side brackets

Recommendations

Before ordering, verify that your laptop's original screen has the same size, resolution, connector type (30-pin eDP), and mounting position. Professional installation is recommended to avoid damage from electrostatic discharge or improper handling.
