2-power 15,6 inch 1920x1080 FHD LED TN mat (2P-NT156FHM-N63 V3.0)

Unlike generic replacement panels that compromise on clarity or viewing stability, this 2-POWER display is engineered around the exact electrical and mechanical footprint of the original NT156FHM-N63 V3.0 assembly. The 15.6-inch diagonal pairs a native 1920x1080 resolution with a TN (Twisted Nematic) cell, delivering sharp text, accurate colour reproduction for productivity, and a matte anti-glare surface that keeps reflections out of your workflow. Because it uses a standard 30-pin eDP connector positioned bottom-right, installation is straightforward for technicians and confident DIY users alike.

Highlights

• Native Full HD 1920x1080 resolution on a 15.6-inch LED-backlit panel
• TN technology with 8 ms response time for smooth motion and minimal ghosting
• Matte (anti-glare) finish reduces reflections in bright environments
• Frameless design matches modern laptop bezels for a clean look

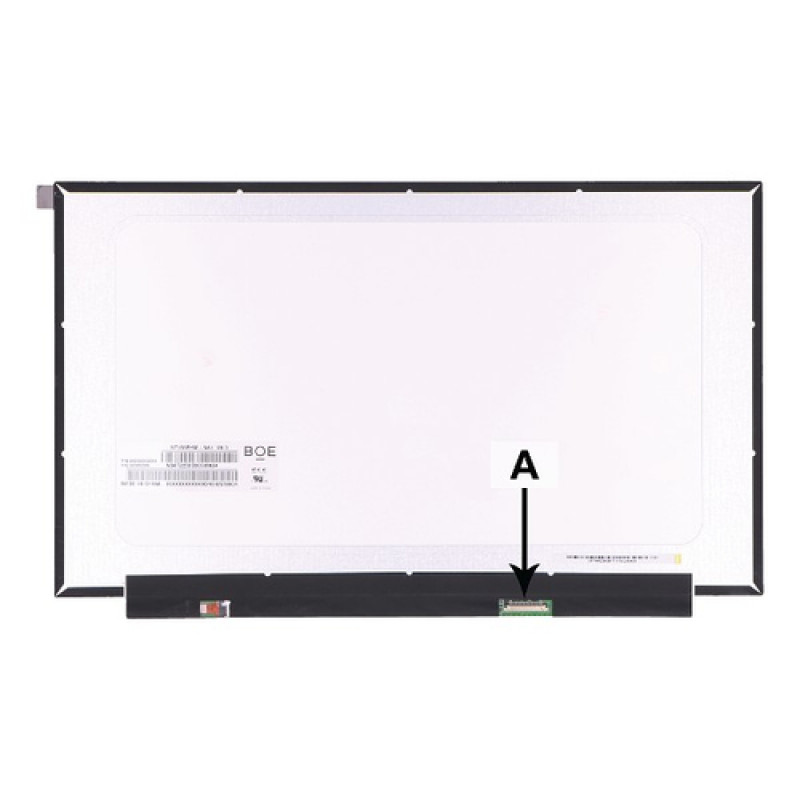

• Standard 30-pin eDP connector, bottom-right orientation
• 220 cd/m² brightness and 500:1 contrast ratio for clear visuals
• 45% NTSC colour gamut suitable for everyday tasks and media
• Low power consumption of approximately 4 W extends battery runtime

In daily use

This panel is a drop-in replacement for laptops that require a 15.6-inch FHD 30-pin eDP TN screen. The matte coating is particularly valuable in offices, classrooms, or anywhere overhead lighting can cause glare. With a 60 Hz refresh rate and 8 ms response time, scrolling documents, browsing, and video playback feel fluid. The viewing angles of 45° left/right, 20° up, and 45° down are typical for TN panels—ideal for single-user viewing where colour shift at extreme angles is not a concern. The backlight is rated for a minimum of 15,000 hours, ensuring long-term reliability.

Full specifications

• Brand: 2-POWER
• Model: 2P-NT156FHM-N63 V3.0
• Screen size: 15.6 inches
• Resolution: 1920 x 1080 (Full HD)
• Display technology: LED-backlit LCD
• Panel type: TN (Twisted Nematic)
• Surface: Matte (anti-glare)
• Aspect ratio: 16:9
• Refresh rate: 60 Hz
• Response time: 8 ms
• Brightness: 220 cd/m²
• Contrast ratio: 500:1
• Viewing angles: 45°/45°/20°/45° (L/R/U/D)
• Colour gamut: 45% NTSC
• Pixel density: ~141 PPI
• Connector: 30-pin eDP
• Connector position: bottom right (facing back of screen)
• Backlight life: 15,000 hours minimum
• Power consumption: ~4 W
• Frame type: Frameless
• Condition: New

Final note

For a reliable, cost-effective way to restore a laptop's display to factory clarity, this 2-POWER panel offers the exact specifications needed for a successful repair. Its matte finish, standard connector, and frameless design make it a practical choice for a wide range of 15.6-inch notebooks.
